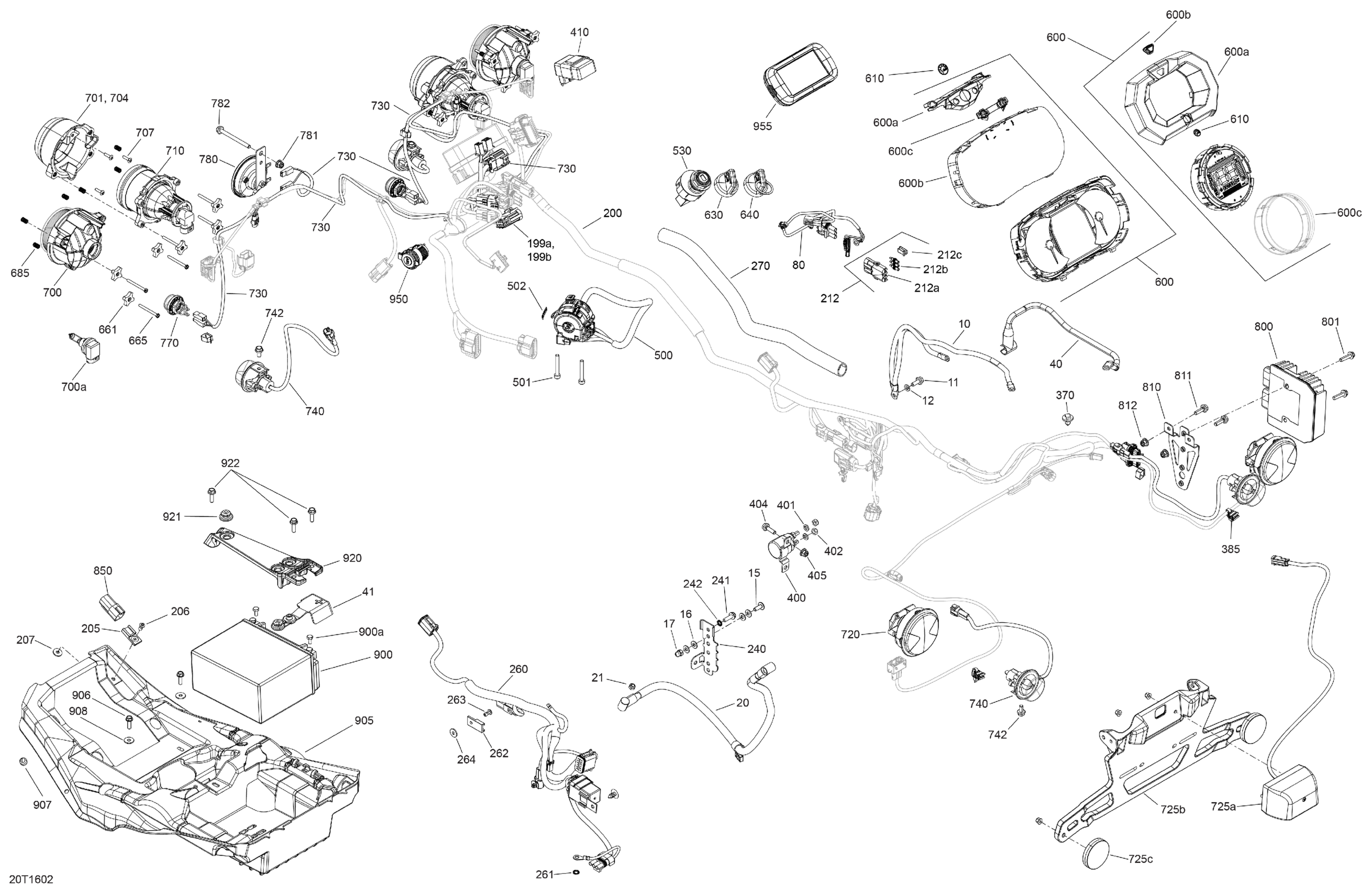

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Electrical All Models Diagram

Ground Cable

710004382

$18.43

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Lock Washer Helical M6

234161601

$0.92

Torx Head Screw M6 X 16

250000717

$1.74

Flat Washer

224061121

$0.44

Domed Nut M6

232361493

$1.77

Positive Cable

710004377

$27.66

Elastic Stop Nut M6

232561414

$1.55

Positive Cable

710004376

$46.12

Battery Cable Cap

710006729

$7.37

Cap

710001225

$7.27

Housing

710001927

$8.57

Main Harness

710005005

$895.35

Tie Wrap 142 mm

293750002

$0.88

Clip

270000141

$8.33

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

Wire Seal

278000216

$2.55

Wire Seal

278000216

$2.55

Clip

710000992

$4.00

Clip

710000992

$4.00

Connector Bracket

710004118

$5.52

Hex. Flange Screw M6 X 20

210262040

$2.06

External Serrated Lock Washer 6 mm

234461608

$0.92

Compressor Harness

710005160

$161.51

External Serrated Lock Washer 6 mm

234461608

$0.92

Clip

270000141

$8.33

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Protective Tubing

710003260

$32.28

Mount Dart

293730040

$0.86

Tie-Rap Clip

710002896

$4.60

Starter Relay

710007777

$46.89

Lock Washer Helical M6

234161601

$0.92

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flasher Unit

710003239

$78.43

Multi-Function Handle

710004040

$166.12

Multi-Function Handle | Except Model-Europe

710004617

$83.05

Socket Head Screw M5 X 35

205053588

$1.56

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Switch | XT, XTP, XMR, LTD,

710002724

$161.51

Winch Switch | XT, XTP, XMR, LTD,

710002724

$161.51

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$9.11

Ignition Switch

710008400

$78.43

Switch_Ignition | Model-Europe

710007865

$69.20

Speedometer Ass'y | DPS, XT

710003923

$470.74

Trim Ring

710002092

$8.98

Button

710001473

$12.68

Lens

415129320

$23.05

Speedometer Ass'y | XTP

710005075

$364.58

Gauge Ring

415129348

$11.71

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

Speedometer Ass'y

710004545

$415.35

Gauge Ring

415129348

$11.71

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

BRP Logo13 mm

704904615

$9.66

Black, Electronic Key

710000817

$55.35

Grey, Electronic Key

710002183

$55.35

Handle

572106600

$9.31

Hex. Screw K40 X 45

250000718

$1.74

Spring

517168600

$6.91

Low Beam | Includes 54 to 55

710006177

$115.35

Bulb 12V 55W

715900141

$41.51

RH High Front Housing

710002291

$27.66

LH High Front Housing

710002292

$23.05

Phillips Screw K40 X 16

250000723

$0.81

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Halogen Bulb

415129249

$39.97

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

License Plate Light | Europe

710005563

$124.58

Plate Support | Europe

708300434

$25.35

Red Reflector

705011221

$12.32

Harness Ass'y | Model-Europe

710004842

$124.58

Flasher | Europe

710002964

$35.14

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Day Light | Europe

710001726

$36.89

Cap Protector | Model-Europe

710003269

$10.98

Horn

710004791

$37.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 70

207667044

$0.70

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

Rectifier Support

710001752

$7.11

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Connector Plug

710004904

$8.55

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Support

710008370

$46.12

Hexagonal Head Screw

210262050

$1.74

Rubber Bumper

293830005

$5.33

Stainless Steel Flat Washer

234062670

$1.74

Retaining Plate

710009129

$7.60

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662054

$0.83

DC Outlet

710001248

$31.17

GPS | LTD North America

710002544

Unavailable
