Partiron

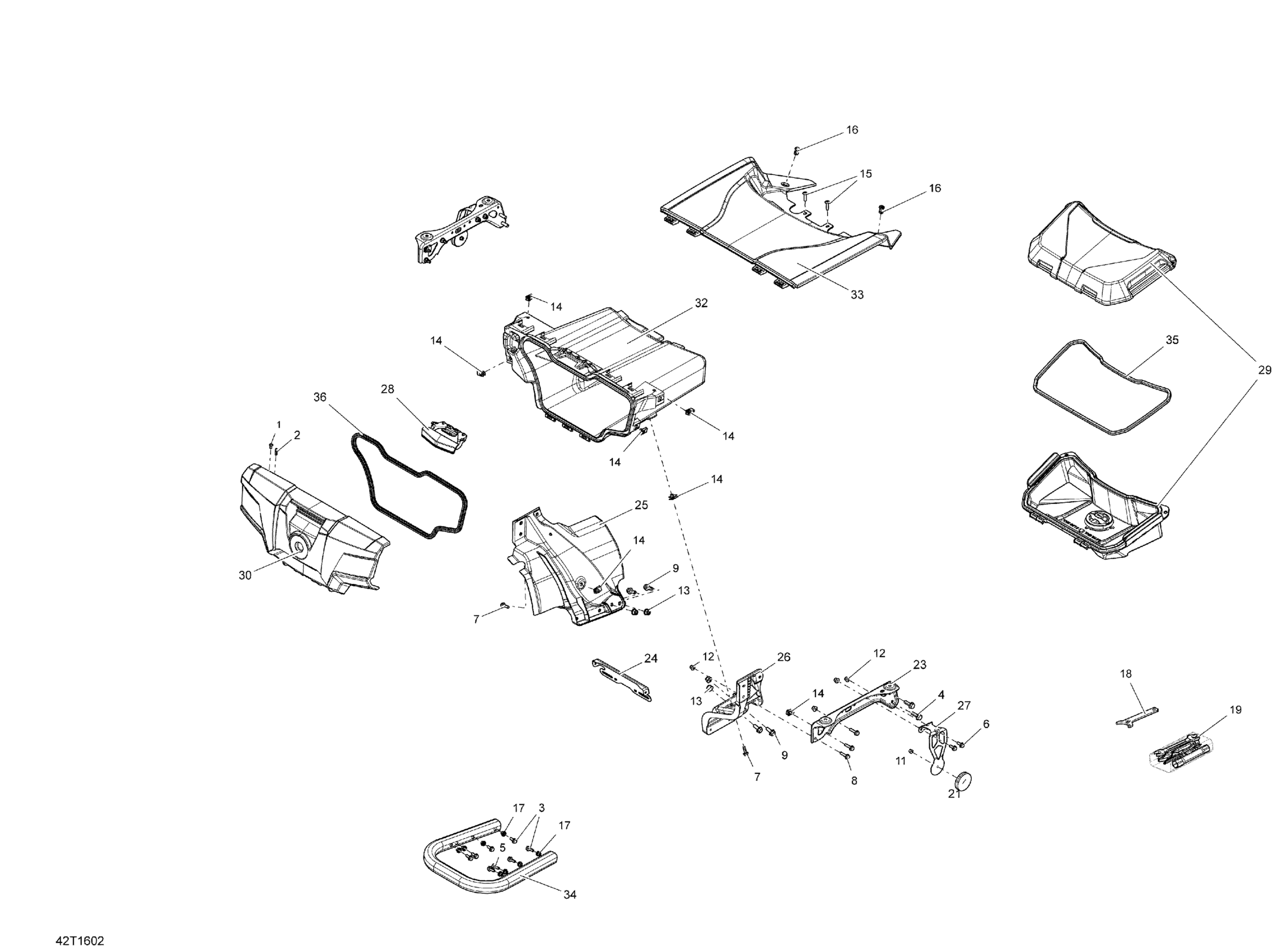

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Rear Cargo Box - All Models Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.38

2

Socket Set Screw M5 X 20 | Europe

206252044

$1.25

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

5

Hex. Flange Screw M6 X 16

207661634

$1.74

6

Hex. Flange Screw M6 X 16

207661644

$0.61

7

Hex. Flange Screw M6 X 20

207662044

$1.66

8

Hex. Flange Screw M6 X 25

207662544

$0.53

9

Hex. Flange Screw M8 X 20

207682044

$0.92

11

Flange Elastic Nut M5

233251434

$1.66

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Panel Nut M6 X 1.0

250100198

$1.73

15

Torx Truss Screw M6 X 25

250000807

$1.74

16

Tuflok Plastic Rivet

293150230

$1.21

17

Threaded Insert M6 X 1.0

250100242

$2.54

18

Adjustment Wrench

529000035

$2.19

19

Tool Kit

704700168

$44.99

21

Red Reflector

705011221

$12.32

23

LH Support

705004563

$28.43

23

RH Support

705004564

$28.43

24

Plate Support

705004806

$14.75

25

LH Cargo Support

705006997

$51.51

26

RH Cargo Support

705006998

$51.51

27

Reflector Support | Except Europe

705202576

$7.11

28

Handle Latch

708201250

$11.54

29

Box Ass'y

708200408

$84.14

30

Rear Panel

708300150

$36.89

32

Rear Storage Box

708300674

$87.66

33

Rear Storage Box Cover

708301212

$50.74

34

Rear Bumper Ass'y

715001564

$55.35

35

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$36.89

36

Was 293200163 Neoprene Seal

219704369

$27.66
