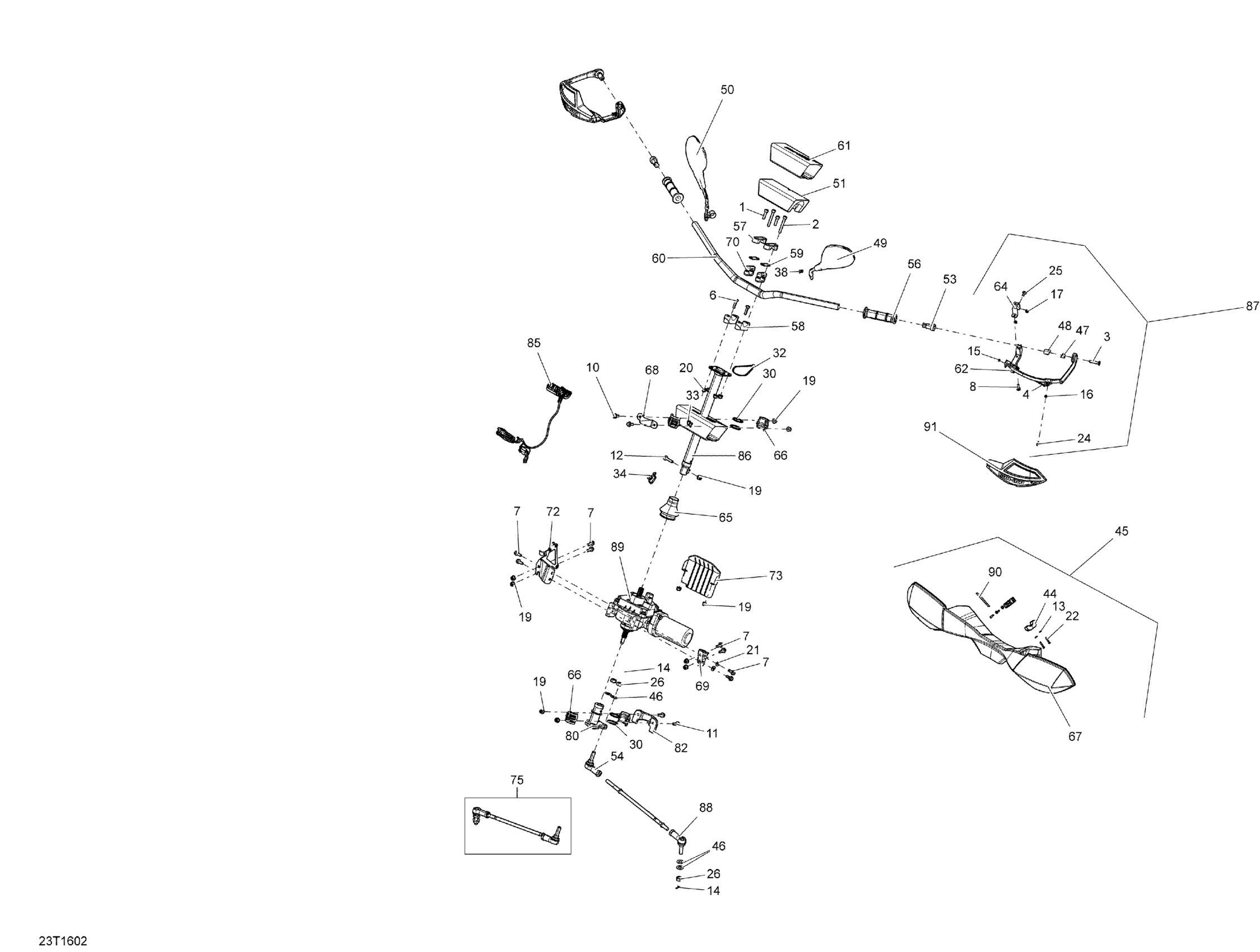

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Steering - All Models Diagram

#

Description
Price

1

Socket Screw M8 X 30

205083060

$2.89

2

Socket Head Screw M8 X 60

205086060

$3.38

2

Hex. Screw M8 X 60

207086046

$2.30

3

Socket Head Screw | X

205384034

$5.19

4

Socket Head Screw M4 X 40 | X

205444086

$1.42

4

Socket Head Screw M4 X 40

205444056

$1.74

6

Hex. Screw M8 X 30

207183060

$1.30

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

8

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Flange Screw M8 X 20

207682044

$0.92

11

Hex. Flange Screw M8 X 25

207682544

$0.90

12

Hex. Flange Screw M8 X 35

207683544

$1.39

13

Flat Washer | XT

211200035

$0.46

14

Cotter Pin

211400013

$0.31

15

Elastic Stop Nut M4

232541414

$0.48

16

Hex. Elastic Nut M5 | X

232551600

$0.91

17

Hex. Elastic Stop Nut M6

232561600

$0.92

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Hex. Elastic Flange Nut M8

233281416

$1.25

21

Conical Spring Washer M8

234281474

$1.25

22

Hex. Flange Screw K40 X 25

241142560

$2.17

24

Torx Screw M5 X 14

250000742

$1.20

24

Torx Screw M5 X 14

250000742

$1.20

25

Torx Head Screw M6 X 16

250000717

$1.74

25

Torx Screw M6 X 16

250000223

$1.74

26

Nut M12

250100099

$1.64

30

O-Ring

293300068

$5.29

32

Tie Wrap 368 mm

293750008

$0.85

33

Tie-Rap 173 mm

293750009

$0.85

34

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$5.94

38

Tie-Rap 180 mm

414115200

$0.09

44

U-Clamp | XT

517303264

$11.09

45

Handle Guard Ass'y, XT

703100352

$91.01

45

Handle Guard Ass'y, LTD

703100357

$85.79

45

Handle Guard Ass'y, LTD

703100357

$85.79

46

Hardened Washer

706200281

$2.34

47

Small Bracket | DS 650 X

709400161

$17.88

48

Large Bracket | DS 650 X

709400162

$17.13

49

LH Mirror | Europe

709400406

$33.55

50

RH Mirror | Europe

709400407

$44.75

51

Foam

709400422

$15.64

51

Foam

709400422

$15.64

53

End Piece

709400449

$7.57

53

End Piece

709400449

$7.57

54

RH Ball Joint

709402302

$34.30

56

Grey, Handle Grip

709400443

$12.76

56

Handle Grip

709400493

$13.82

57

Support

709400496

$23.10

58

Lower Mounting Clamp

709402750

$23.10

59

Stiffner

709400509

$4.30

59

Stiffner

709400509

$4.30

59

Stiffner

709400509

$4.30

60

Black, Handle Bar

709401240

$52.96

60

Black, Handle Bar

709401240

$52.96

60

Manta Green, Handle Bar | Model-REN XXC Digital Camo

709401530

$100.72

60

Red, Handle Bar | Package XMR Engine 1000 Red Model

709401643

$58.93

60

Blue Handle Bar | Package XMR Engine 1000 Blue Model

709401644

$58.93

60

Aluminum Handle Bar

709400513

$58.93

61

Cover

709400939

$22.36

61

Cover

709400939

$22.36

61

Cover | Package-XXC Digital Camo

709402111

$30.57

61

Cover B-337 | Package-XTP

709402415

$55.19

61

Cover | Package XMR Engine 1000 Red Model

709402112

$30.57

62

Air Deflector Support Kit | X

715001378

$131.57

65

Bellows

709400674

$15.64

66

Spherical Half Bushing

709400783

$5.96

67

Handle Bar Protector | XT

709400822

$81.31

68

Upper Column Attachment

709400827

$0.97

70

Steering Support

709400919

$20.12

72

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

73

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

75

Tie Rod Ass`y | Includes 15 to 17

703501038

$89.52

75

Rod-Tie Ass'y | Incl 36

703501037

$102.21

80

Pitman Kit

703500812

$142.51

80

Pitman Kit | Includes 3 to 5

703500785

$142.51

82

Column Attachment

709401428

$35.04

85

GPS Support | LTD Model

710003210

$191.76

86

Kit Tube-Main.

703501137

$162.66

86

Main Tube

709401008

$157.43

87

Air Deflector Support Kit | X

715001378

$131.57

88

LH Ball Joint

709402303

$34.30

89

Power Steering

709401608

$981.01

90

DPS Decal

704902966

$10.55

91

Not Available As Spare Part - Friction Washer

Unavailable

91

Not Available As Spare Part - Friction Washer

Unavailable

91

ORANGE RH DEFLECTOR - Call your local BRP dealership | Package-XTP

709401620

Unavailable

91

ORANGE LH DEFLECTOR - Call your local BRP dealership | Package-XTP

709401621

Unavailable

91

LH DEFLECTOR - Call your local BRP dealership | Xxc

709400617

Unavailable

91

RH DEFLECTOR - Call your local BRP dealership | Xxc

709400616

Unavailable

91

Manta Green, RH Deflector | Package-XMR 1000 Digital Camo

709401622

$33.55

91

Manta Green, LH Deflector | Package-XMR 1000 Digital Camo

709401623

$32.06

91

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

$33.55

91

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

$33.55

91

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

$33.55

91

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

$33.55
