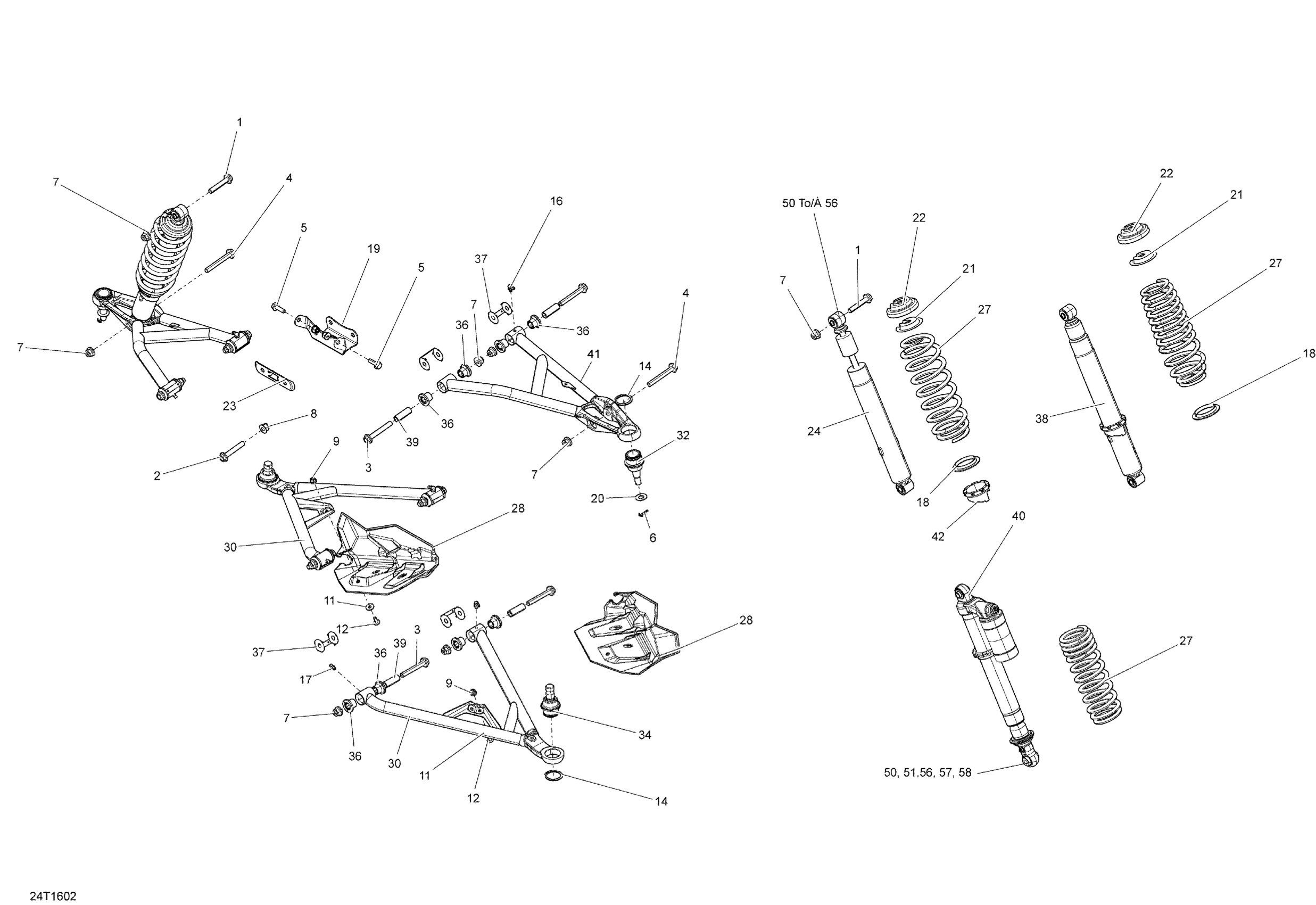

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Front Suspension - All Models Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605546

$1.74

2

Hex. Flange Screw M10 X 60

207606044

$2.78

3

Hex. Flange Screw M10 X 70

207607046

$2.82

4

Hex. Flange Screw M10 X 75

250001038

$5.54

5

Hex. Flange Screw M8 X 25

207682534

$1.03

6

Cotter Pin

211400017

$0.25

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M10

233201434

$1.63

9

Hex. Flange Elastic Nut M6

233261494

$1.26

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Stainless Steel Flat Washer

234062670

$1.74

12

Torx Screw M6 X 16

250000755

$0.72

13

Nut M12

250100099

$1.64

14

Circlip

293370035

$2.48

15

Synthetic Grease, 400 G

293550010

Unavailable

16

Grease Fitting 90°

293550056

$1.04

17

Grease Fitting

408200700

$2.80

18

Spring Guide

503187500

$7.37

19

Upper Front Holder

705203247

$13.09

20

Hardened Washer

706200281

$2.34

21

Cap

706200785

$4.28

22

Spring Stopper

706200881

$10.30

23

Front Suspension Cross Plate

706200998

$4.76

24

Front Shock

706201170

$170.12

24

Shock Absorber | Outlander MAX, DPS, XT

706201243

$170.12

24

Front Shock

706201170

$170.12

24

Shock Absorber | Outlander MAX, DPS, XT

706201243

$170.12

24

Front Shock

706201170

$170.12

24

Front Shock

706201170

$170.12

24

Shock Absorber | Outlander MAX, DPS, XT

706201243

$170.12

24

Shock Absorber | Model XXC, Includes 145a to 145g

706201812

$719.99

27

Black Spring | STD

706201171

$102.21

27

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Outlander MAX, DPS

706201649

Unavailable

27

Black Spring | XT

706202553

$102.21

27

BLACK SPRING - Call your local BRP dealership | Outlander MAX, XT

706201251

Unavailable

27

BLACK SPRING - Call your local BRP dealership | Outlander MAX, XT

706201251

Unavailable

27

BLACK SPRING - Call your local BRP dealership | XTP

706201637

Unavailable

27

-RED SPRING - Call your local BRP dealership | Engine 650 Package XMR

706202364

Unavailable

27

-RED SPRING - Call your local BRP dealership | Engine 850 Package XMR

706202368

Unavailable

27

SPRING_COMPRESSION B-357 PAINTED - Call your local BRP dealership | Package-XMR 1000 Digital Camo

706202643

Unavailable

27

-RED SPRING - Call your local BRP dealership | Engine 850 Package XMR

706202368

Unavailable

27

BLUE, SPRING - Call your local BRP dealership | Package XMR Blue Model

706202371

Unavailable

27

Black Spring | Package PRO

706202424

$93.25

28

LH Joint Protector

706202808

$8.42

28

RH Joint Protector

706202809

$8.42

30

LH Lower Suspension Arm

706204639

$147.73

30

Black, RH Lower Arm

706202870

$147.73

32

Ball Joint

706202044

$34.30

34

Ball Joint

706202045

$34.30

36

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

37

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

38

Shock Absorber | Engine 850 Package XMR

706202489

$306.69

39

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

40

Shock Absorber

706202170

$709.99

41

Black RH Upper Arm

706201797

$147.73

41

Black LH Upper Arm

706201796

$147.73

42

Adjustment Cam

505073625

$11.82

50

O-Ring Bushing

715900209

$12.49

50

O-Ring Bushing

715900209

$12.49

51

Interior Bushing | XTP

715900210

$13.58

51

Interior Bushing | XTP

715900210

$13.58

52

Bushing | XTP

706201648

$12.72

53

Bushing Sleeve | XTP

706201585

$29.82

54

Bushing Sleeve | XTP

706201586

$29.82

55

Spherical Bearing

715900251

$73.85

56

Retaining Ring

715900252

$10.24

56

Retaining Ring

715900252

$10.24

57

Ball Journal

715900336

$79.07

58

Protector

715900331

$12.49
