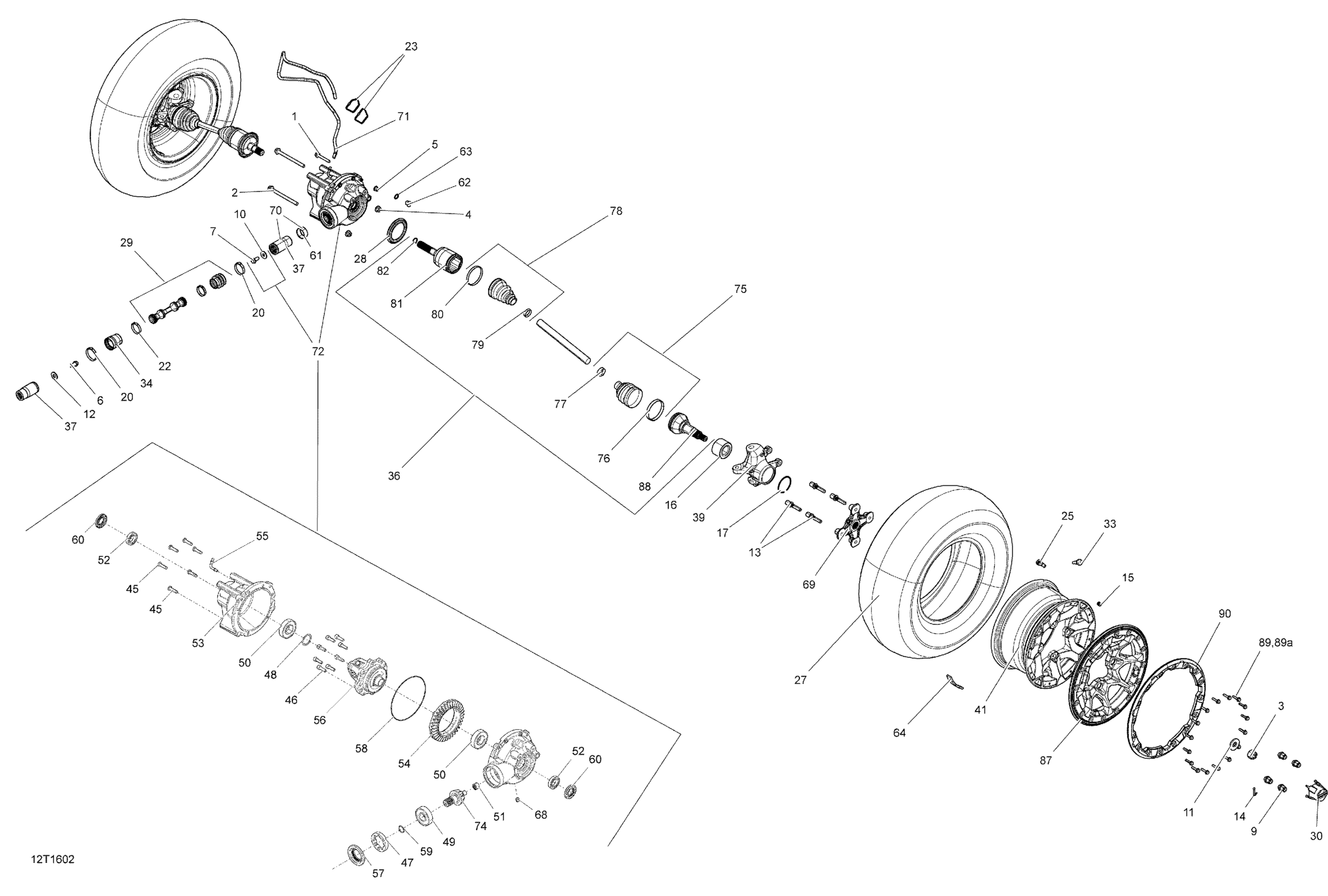

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Drive System, Front - All Models Diagram

Hex. Flange Screw M8 X 55

207685544

$4.41

Hex. Flange Screw M10 X 125

230602546

$6.08

Hex. Flange Castellated Nut M18

232291413

$2.82

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex Flange Screw M12 X 20

250001042

$1.56

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

Steel Wheel Nut

250100042

$3.07

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.15

Black, Wheel Nut M10 X 1.25

250100184

$3.54

Flat Washer M10 | 4X4

250200014

$1.17

Conical Spring Washer M18

250200171

$5.28

Flat Washer M12

250200102

$1.74

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Cotter Pin

250400071

$1.74

Valve Cap

293000110

$1.15

Ball Bearing

293350150

$50.34

Circlip

293370019

$4.68

Synthetic Grease, 400 G

293550010

Unavailable

SYNTHETIC GEAR OIL, 75W90, 12 X 32 OZ - Call your local BRP dealership

293600043

Unavailable

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

Oetiker Gear Clamp

293650199

$7.16

Tie-Rap 180 mm

414115200

$0.09

Rim Valve With Cap

705400193

$6.49

Tire | STD

705401331

$143.25

Front Tire | STD EURO

705401332

$143.25

Tire | XT

705401333

$129.82

Front Tire | XT, Red, Yellow, Green, EURO

705401334

$129.07

TIRE_28X8R12 F - Call your local BRP dealership

705401391

Unavailable

TIRE_30X9R14 - Call your local BRP dealership

705400962

Unavailable

Tire 26X8B12 | Package PRO International

705402972

$129.82

Front Tire | Package PRO Europe

705401737

$129.82

Wear Sleeve

705400780

$6.73

Propeller Shaft | Includes 1 to 2

705400913

$195.49

Wheel Cap

705400928

$6.30

Wheel Cap

705400928

$6.30

Wheel Cap

705401318

$20.12

Rim Valve With Cap

705400193

$6.49

Rubber Boot

705401093

$5.00

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$226.84

RH Front - Premium CV Axle

705401116

$226.84

RH Front - Premium CV Axle

705401428

$226.84

LH Front - Premium CV Axle

705401429

$226.84

Performance CV Axle - Front Right

705401703

$255.94

Performance CV Axle - Front Left

705401704

$255.94

Front Bushing Shaft Kit | 4X4

703500678

$101.46

LH Knuckle

705403307

$167.13

RH Knuckle

705403308

$167.13

Black, Rim

705401371

$97.73

Silver Front Rim | STD

705401088

$174.60

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

$155.19

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

$155.19

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

$155.19

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

$155.19

Black, Rim | XT

705401420

$174.60

Black, Rim | XT

705401420

$174.60

Black, Rim | XT

705401420

$174.60

Black, Rim | XXC

705401678

$260.99

Black, Rim | XT

705401420

$174.60

Matte Black Rim

705401552

$146.24

Screw | 4X4

705401601

$8.67

Screw | After May 30, 2014

705401602

$5.52

Nut | 4X4

705401603

$33.55

Shim | 4X4

705401604

$51.46

Ball Bearing | After May 30, 2014

705401605

$29.82

Ball Bearing | 4X4

705401606

$47.73

Ball Bearing | After May 30, 2014

705402848

$44.75

Ball Bearing | After May 30, 2014

705401608

$47.73

Front Cover | After May 30, 2014

705401610

$134.30

Gear 36 Teeth | After May 30, 2014

705401612

$364.15

Vent Valve | After May 30, 2014

705401613

$13.43

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

Differential | Package-STD

705402184

$977.49

Shim

705401769

$6.30

Shim

705401770

$6.30

Oil Seal | After May 30, 2014

705401615

$17.88

Seal | After May 30, 2014

705401616

$12.94

O'Ring | After May 30, 2014

705401617

$6.69

Gasket | 4X4

705401618

$17.13

Wear Ring | 4X4

705400036

$24.60

Wear Ring | 4X4

705400036

$24.60

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

1/2 Oz Weight

219704465

$4.22

Front Pinion Cover | After May 30, 2014

705401792

$134.30

Drain Plug | After May 30, 2014

705501885

$11.93

Wheel Hub

705501900

$123.10

Front Bushing Shaft Kit | 4X4

703500678

$101.46

Polyurethane Hose 10000Mm Long

219704410

$46.12

Front Differential | Includes 8 to 31

703500907

$1,410.42

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,603.70

Pinion 10 Teeth | After May 30, 2014

705402841

$194.75

Boot Kit, Wheel Side

705401345

$39.52

Boot Kit, Wheel Side

705401354

$39.52

CV Boot Kit, Wheel Side

715900298

$39.52

Oetiker Clamp, Large

715900260

$7.84

Oetiker Clamp, Large

715900262

$7.84

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Small

715900283

$4.39

Oetiker Clamp, Small

715900317

$9.90

Boot Kit, Differential Side

705401346

$39.52

Boot Kit, Différential Side

705401355

$39.52

CV Boot Kit, Differential Side

715900299

$39.52

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

Oetiker Clamp, Small

715900317

$9.90

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

Oetiker Clamp, Large

715900284

$4.39

Oetiker Clamp, Large

715900318

$9.90

RH Plunging Joint

705401348

$240.27

LH Plunging Joint

705401350

$240.27

RH Plunging CV Joint

715900300

$241.01

LH Plunging CV Joint

715900301

$241.01

RH Plunging CV Joint

715900395

$240.27

LH Plunging CV Joint

715900396

$240.27

Circlip Joint | Not shown

705401349

$5.10

Orange Reinforcement Disk | Package-XTP North America

705401811

$79.79

CV Joint

705401344

$241.01

CV Joint

705401407

$241.01

CV Joint

715900297

$241.01

Hex. Flange Screw M6 X 25

250000787

$1.83

Insert | XXC

293450317

$6.49
