Description

Price

1

Hex. Flange Screw M10 X 20

207502046

$1.74

2

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

4

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

5

Hex.Flange Screw M5 X 20

207652044

$1.56

6

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

7

Hex. Flange Screw M8 X 55

207685544

$4.41

8

Carriage Bolt, M8 X 20

207782044

$1.56

9

Hex. Flange Screw M6 X 10

210261040

$1.25

10

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

11

Flat Washer

224060201

$1.12

12

Hex. Flange Elastic Nut M10

233201436

$1.74

13

Flange Elastic Nut M5

233251434

$1.66

14

Flange Elastic Nut M5

233251434

$1.66

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Flat Washer 10 mm

234001410

$0.98

18

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

19

Not Available As Spare Parts

XXX

Unavailable

20

Panel Nut M5 X 0.8

250000958

$3.48

21

Torx Screw M5 X 20

250000724

$1.39

23

Torx Screw M6 X 16

250000755

$0.72

24

Torx Screw M5 X 20

250000792

$1.74

25

Shoulder Screw M10

250000513

$5.54

26

Washer M5

250200025

$0.61

27

O-Ring

293300144

$3.79

28

Not Available As Spare Parts

XXX

Unavailable

30

Clamp

293650219

$0.81

31

Clamp

293650220

$0.81

32

Tie Wrap 368 mm

293750008

$0.85

33

Deep Black, Brake Pedal

705602163

$138.03

34

Tie Rap, 533 mm

293750047

$1.84

36

Bushing

293900112

$9.30

37

Pop Rivet 3/16"

390406500

$0.70

38

Grommet

414036300

$2.22

39

Tie-Rap 180 mm

414115200

$0.09

40

Brake Switch

705601250

$55.19

40

Brake Switch

705601251

$47.73

41

LH Front Hose

705601520

$41.76

42

RH Front Hose

705601521

$41.76

43

LH RH Front Hose

705601519

$162.66

44

Tubing 10 MM 1000MM Long

219704407

$2.20

45

Brake Pedal Bracket

705202000

$35.04

46

Copper Washer

705601628

$4.21

47

Clamp

293650256

$4.36

48

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

49

Brake Pedal Spring

705600792

$8.42

50

Rear Master Cylinder | Includes 21 to 23

705601273

$241.76

50

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$206.69

51

Oil Tank

705601020

$35.79

52

RH Rear Brake Caliper | Includes 41 to 45

705602190

$213.40

52a

Pin Set

705601016

$9.26

52b

Bleeding Screw

705601017

$5.90

52c

Retaining Spring

705601018

$7.55

52d

RH Organic Brake Pad Kit

705601014

$39.52

54

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$214.15

54a

RH Organic Brake Pad Kit

705601014

$39.52

54b

Pin Set

705601016

$9.26

54c

Bleeding Screw

705601017

$5.90

54d

Retaining Spring

705601018

$7.55

55

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$214.15

55a

Pin Set

705601016

$9.26

55b

Bleeding Screw

705601017

$5.90

55c

Retaining Spring

705601018

$7.55

55d

LH Organic Brake Pad Kit

705601015

$39.52

56

LH Front Master Cylinder | Includes 11 to 14

705601430

$228.33

56a

Lever Set

705601013

$57.43

56b

Clamp And Screw Kit

507032477

$22.36

56c

Cap Set

219800096

$20.12

57

LH Deflector

705601214

$23.10

58

RH Deflector

705601215

$23.10

59

Banjo Bolt

705600958

$6.73

60

Hose Guard

705601893

$4.19

61

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

62

Outlet Hose, Master Cylinder

705601518

$64.90

63

Brake Handle Line | Includes 17 to 18

705600967

$44.75

67

Inlet Hose, Master Cylinder

705600973

$58.93

70

Front Hose Bracket

705600983

$11.81

71

Splitter

705600994

$142.51

72

Disc Brake

705600999

$83.55

74

LH Hose Bracket

705601048

$4.19

75

RH Hose Bracket

705601049

$4.19

76

Bleeding Screw

705601051

$10.97

78

Brake Line Ass'y

705601002

$35.79

78

Brake Line Ass'y

705601002

$35.79

78

RH Brake Line | Except Europe

705601077

$44.00

78

RH Brake Line

705601078

$55.19

78

RH Brake Line

705601078

$55.19

78

RH Brake Line | Includes 24 to 25

705601005

$43.25

79

Not Available As Spare Parts

XXX

Unavailable

80

Oil Housing Hose

705601019

$14.43

81

Flat Washer 6 mm

234062410

$0.64

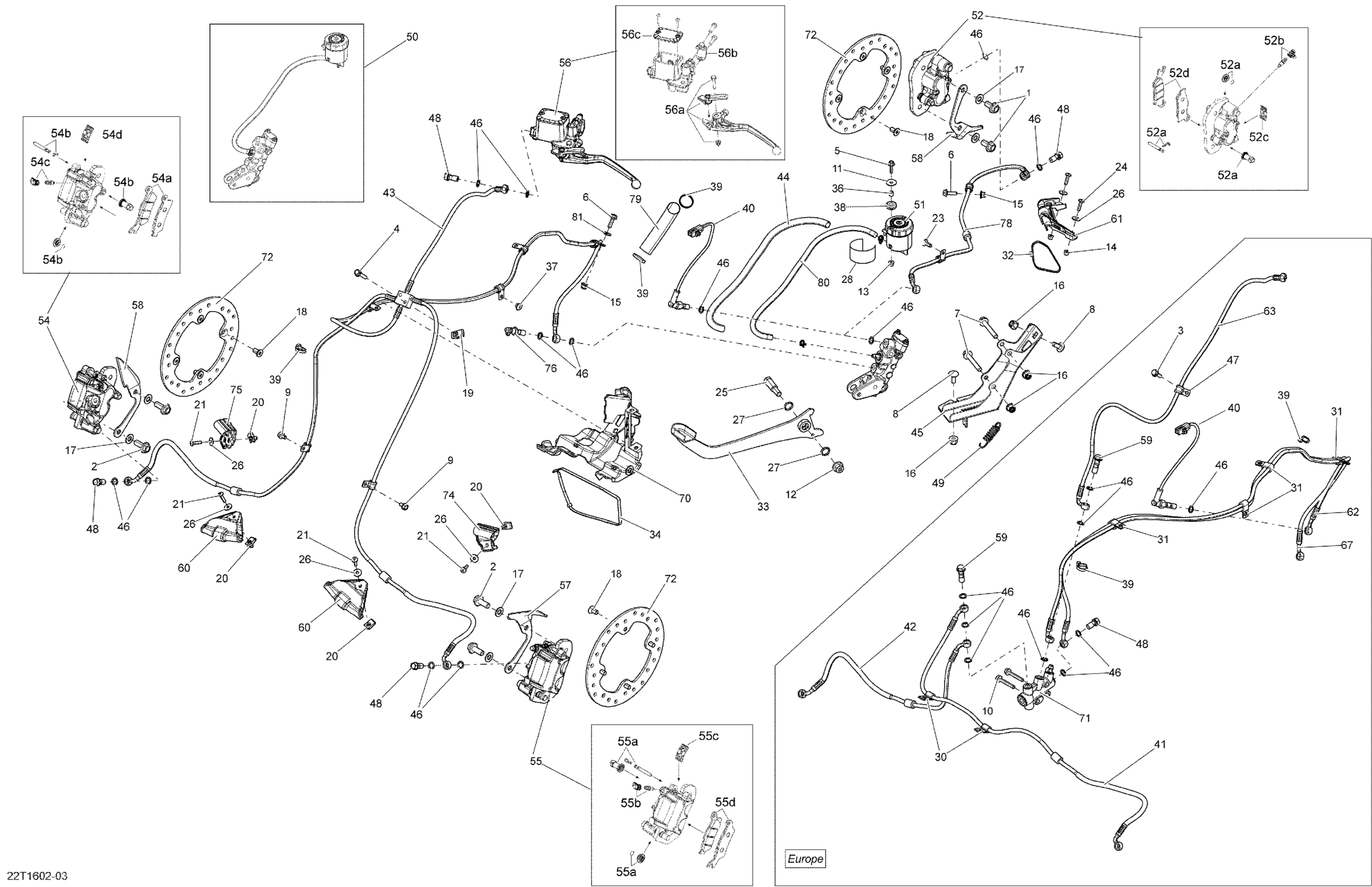

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Brakes - All Models Diagram
