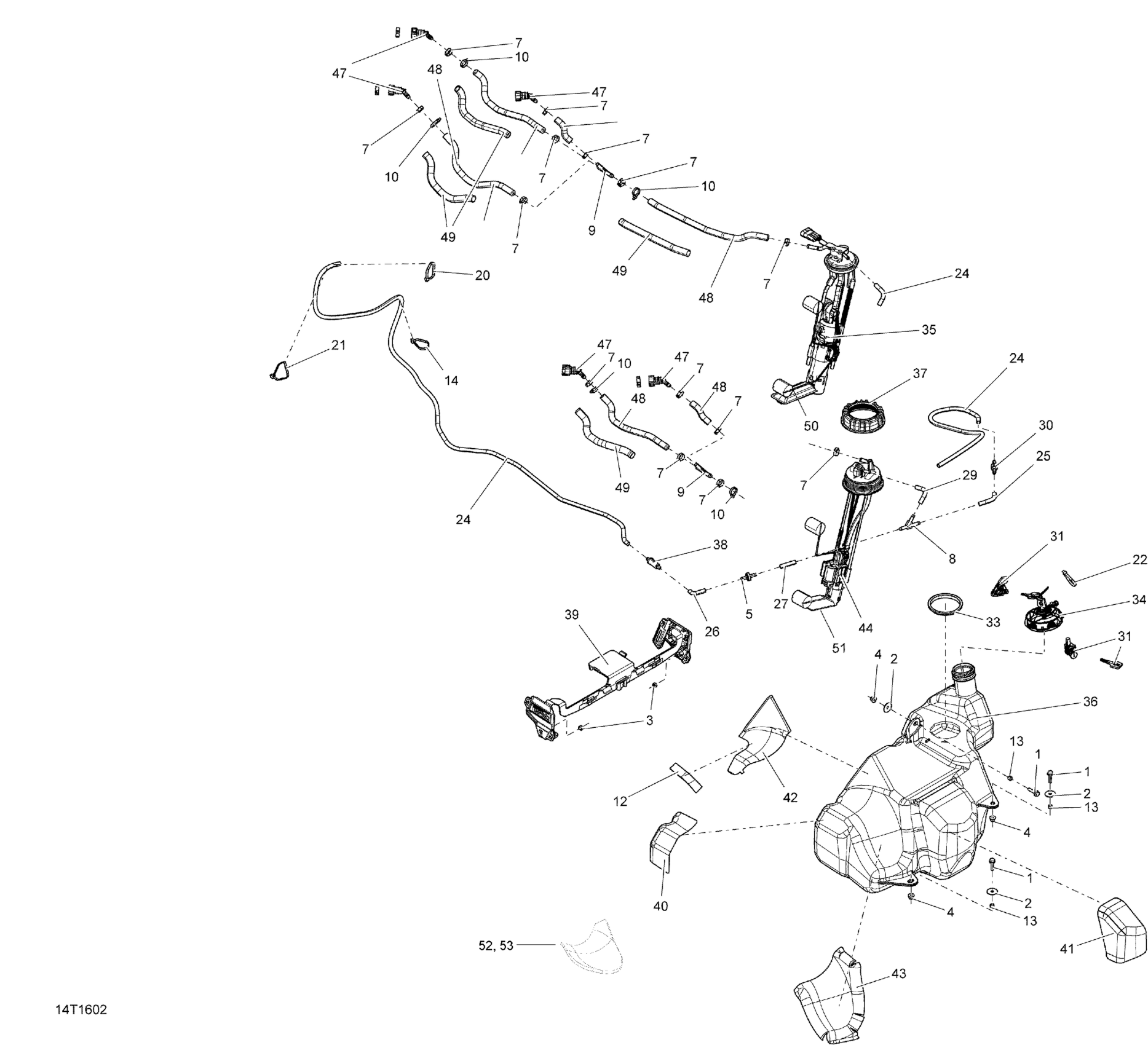

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Fuel System - All Models Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662544

$0.53

2

Washer

224060251

$0.57

3

Hex. Elastic Stop Nut M6

232561600

$0.92

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Check Valve

275500398

$8.57

7

Crimp Clamp, 15.3-706R

293650047

$2.64

8

Y-Fitting

293710059

$8.19

8

Y-Fitting

293710059

$8.19

9

Y-Fitting, 5/16''

293710136

$6.45

10

Tie Wrap 142 mm

293750002

$0.88

12

Rubber Pad

293830172

$2.31

13

Bushing | DS 650 X

293900104

$5.26

14

Tie-Rap 180 mm

414115200

$0.09

24

Polyurethane Hose 10000Mm Long

219704410

$46.12

30

Check Valve

513033469

$25.32

31

Lock Device Kit | Europe Model

707001750

$69.20

33

Seal

709000208

$12.54

34

Fuel Tank Cap

513033025

$19.47

34

Lock Device Kit | Europe Model

707001750

$69.20

34a

Padlock with Key

707000666

$27.66

35

Fuel Pump | Includes 10a to 10b

709001517

$323.94

35

Fuel Pump | Includes 10a to 10b

709001517

$323.94

36

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

37

Fuel Pump Module Nut

709000328

$12.82

38

Filter

709000330

$8.29

39

Hose Support Ass'y

709000359

$13.80

40

Heat Reflective Sheet

709000381

$5.38

41

Heat Reflective Sheet

709001071

$9.29

42

Heat Reflective Sheet

709000387

$4.62

43

Heat Reflective Sheet

709000388

$5.38

44

Fuel Pump

709000461

$323.94

47

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

48

Was 709000163 Fuel Line

219704440

$27.66

49

Tubing 16 Mm 1000Mm Long

219704408

$6.23

50

Fuel Pre-Filter Kit

709000389

$78.43

51

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.82

52

Heat shield

709000527

$16.89

53

Heat shield

709000528

$16.89
