Description

Price

10

Dazzling Blue, LH Upper Suspension Arm Ass'y With Balljoint | Model Dazzling Blue This part replaces 706203938.

715011480

$276.89

10

Can-Am Red, LH Upper Suspension Arm | Model Macchiato Satin

706204405

$193.82

20

Can-Am Red, RH Upper Suspension Arm | Model X3 Xrs Gold

703501163

$272.28

20

Dazzling Blue, RH Upper Suspension Arm Ass'y With Balljoint | Model Dazzling Blue This part replaces 706203939.

715011479

$276.89

21

Suspension Arm Bushing

706204409

$8.29

22

Interior Bushing

706202257

$9.22

23

Wear Plate

706202300

$2.31

24

Grease Fitting 90°

293550056

$1.37

30

Dazzling Blue, LH Lower Suspension Arm Ass'y With Balljoint | Model Dazzling Blue This part replaces 706204659.

715010643

$272.28

30

Deep Black, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204733.

715010614

$272.28

40

Dazzling Blue, RH Lower Suspension Arm Ass'y With Balljoint | Model Dazzling Blue This part replaces 706204660.

715010656

$272.28

40

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$272.28

50

Flange Screw M12 X 85

250000859

$3.95

55

Flange Screw M12 X 145

250000861

$5.47

60

Elastic Flange Nut M12

250001195

$2.15

70

Ball Joint

706203084

$35.35

80

Ball Joint

706202045

$35.35

210

LH Front Knuckle

706204785

$198.43

220

RH Front Knuckle

706204786

$147.66

225

Wear Plate

706202502

$2.75

230

Circlip

293370035

$2.55

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

260

Hex.Flange Screw Din.6921

207605046

$3.95

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Stabilizer Bar Ass'y

706203953

$96.89

290

LH Stabilizer Bar Link

706203611

$67.66

300

RH Stabilizer Bar Link

706203612

$67.66

320

Stabilizer Bar Bushing

706204564

$3.61

325

Grease Fitting 90°

293550056

$1.37

330

Clamp

706202460

$6.45

335

Support Plate

706202551

$4.60

340

Hex. Flange Screw M12 X 95

250000876

$5.54

345

Elastic Flange Nut M12

250001195

$2.15

350

Elastic Flange Nut M12

250001195

$2.15

540

Macchiato, Front Shock Reinforcement

706204350

$50.74

540

Macchiatio, Front Shock Reinforcement

706204492

$49.97

700

Suspension Position Sensor

710005235

$69.20

710

Hex. Flange Screw M5x10

207551056

$1.57

740

LH Front Sensor Support

705211588

$36.89

745

RH Front Sensor Support

705211589

$36.89

750

Hex. Flange Screw M6 X 16

207661654

$1.74

760

Stainless, Torx Screw M6 X 30

250000842

$1.74

770

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

780

Link

706203429

$18.43

790

Hose Support

706203549

$1.37

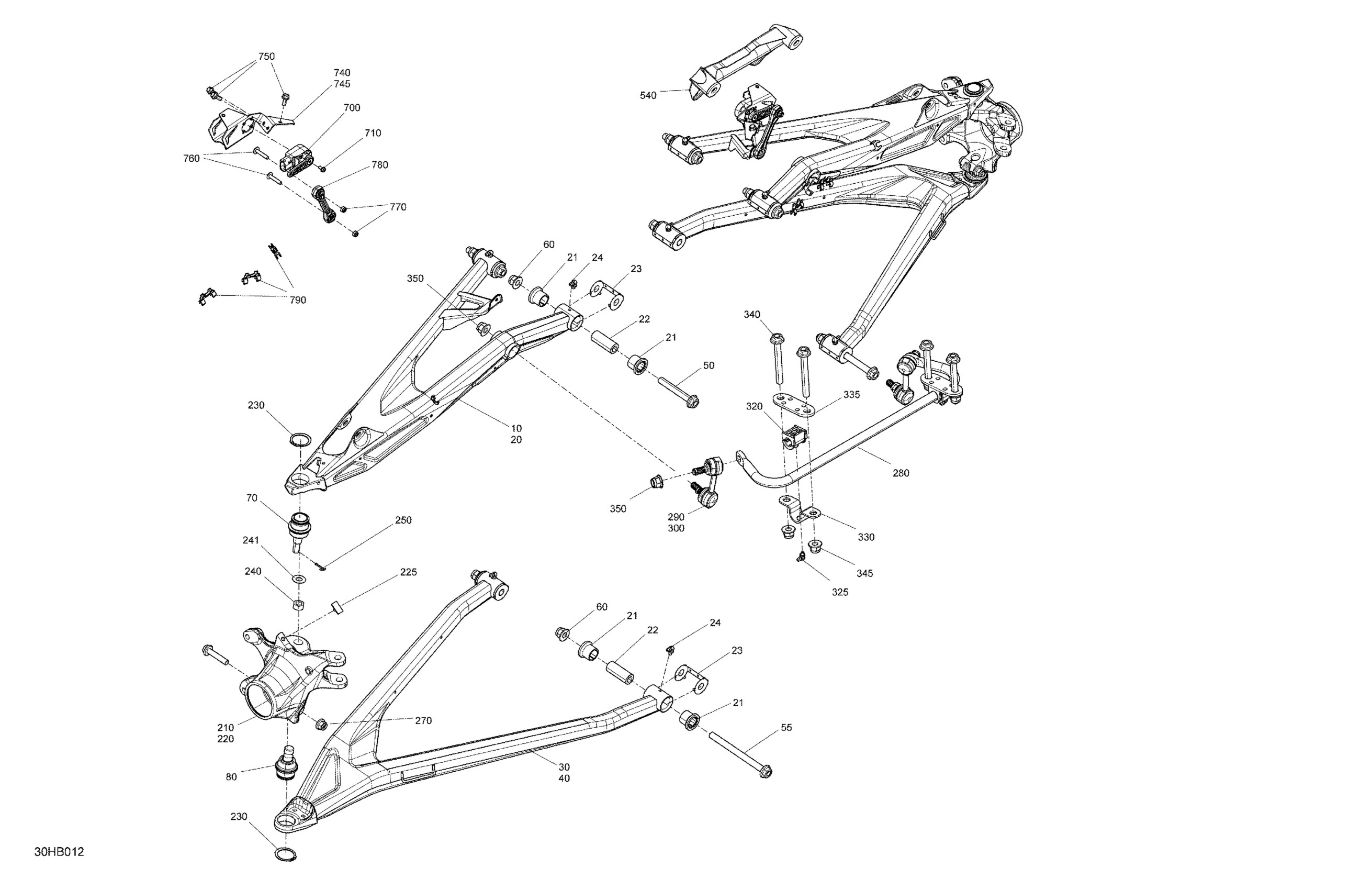

Can-Am Maverick MAX Turbo RR - XRS - International, 2022 Suspension - Front Components Diagram
