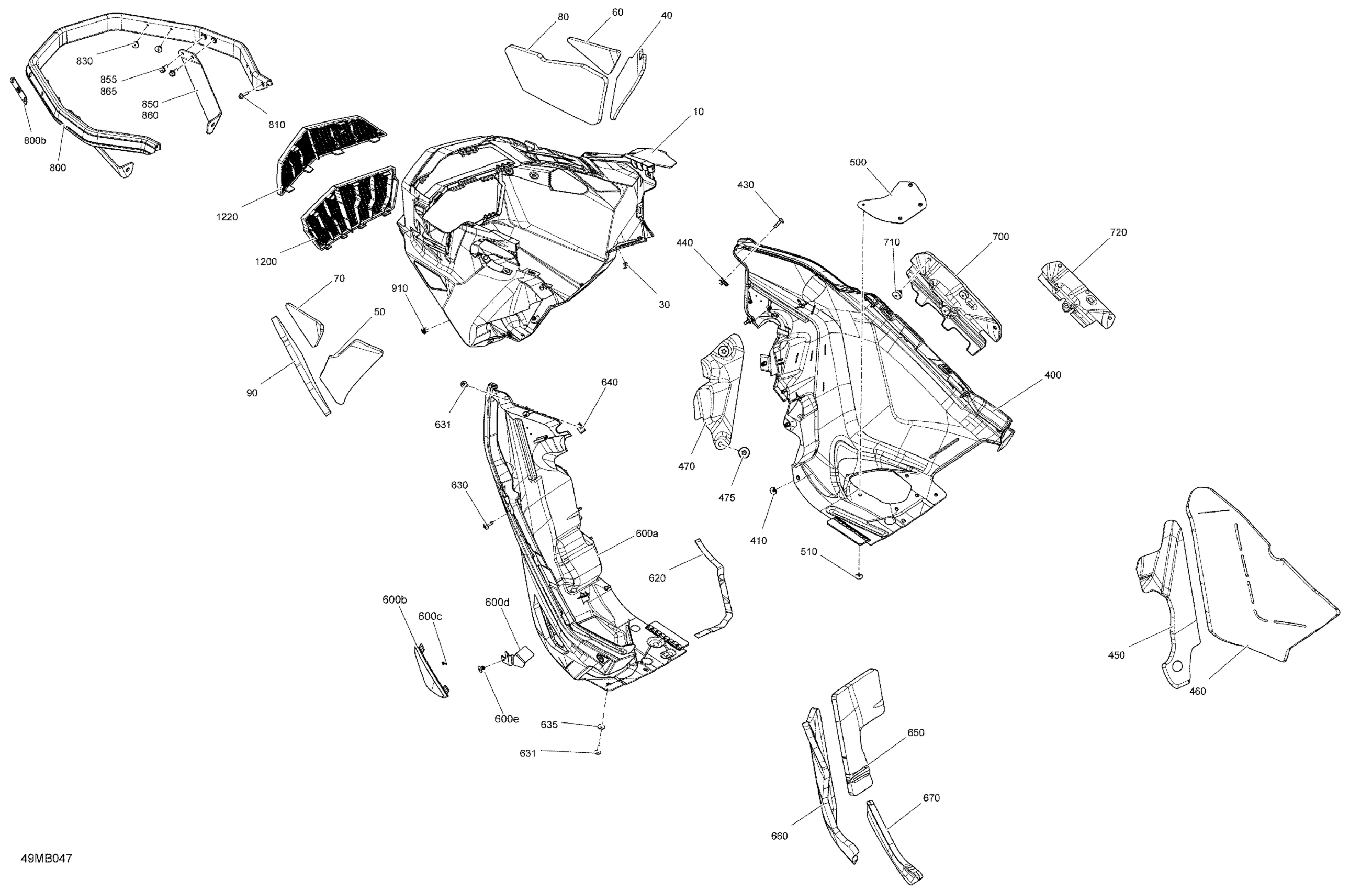

Ski-Doo EXPEDITION SWT 900 ACE - 2022 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$171.51

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

40

RH Upper Bottom Pan Foam

502007788

$16.12

50

LH Upper Bottom Pan Foam

502007789

$16.12

60

RH Bottom Pan Central Foam

502007545

$7.54

70

LH Bottom Pan Central Foam

502007546

$11.91

80

RH Lower Bottom Pan Foam

502007800

$19.20

90

LH Lower Bottom Pan Foam

502007799

$6.77

400

RH Bottom Pan

502008108

$88.43

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

450

RH Front Bottom Pan Foam

502007831

$11.22

460

RH Rear Bottom Pan Foam

502008170

$15.17

470

Heat Shield

502007895

$16.89

475

Push Nut

508000853

$1.92

500

Plate

502007868

$2.02

510

Pop Rivet 3/16"

293150103

$0.54

600a

LH Bottom Pan

502008070

$88.43

600b

Bottom Pan Door

502007676

$36.89

600c

Hairpin Cotter

269800431

$1.00

600d

Stopper

502008326

$33.82

600e

Pop Rivet 3/16"

293150103

$0.54

620

Gasket, Neoprene 2000Mm Long

219704476

$12.64

630

Torx Truss M5 X 20

250000586

$3.61

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

650

LH Bottom Pan Upper Foam

502007549

$11.91

660

LH Front Bottom Pan Foam

502008334

$10.94

670

LH Rear Bottom Pan Foam

502008173

$2.12

700

Heat Shield

502008087

$6.09

710

Stopper

502008149

$1.82

720

Reflective Sheet

502008156

$4.54

800

Front Bumper | Includes 800 to 800b

502007869

$160.74

800b

Bumper Trim

502007880

$28.43

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

850

RH Bumper Reinforcement

502007762

$11.83

855

Hex. Flange Screw M6 X 16

207661644

$0.61

860

LH Bumper Reinforcement

502007763

$11.83

865

Hex. Flange Screw M6 X 16

207661644

$0.61

910

Torx Screw M6 X 25

250000758

$1.74

1200

Lower Prefilter Grille

502007979

$26.89

1220

Upper Prefilter Grille

502007980

$22.99
