Description

Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

415130720

$3,299.97

10d

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10e

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10f

Front Suspension Arm Reinforcement

518335959

$3.85

10h

RH Rear Suspension Support

518332254

$102.28

10j

LH Rear Suspension Support

518332253

$102.28

10k

RH Footrest Reinforcement

518329789

$18.43

10m

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10q

RH Roller

518329648

$180.74

10r

LH Roller

518328452

$180.74

10u

RH Tunnel Liner

518329646

$33.05

10v

LH Tunnel Liner

518329647

$33.05

10y

Radiator Tunnel 154

518335121

$609.20

10z

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ac

Rear Cap

518332481

$76.89

10ae

RH Footrest

518331822

$23.05

10af

Black, Dart 8 mm

293730047

$2.14

10ag

Black, Dart 10 mm

293730060

$4.42

10ah

Black, Plug

293730052

$6.37

10aq

Rivet Avibulb 3/16

293150203

$0.29

10at

Hemlock Rivet, 6.5 mm

293150096

$3.17

10au

Hemlock Rivet, 6.5 mm

293150119

$4.00

10av

Hemlock Rivet, 6.4 mm

293150174

$6.43

10aw

Collar Huck Magna-Grip 6.4

293150149

$0.37

20

Black, Plug

293730052

$6.37

30

Flat Washer 8 mm

234081410

$0.69

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

50

Heat Shield

518331823

$7.42

55

Insert

293450275

$9.89

60

Torx Head Screw M6 X 16

250000717

$1.74

70

Hex Screw M8 X 30

250000942

$0.92

75

Hemlock Rivet, 6.5 mm

293150096

$3.17

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

95

Insert

293450275

$9.89

96

Insert

293450275

$9.89

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$570.74

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$186.89

100a1

Leg Bushing

505072690

Unavailable

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100b1

Leg Bushing

505072690

Unavailable

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100d

Collar Huck Magna-Grip 6.4

293150149

$0.37

100e

Bottom Plate

518332715

$34.58

100f

Rivet Avibulb 3/16

293150203

$0.29

100g

Insert M5 X 0.8

293450268

$1.95

100h

Hex. Flange Screw M6 X 25

250000945

$3.61

100j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100k

Oil Plate

518329454

$15.34

100m

Torx Truss Screw M6 X 12

250000767

$1.66

110

Ornit Rivet 6,5 X 14.5

293150266

$1.94

115

Hex. Flange Screw M6 X 20

207662046

$1.74

120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

125

Hemlock Rivet 6.5 mm

293150120

$7.23

127

Rivet 6,4 mm

293150173

$3.38

128

Hemlock Rivet, 6.5 mm

293150119

$4.00

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662046

$1.74

150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

170

Insert M5 - 0.8

293450267

$4.22

180

Hex. Flange Screw M6 X 16

207661646

$1.00

230

Hex. Flange Screw M6 X 20

207562056

$1.74

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$181.51

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.69

400

Chassis Suspension Module

518334461

$653.05

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

435

Hex. Flange Screw M6 X 20

207562056

$1.74

440

Ornit Rivet 6,5 X 14.5

293150266

$1.94

800

LH Under Chassis Reinforcement

518332514

$11.00

810

RH Under Chassis Reinforcement

518332516

$11.00

820

Cross Member Support

518331733

$30.74

830

Hemlock Rivet, 6.5 mm

293150119

$4.00

850

Hemlock Rivet, 6.5 mm

293150119

$4.00

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

875

Rivet

293150183

$2.06

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

885

Collar Huck Magna-Grip 6.4

293150149

$0.37

900

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$108.43

910

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329370

$20.74

1105

Upper Side Column Support

518330916

$20.74

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1130

Hex. Flange Screw M6 X 25

207662556

$3.61

1140

Hex. Flange Screw M6 X 20

207662046

$1.74

1150

Hex. Flange Screw M6 X 20

207562056

$1.74

1160

Hemlock Rivet, 6.5 mm

293150119

$4.00

1170

Muffler Support Ass'y

518334031

$19.97

1200

Center Column Support

518329906

$3.37

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

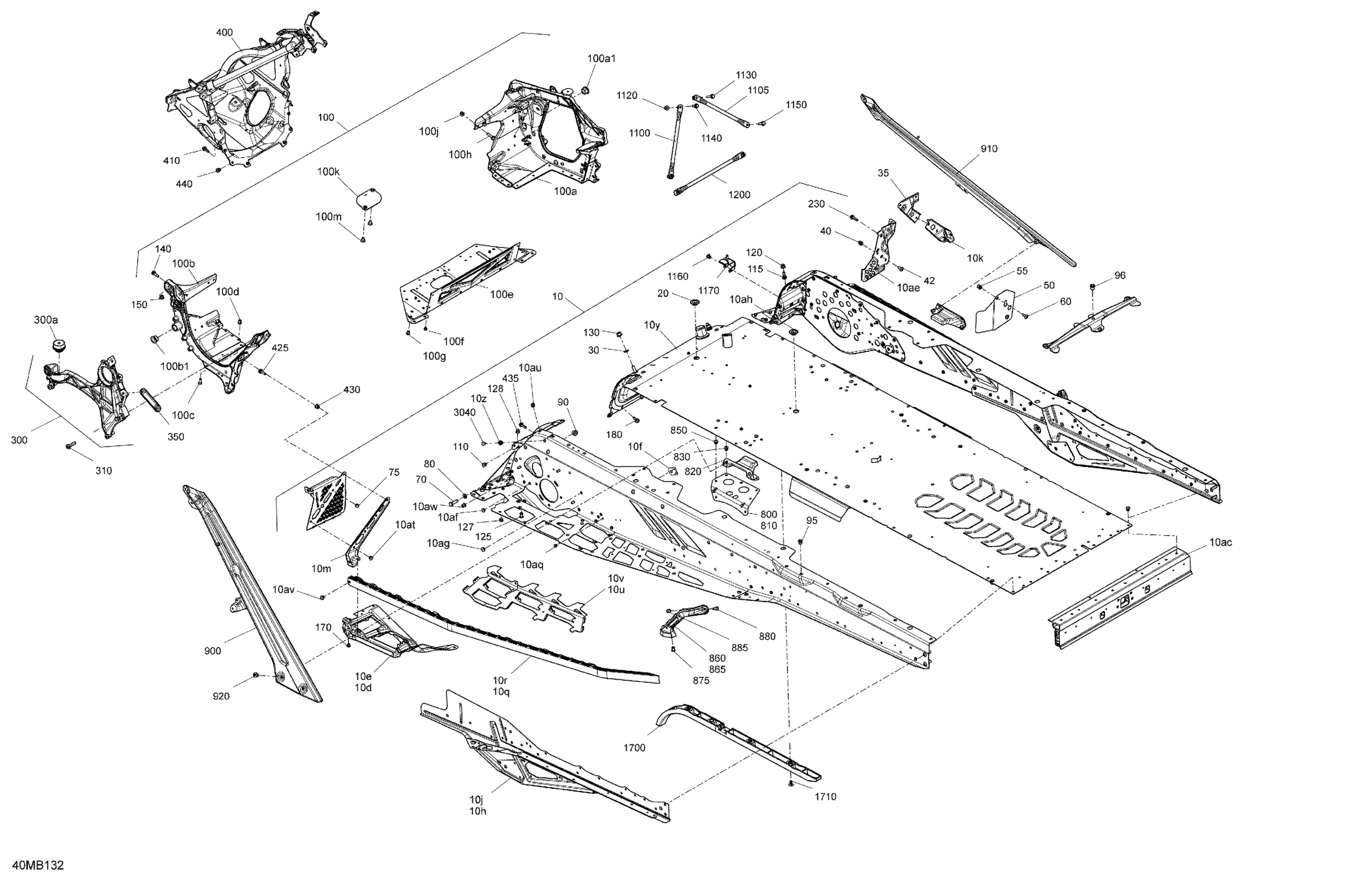

Ski-Doo EXPEDITION SWT 900 ACE - 2022 Frame - System Diagram
