Electric - Front Section

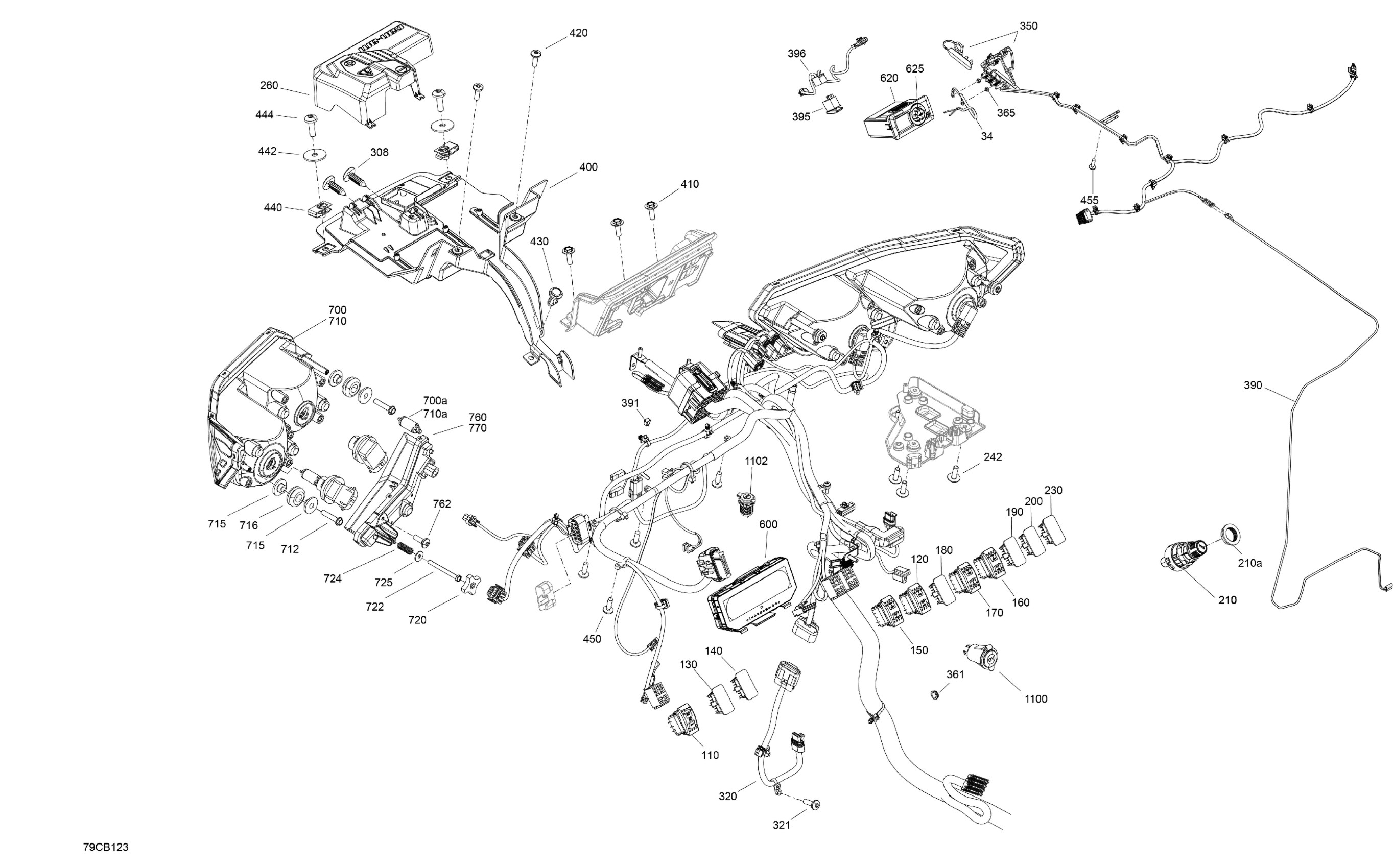

Can-Am Defender MAX HD10 - Lone Star CAB (6LNA) - 2022 Electric - Front Section Diagram
#
34
12V Power Roof Wiring Harness
710008439
Unavailable
110
Light Switch
710004492
Unavailable
120
Switch Winch
710002052
Unavailable
130
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
140
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
150
Switch 2X4
710005489
Unavailable
160
Differential Lock Switch
710005470
Unavailable
170
Multifonction Switch
710006650
Unavailable
180
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
190
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
200
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
210
Ignition Switch | Includes 210 to 210b
710007324
Unavailable
210a
Specialized Nut
710007923
Unavailable
210b
Blank Ignition Key
715900934
Unavailable
230
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
242
Screw PT Type K-50 X 16
250000959
Unavailable
260
Junction Block Cover
710006707
Unavailable
308
Black, Dart
293730006
Unavailable
320
Throttle Pedal Harness
710006837
Unavailable
321
Torx Screw K50 X 16
250000720
Unavailable
350
Window/Wiper Harness
710004462
Unavailable
361
Boot
710002743
Unavailable
365
Elastic Stop Nut M6, Brass
232561200
Unavailable
390
Wiper Harness
710004661
Unavailable
391
Clip
414227300
Unavailable
395
Wiper Switch
710004941
Unavailable
396
Wiper Harness
710004942
Unavailable
400
Wiring Harness Support
710006649
Unavailable
410
Screw PT Type K-50 X 16
250000959
Unavailable
420
Torx Screw K50 X 16
250000720
Unavailable
430
Tuflok Plastic Rivet
293150230
Unavailable
440
Panel Nut M6 X 1.0
250100198
Unavailable
442
Washer M6
250200029
Unavailable
444
Torx Screw M6 X 20
250000712
Unavailable
450
Screw PT Type K-50 X 16
250000959
Unavailable
455
Torx Screw K50 X 16
250000720
Unavailable
600
Multifunction Gauge MID | Model XTP
710007409
Unavailable
620
A/C Control Unit | Includes 620 to 620a
710009400
Unavailable
625
Replacement Control Knob
715900906
Unavailable
700
RH Beam | Includes 710 to 710a
710008317
Unavailable
700a
Halogen Bulb H8 12V 35W Blue
715900653
Unavailable
710
LH Beam | Includes 700 to 700a
710008316
Unavailable
710a
Halogen Bulb H8 12V 35W Blue
715900653
Unavailable
712
Hex. Flange Screw K50 X 2.24 X 25
241152540
Unavailable
715
Shoulder Bushing
710004749
Unavailable
716
Grommet
709000582
Unavailable
720
Handle
572106600
Unavailable
722
Hex. Screw K40 X 45
250000718
Unavailable
724
Spring
517168600
Unavailable
725
Flat Washer 4 mm, Stainless
234042600
Unavailable
760
LH Auxiliary LED Headlight
710006374
Unavailable
762
Screw PT Type K-50 X 16
250000959
Unavailable
770
RH Auxiliary LED Headlight
710006375
Unavailable
1100
12V Power Outlet
710005374
Unavailable
1102
USB Outlet
219400510
Unavailable
