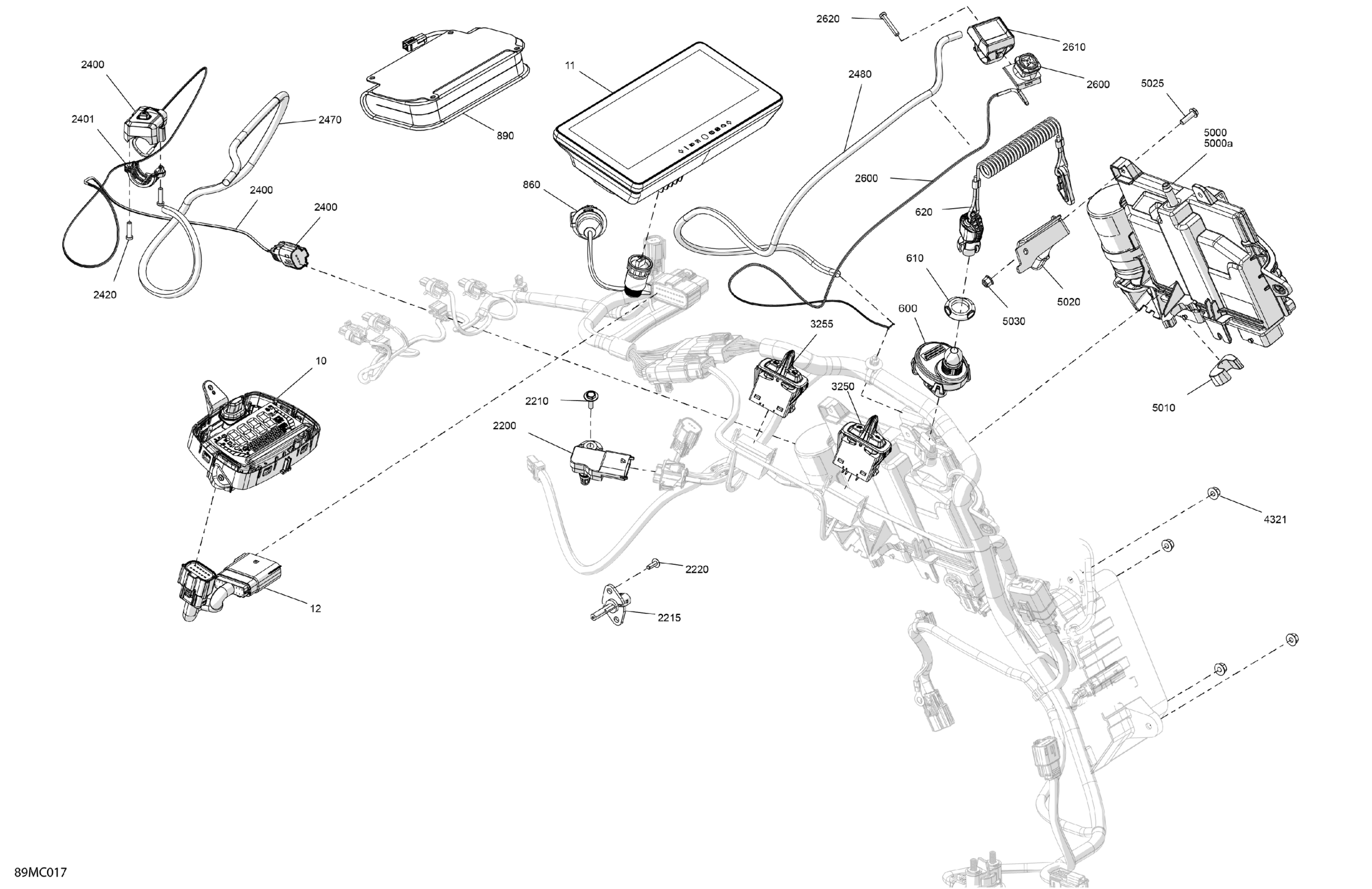

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 154" 2023 Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$495.35

Multifunction Gauge 10

710009417

Unavailable

Junction Wiring Harness

515179304

$23.05

600

Ignition Switch

710006855

$77.66

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

860

USB Wiring Harness Ass'y

515179248

$74.58

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$109.99

2200

Pressure And Temperature Sensor

707000995

$70.82

2210

Screw M4 X 16

250000725

$2.87

2215

Air Temperature Sensor

515176366

$18.43

2220

Torx Truss PT K40 x 12

250001131

$1.74

2400

Ignition Switch

515179056

$68.43

2401

Clamp

515177952

$8.57

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515178859

$76.89

2610

Clamp

515179182

$8.60

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.20

3250

Switch Rocker Hand Warmer

515178462

$19.20

3255

Switch Rocker Headlignt

515178463

$19.20

4321

Hex. Flange Nut M5

233151414

$0.46

5000

ECM Module | Includes 5000a to 5000a2

515179354

$599.97

5000a

Capacitor

515177272

$85.35

5010

Rubber Stopper

515178430

$2.09

5020

Module Support

515178159

$4.28

5025

Hex. Flange Screw, Scotch Grip

207551634

$1.66

5030

Flange Elastic Nut M5

233251434

$1.66
