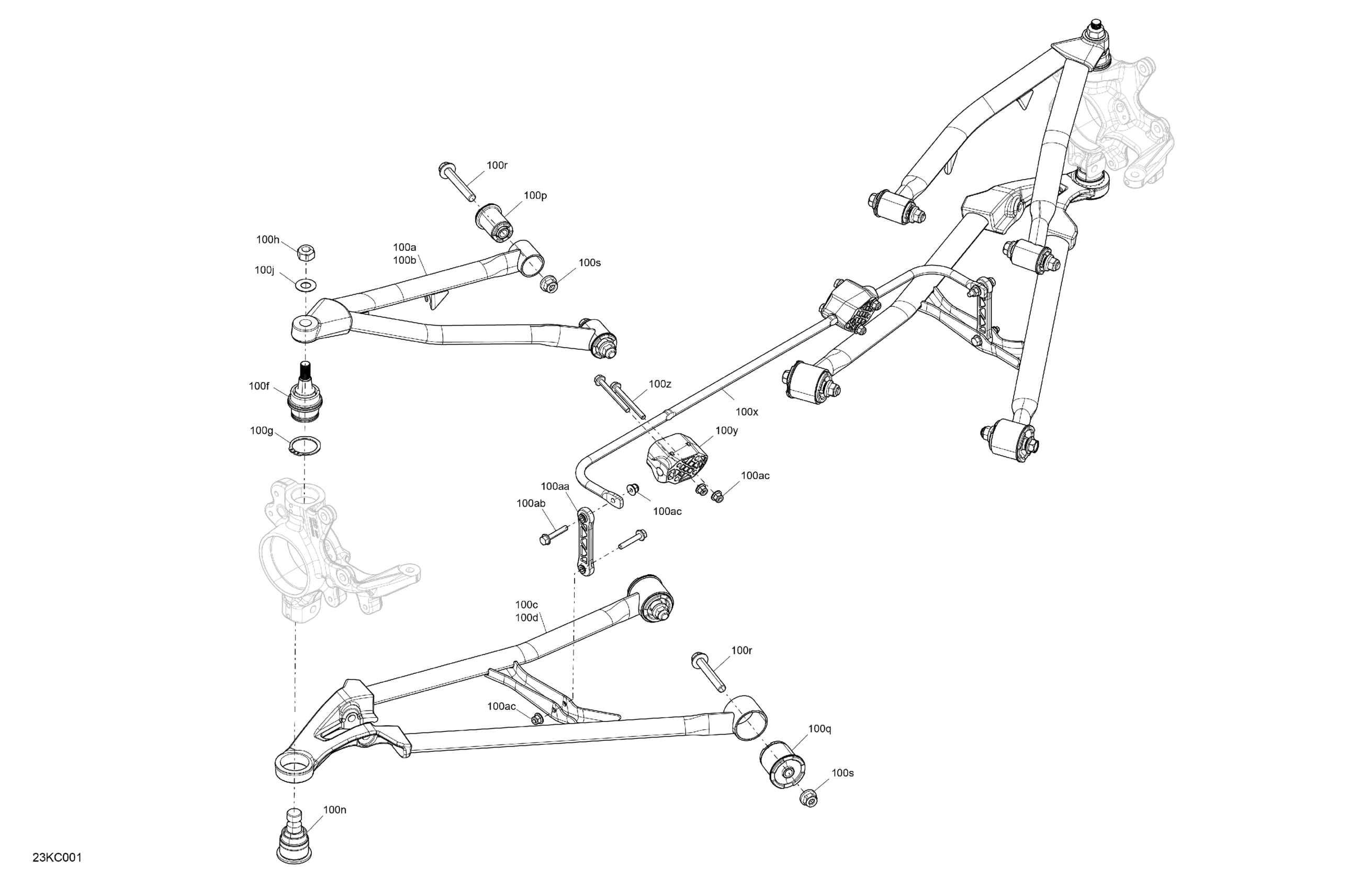

Can-Am RYKER SPORT 900 ACE, North America (F5PA), 2023 Suspension - Front Diagram

Description

Price

100a

LH Upper Arm

706202644

$159.00

100b

RH Upper Arm

706202645

$159.00

100c

LH Lower Suspension Arm

706204700

$159.00

100d

RH Lower Suspension Arm

706204701

$159.00

100f

Ball Joint

706203147

$54.00

100g

Circlip

293370035

Unavailable

100h

Hex Elastic Nut M12 X 1.25

232521464

Unavailable

100j

Hardened Washer

706200281

Unavailable

100n

Ball Joint

706202508

$42.00

100p

Upper Suspension Arm Bushing

706202549

$14.00

100q

Lower Suspension Arm Bushing

706203143

$14.00

100r

Hex. Flange Screw M10 X 65

207606556

$4.00

100s

Flange Elastic Nut M10

233201466

Unavailable

100x

Sway Bar

706202710

$28.00

100y

Bushing

706204465

$9.00

100z

Hex. Flange Screw M6 X 60

207666044

$1.22

100aa

Sway Bar Double Joint Link

505072204

Unavailable

100ab

Hex. Flange Screw M6 X 35

207663554

$1.74

100ac

Hex. Flange Elastic Nut M6

233261494

Unavailable
