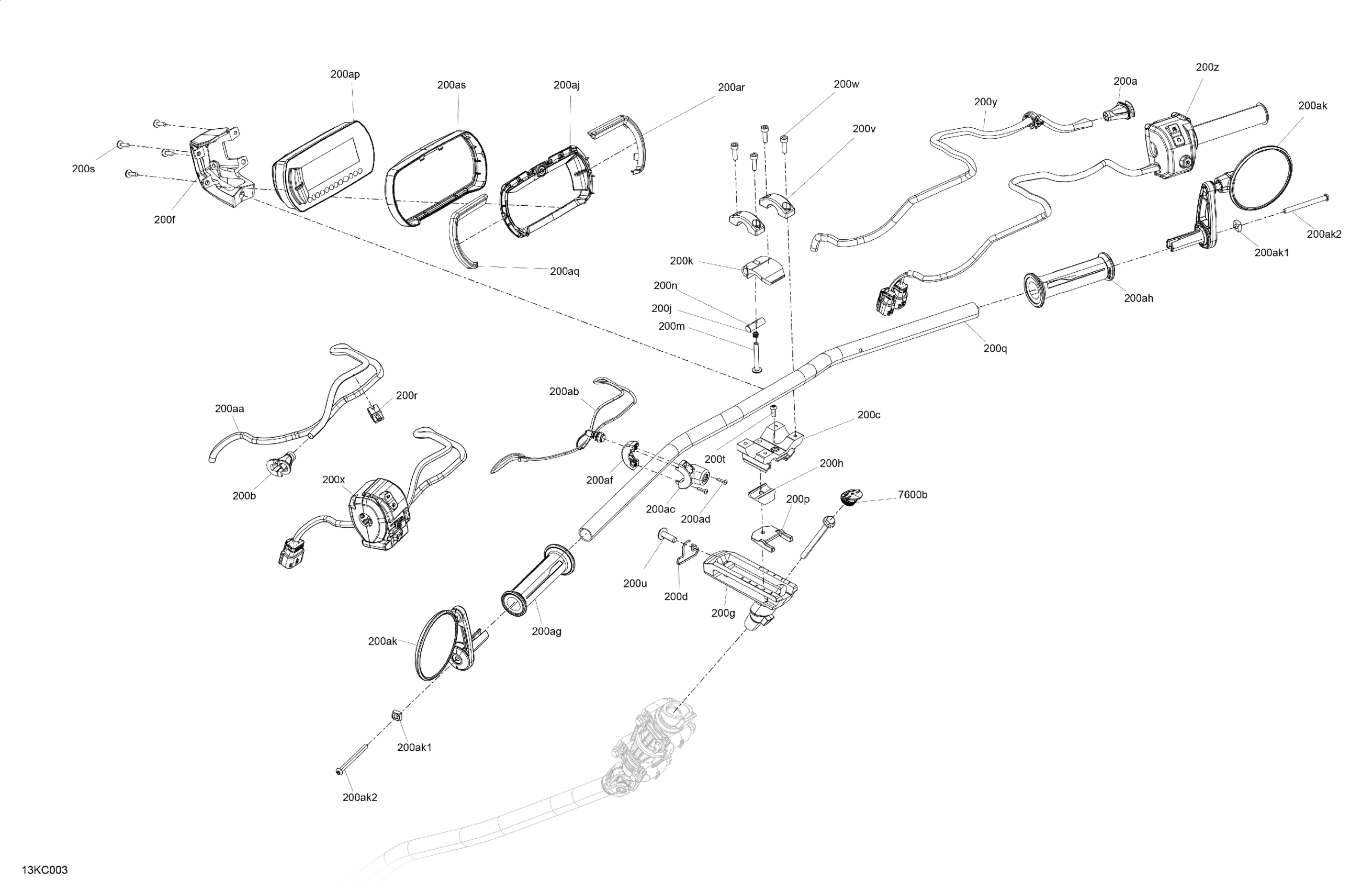

Can-Am RYKER SPORT 900 ACE, North America (F5PA), 2023 Mechanic - Handlebar Diagram

Description

Price

200a

Fairlead

709402502

$3.00

200b

Fairlead

709402513

$3.00

200c

Slide

709402452

$34.00

200d

Steel Cable Support

709402267

$15.00

200f

Deep Black, Cluster Support

709402243

$34.00

200g

Deep Black, Stem

709402683

$130.00

200h

Adjuster Block

506153164

$1.00

200j

Compression Spring

709402427

$5.00

200k

Deep Black, Release Lever

709402279

$24.00

200m

Torx-Truss Screw M6 X 45

709402444

$5.00

200n

Pin Lever

709402454

$9.00

200p

Rocker Arm

709402273

$14.00

200q

Carbon Black, Handle Bar

709402265

$41.00

200r

Fairlead

709402707

$3.00

200s

Torx Screw K50 X 16

250000720

Unavailable

200t

Screw-Torx Button Head M5 X 14

235551454

Unavailable

200u

Torx Truss M8 X 25

250000874

Unavailable

200v

Deep Black, Handle Bar Clamp

709402255

$5.00

200w

Socket Head Screw M6 X 20 S.Grip

205562054

Unavailable

200x

LH Multifunction Switch

710007370

$148.00

200y

Braided Sleeve

415130141

Unavailable

200z

RH Multifunction Switch & Twist Throttle

710007369

$265.00

200aa

Braided Sleeve

415130141

Unavailable

200ab

Switch

710009333

$33.00

200ac

Switch Support

709402275

$18.00

200ad

Torx-Truss Pt K40 X 16

250000759

Unavailable

200af

Back Switch Support

709402290

$6.00

200ag

LH Handle Grip

709401984

$20.00

200ah

RH Handle Grip

709401985

$20.00

200aj

Gauge Trim

709402742

Unavailable

200ak

Rear-View Mirror Ass'y

705018904

$19.00

200ak1

Square Nut M6

232862412

Unavailable

200ak2

Torx Screw Button Head M6 X 70

235567084

$7.28

200ap

Multifunction Gauge Compact Mono

710008108

Unavailable

200aq

Deep Black, LH Trim Gauge

709402210

Unavailable

200ar

Deep Black, RH Trim Gauge

709402211

Unavailable

200as

Rear Cluster Cap

709402092

Unavailable

7600b

Cap

709402276

$1.00
