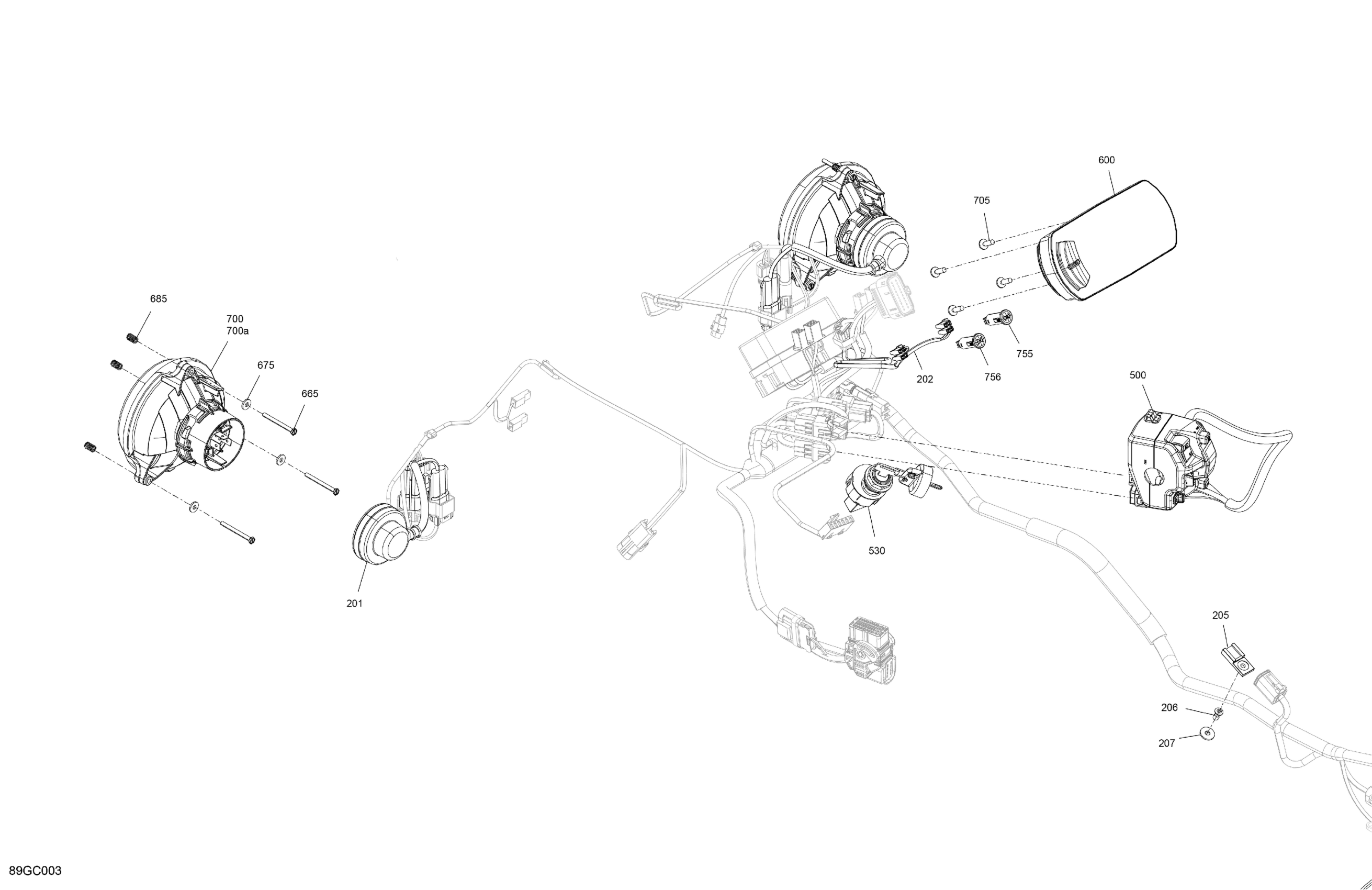

Can-Am Outlander T MAX 570 EFI - DPS - T Regulation, 2023 Electric - Front Section Diagram

Description

Price

201

Light Cable

710005780

$23.99

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$11.99

206

Pop Rivet 3/16 X ,551

293150301

$1.49

207

Washer | DS 650 X

391301600

$1.49

500

LH Front Multifunction Switch

710006945

$228.33

530

Ignition Switch | Except Model Pro, T3

710007864

$85.99

600

Multifunction Gauge Compact Mono

710008108

$409.99

665

Hex. Screw K40 X 45

250000718

$2.19

675

Flat Washer

517225900

$1.49

685

Spring

517168600

$7.59

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

705

Torx Screw K50 X 16

250000720

$1.69

755

Trailer Turn Signal Pilot Lamp

710010098

$7.64

756

Pilot Light Marker

710010099

$7.64
