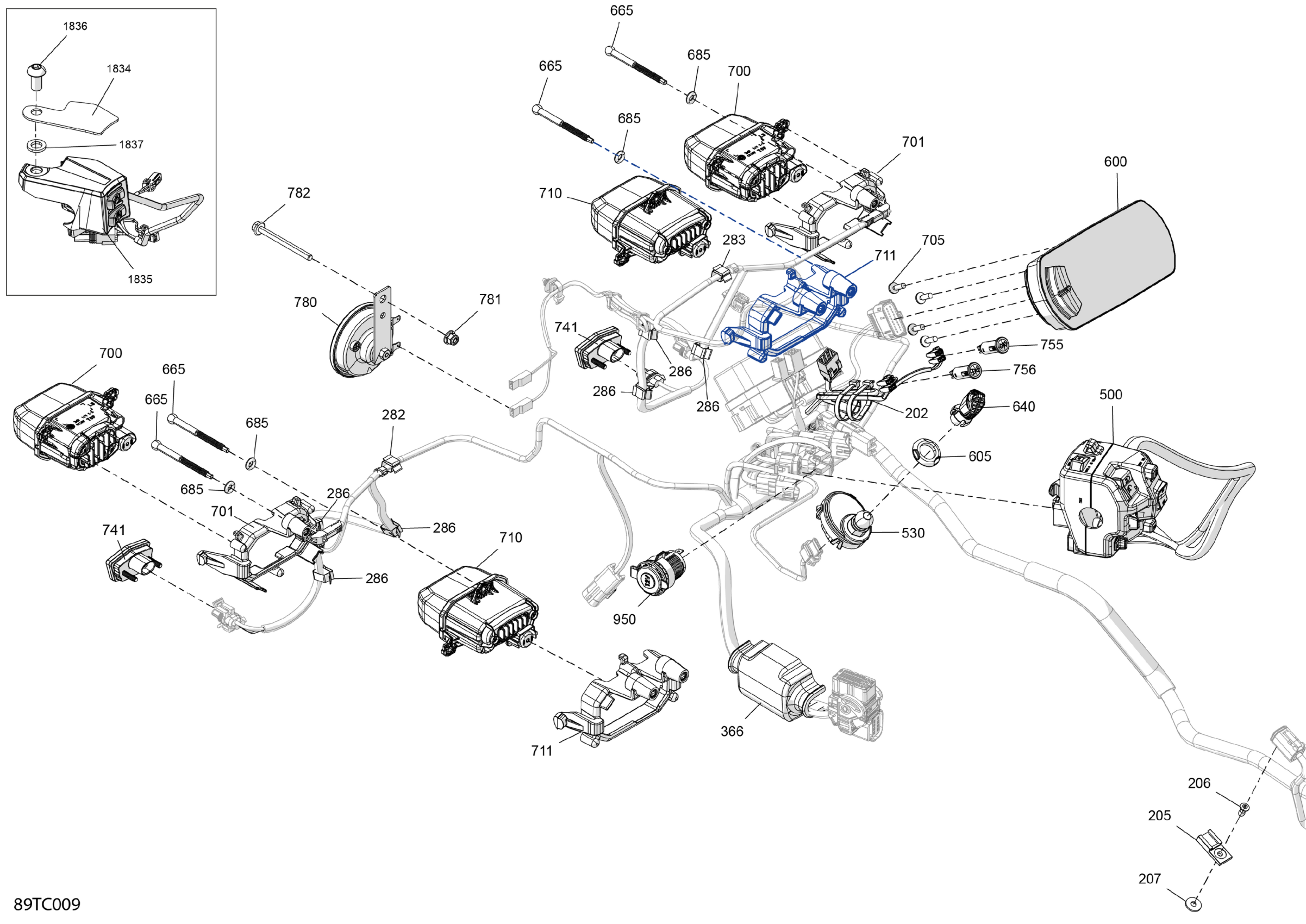

Can-Am Outlander T MAX 1000 EFI - XU+ - T Regulation, 2023 Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

286

Clip

414227300

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

LH Front Switch Housing

710006672

$228.33

530

Terminal Dess One-Wire

515179240

$69.37

600

Multifunction Gauge Compact Mono

710008108

$364.90

605

Safety Nut (DESS Switch)

278002963

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

665

Ajustment Screw

710005837

$5.90

685

O-Ring

293300192

$3.81

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

705

Torx Screw K50 X 16

250000720

$1.39

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

741

Amber Light Turn Signal

710007217

$16.39

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73
