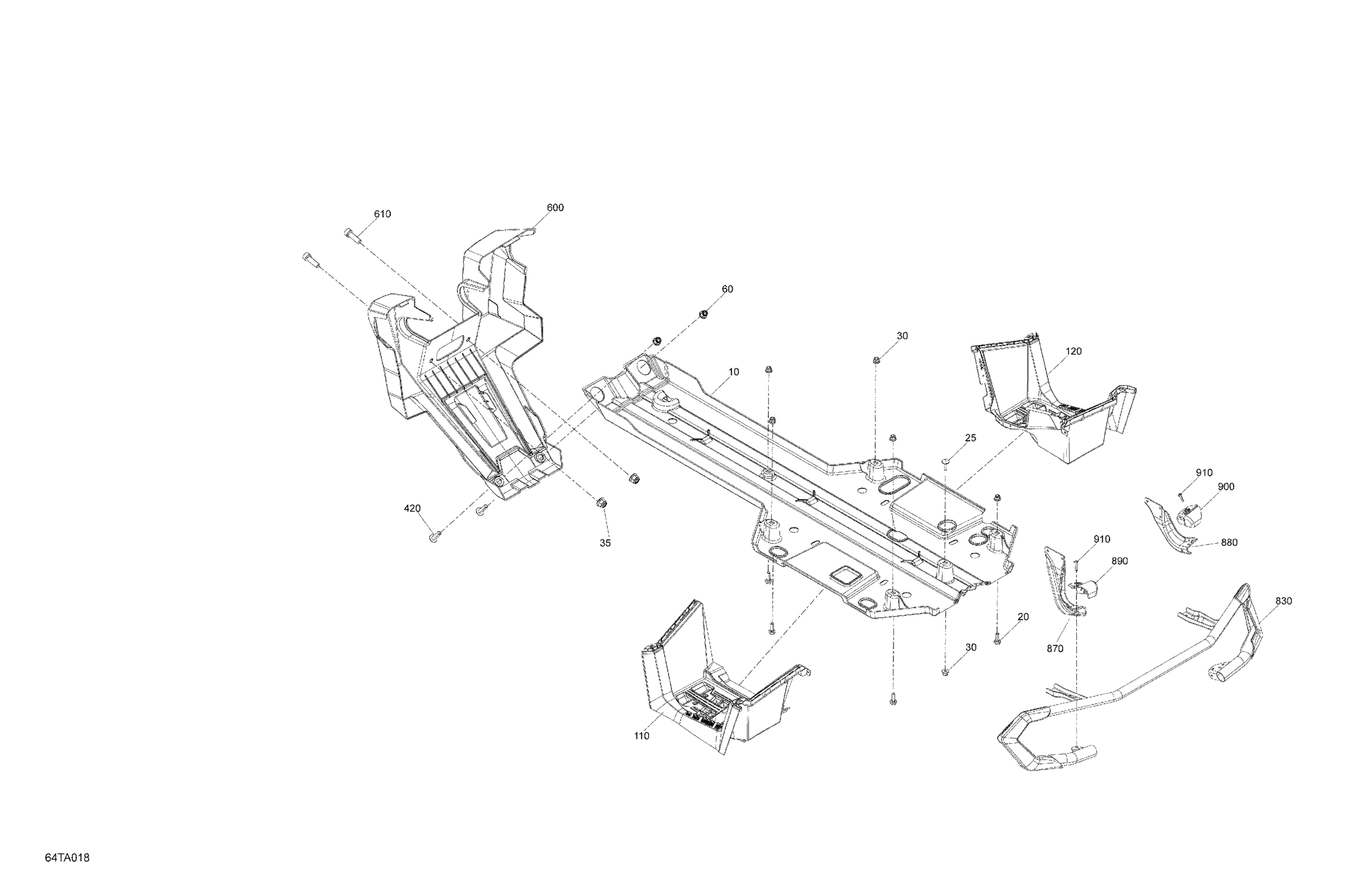

Can-Am Outlander 850 EFI - XMR - NEO YELLOW - 2021 Body - Skid Plate Diagram

Description

Price

Protective Plate Kit

715002374

$64.58

Hex. Flange Screw M6 X 20

207662054

$0.83

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M10

233201434

$1.63

Hex. Flange Elastic Nut M8

233281434

$1.74

110

LH Footrest

705009810

$96.89

120

RH Footrest

705009811

$96.89

420

Torx Screw M8 X 30

250000886

$1.74

600

Front Guard Plate | North America, International

705006299

$47.66

610

Socket Screw M10 x 30 | XT

205003044

$2.61

830

Manta Green, Rear Bumper | Model-Digital Camo

705014131

$226.12

830

Neo Yellow, Rear Bumper | Neo Yellow Model

705015373

$281.51

870

LH Rear Bracket | XT

705008164

$34.58

880

RH Rear Bracket | XT

705008165

$34.58

890

LH Bracket | XT

705005094

$7.37

900

RH Bracket | XT

705005095

$7.37

910

Stainless, Torx Screw M6 X 30

250000842

$1.74
