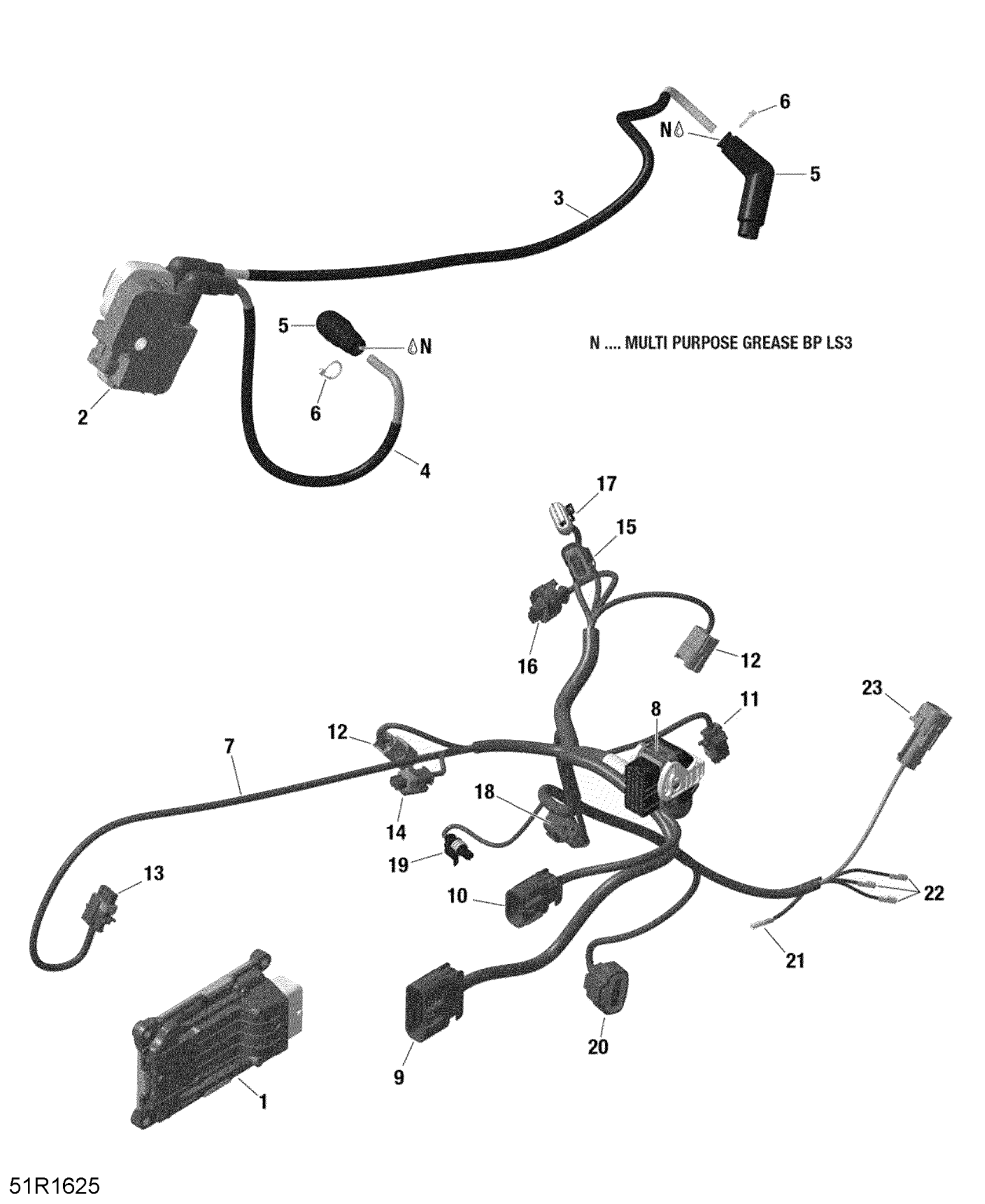

Can-Am Outlander - 1000R EFI 0005JGA00 0005JGB00 0005JGC00 0005LGA00 0005TGA00 0005TGB00 0005TGC00 0005TGD00 0005TGE00 0005TGF00 0005TGG00 0005UGA00 0005UGB00 0005UGC00 0005UGD00 0005UGE00 0005UGF00 0005UGG00 0005UGH00 0005UGJ00 0005WGB00 0005WGD00 0005WGE00 0005XGA00 0005XGB00 0005XGC00 0005WGA00 Engine Harness and Electronic Module - 1000R EFI (Outlander Except Package XMR) Diagram

#

Description
Price

1

ECM Engine Control Module | Outlander Except Europe

420666990

$1,274.99

1

ECM Engine Control Module | MAX Model

420666991

$1,274.99

1

ECM Engine Control Module | Europe

420666992

$1,274.99

2a

Ignition Coil

278001546

$129.32

2b

Housing

710000568

$10.83

3

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

4

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

5

Spark Plug Connector

420265248

$31.51

6

Tie Rap

420866710

$4.36

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

Engine Wiring Harness

420864692

$406.12

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Housing

710001227

$12.91

11

Housing

710001927

$8.57

12

Male Housing, 2 Circuits

278001005

$15.57

13

Not Available As Spare Parts

XXX

Unavailable

14

Male Housing, 3 Circuits

278000997

$15.57

15

Male Housing, 2 Circuits

278001005

$15.57

16

Housing Connector, 3 Circuits

278001829

$17.52

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Male Housing

278002378

$10.91

20

Male Housing, 1 Circuit

278001012

$12.65

21

Male Housing, 4 Circuits

710000329

$14.75

22a

Female Terminal | DS 650 X

278001009

$2.55

22b

Insulated Sheath

278001007

$3.22

23

Male Housing, 3 Circuits

278000997

$15.57
