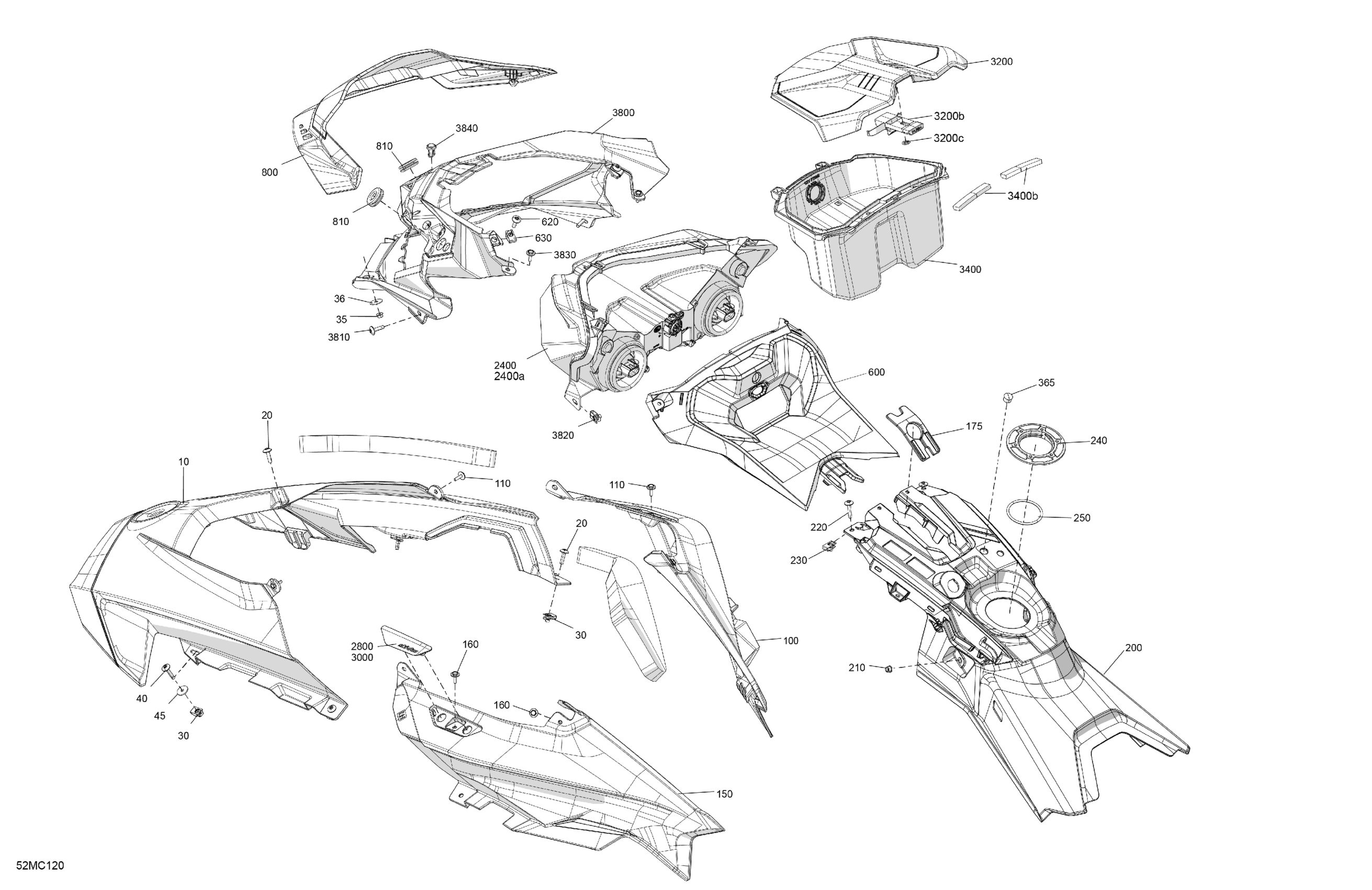

Ski-Doo MXZ 600 EFI - 55 - NEO+ - 2023 Body - Hood Diagram

#

Description
Price

10

Neo Yellow, Front Molded Hood

517307360

$188.43

20

Torx Screw M5 X 20

250000528

$1.74

30

Panel Nut M5 X 0.8

250000958

$3.48

35

Hex. Flange Nut M5

233151414

$0.46

36

Flat Washer

250200040

$1.82

40

Torx Screw M5 X 26

250000587

$3.61

45

Washer

250200166

$1.74

100

Deep Black, RH Hood

517307299

$193.82

110

Screw M4 X 16

250000725

$2.87

150

Deep Black, LH Hood

517307300

$209.20

160

Screw M4 X 16

250000725

$2.87

175

Console Pad

517307744

$15.35

200

Deep Black, RH Console

517308119

$181.51

210

Flange Elastic Nut M5

233251434

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Console Nut

517306602

$11.22

250

O-Ring

706002839

$0.98

365

Cap

572051500

$5.38

600

Gauge Support

517308510

$35.35

620

Torx Truss M5 X 20

250000586

$3.61

630

Panel Nut M5 X 0.8

250000958

$3.48

800

Deep Black, Wind Deflector

517305875

$46.12

810

Grommet

517303756

$3.15

2400

Headlamp | Includes 2400 to 2400a

517305752

$425.35

2400a

Bulb

415130081

$39.97

2500

Foil

517308785

$4.15

2800

RH Hood Plate

517306049

$11.54

3000

LH Hood Plate

517306050

$11.54

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$20.74

3200b

Latch

517305779

$10.23

3200c

Push Nut

732610072

$1.72

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$18.43

3400b

Seal Joint

517305157

$2.28

3800

Deep Black, Headlamp Fairing

517305746

$64.58

3810

Torx Screw M5 X 20

250000528

$1.74

3820

Panel Nut M5 X 0.8

250000958

$3.48

3830

Screw M4 X 16

250000725

$2.87

3840

Tuflok Plastic Rivet

293150230

$1.21
