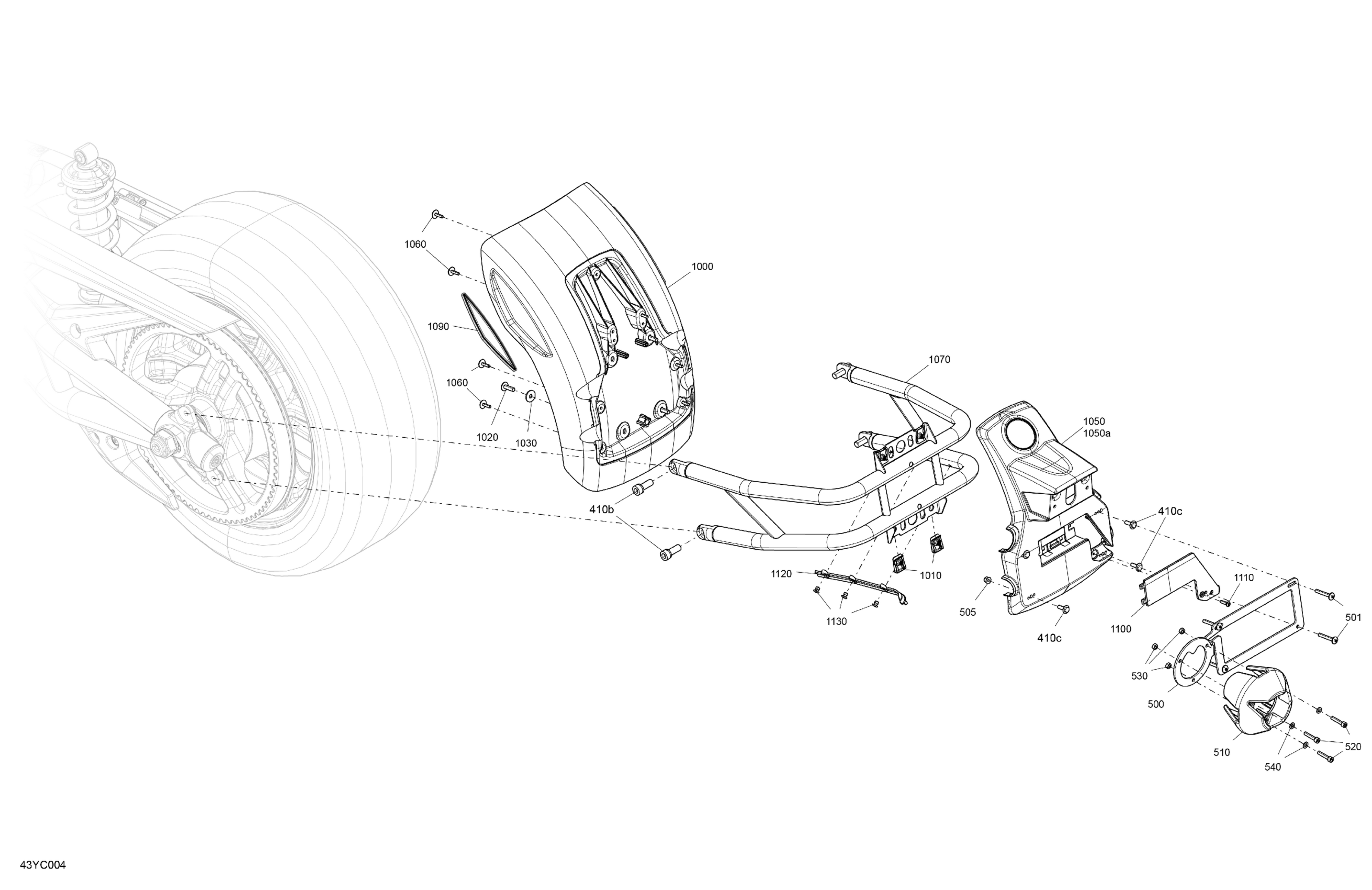

Can-Am F3 SPORT - Manta Green, China, 2023 Body - Rear Fender Diagram

Description

Price

500

Support, Fog Light Rear

719000068

$62.00

501

Torx Screw Nylon

250000732

$1.74

505

Elastic Flange Nut M5

233251494

$1.74

510

Rear Fog Light Guard

719000067

$13.00

520

Socket Head Screw M5 X 25

205052588

$1.56

530

Hex. Nut M5

232051600

$0.92

540

Flat Washer M5

234051670

$1.74

1000

Rear Fender

705011661

$205.00

1010

Panel Nut M6 X 1.0

250100208

$1.07

1020

Torx Truss Screw M6 X 20

250000705

$1.74

1030

Flat Washer

250200082

$0.35

1050

Trim, Fender Rear

705015074

$93.00

1050a

Rear Fender Moulding

705008241

$205.00

1060

Screw M4 X 16

250000725

$2.87

1070

Carbon Black Rear Fender Support

705008249

$215.00

1090

Amber, Lateral Reflector

705002423

$13.28

1100

Cover Moulding

705015553

$26.00

1110

Flange Torx Screw K40 X 16

250000287

$1.74

1120

Cable Cap

706202219

$7.00

1130

Rivet 3/16"

293150102

$0.71

410b

Allen Screw S.GRIP M10 X 25

205502560

$7.00

410c

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
