Description

Price

200

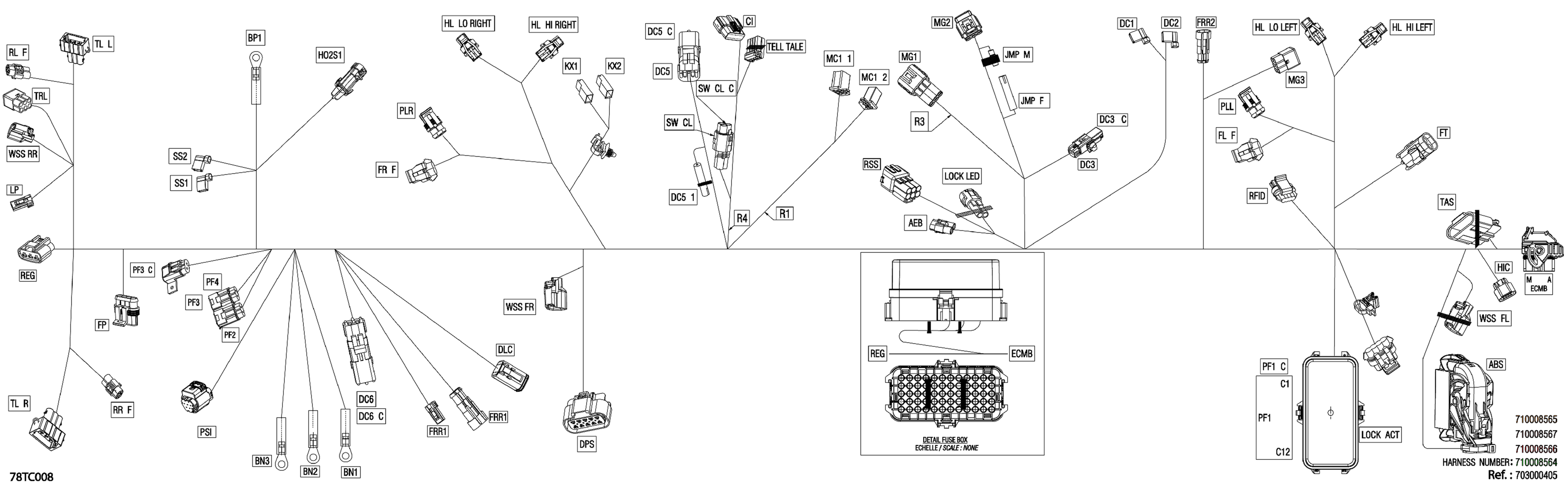

Main Wiring Harness

710008567

$849.20

ABS

RH Connector Cover

710002772

$4.60

ABS

Housing

710002768

$17.66

ABS

Plug

710001258

$3.98

ABS

Wire Seal

278000999

$2.55

ABS

Wire Seal

710001159

$6.45

ABS

Wire Seal

710006230

$1.37

ABS

Female Terminal

710000836

$5.46

ABS

Female Terminal

710000837

$4.32

ABS

Terminal

710002773

$1.83

ABS

Terminal

710002775

$0.69

ABS

Terminal

710005369

$6.45

AEB

Sumitomo Female Connector 2 Cavities

710008152

$9.29

AEB

Wire Seal

710000402

$4.42

AEB

Female Terminal

409012100

$3.73

BN1

Terminal

710000913

$5.46

BN2

Open Barrel Terminal

278001392

$4.12

BN3

Open Barrel Terminal

278001392

$4.12

BP1

Open Barrel Terminal

278001392

$4.12

Cl

Female Housing 20 Circuits

278002858

$20.12

Cl

Sealing Cap

278002860

$1.42

Cl

Female Terminal

515178018

$0.78

D2

Diode

409012700

$10.83

DC1

Female Terminal

409010300

$4.12

DC2

Female Terminal

409010300

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 C

Male Housing, 2 Circuits

710000667

$7.48

DC5

Male Connector, 2 Circuits

278000220

$11.02

DC5

Wire Seal

278001065

$6.03

DC5

Female Terminal

278000223

$2.55

DC5 1

Insulated Sheath

278001007

$3.22

DC5 1

Female Terminal

710000421

$5.46

DC5 C

Clip

710000992

$4.00

DC5 C

Female Housing, 2 Circuits

278000217

$7.59

DC5 C

Wire Seal

278000216

$2.55

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Wire Seal

278001065

$6.03

DC6

Female Terminal

278000223

$2.55

DC6 C

Clip

710000992

$4.00

DC6 C

Female Housing, 2 Circuits

278000217

$7.59

DC6 C

Wire Seal

278000216

$2.55

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005438

$4.00

DLC

Female Terminal

710005439

$4.28

DPS

Female Housing

710004989

$7.22

DPS

Lock

710001222

$1.68

DPS

Lock | PACKARD 15430900

710005098

$1.54

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Terminal

710001873

$2.02

DPS

Female Terminal

278002187

$5.04

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Molex Housing, 48 Circuits

710001967

$136.12

ECMB

Plug

710001592

$2.12

ECMB

Plug

710001593

$2.12

ECMB

Female Terminal

710001589

$1.79

ECMB

Terminal

710001728

$5.91

ECMB

Female Terminal

710001727

$2.55

F11

Little Fuse, 25 Ampere

278002389

$4.42

FL F

Housing

710002177

$3.98

FL F

Lock

710002043

$0.85

FL F

Seal

278001482

$2.55

FL F

Female Terminal

710001134

$6.03

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Wire Seal

515176621

$7.00

FP

Female Terminal

278001014

$2.72

FP

Female Terminal

710001340

$5.11

FR F

Housing

710002177

$3.98

FR F

Lock

710002043

$0.85

FR F

Seal

278001482

$2.55

FR F

Female Terminal

710001134

$6.03

FRR1

Male Terminal Housing, 2 Circuits

409209400

$14.97

FRR1

Wire Seal

515176621

$7.00

FRR1

Male Terminal

515176164

$6.43

FRR2

Male Terminal Housing, 2 Circuits

409209400

$14.97

FRR2

Wire Seal

515176621

$7.00

FRR2

Male Terminal

515176164

$6.43

FT

Clip Bracket Connector (edge)

409210100

$2.00

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.46

HIC

Housing

710001928

$14.97

HIC

Lock

710001222

$1.68

HIC

Cap

710001225

$7.27

HIC

Seal

710001233

$2.55

HIC

Seal Wire

710001332

$2.72

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HL HI LEFT

Housing

710007660

$7.74

HL HI LEFT

Lock

710001152

$3.48

HL HI LEFT

Wire Seal

710001163

$5.10

HL HI LEFT

Female Terminal

710001164

$5.92

HL HI RIGHT

Housing

710007660

$7.74

HL HI RIGHT

Lock

710001152

$3.48

HL HI RIGHT

Wire Seal

710001163

$5.10

HL HI RIGHT

Female Terminal

710001164

$5.92

HL LO LEFT

Female Housing, 2 Circuits

515177192

$6.32

HL LO LEFT

Lock

710001152

$3.48

HL LO LEFT

Wire Seal

710001163

$5.10

HL LO LEFT

Female Terminal

710001164

$5.92

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$6.32

HL LO RIGHT

Lock

710001152

$3.48

HL LO RIGHT

Wire Seal

710001163

$5.10

HL LO RIGHT

Female Terminal

710001164

$5.92

HO2S1

Housing

710002466

$2.98

HO2S1

Lock

710002469

$1.98

HO2S1

Seal

278001482

$2.55

HO2S1

Terminal

710000736

$5.35

HO2S1

Gold Terminal

710002597

$2.98

JMP F

Insulated Sheath

278001007

$3.22

JMP F

Female Terminal

710000421

$5.46

JMP M

Insulated Sheath

278001008

$3.20

JMP M

Female Terminal

278002261

$6.20

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.48

KX1

Female Terminal

409010100

$5.46

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.48

KX2

Female Terminal

409010100

$5.46

LOCK LED

Wire Seal

710000402

$4.42

LOCK LED

Male Terminal

409011300

$5.78

LOCK LED

Male Terminal

409011300

$5.78

LOCK ACT

Housing-Female

710005392

$4.62

LOCK ACT

Lock

710005394

$3.68

LOCK ACT

Seal

278001482

$2.55

LOCK ACT

Female Terminal

710001134

$6.03

LP

Female Housing, 2 Circuits

515175658

$15.35

LP

Female Terminal

710003896

$1.75

MC1 1

Female Housing

710004047

$13.83

MC1 1

Terminal

710002315

$4.60

MC1 2

Female Housing

710004048

$14.75

MC1 2

Terminal

710002315

$4.60

MG1

Connector

710007097

$19.97

MG1

Wire Seal

710000402

$4.42

MG1

Male Terminal

409011300

$5.78

MG2

Connector

710007098

$10.98

MG2

Seal

409012300

$4.38

MG2

Wire Seal

710000402

$4.42

MG2

Female Terminal

409012100

$3.73

MG3

Female Housing 6 Circuits

710001445

$7.60

MG3

Wire Seal

710000402

$4.42

MG3

Female Terminal

409012100

$3.73

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Cap

710000840

$5.49

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

515177009

$5.11

PF1

Female Terminal

515177012

$5.11

PF1 C

Fuse Cover

710001026

$17.52

PF1 C

Fuses Decal

710008570

Unavailable

PF1 C

Foam

278002172

$5.49

PF1 C-SP1

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1 C-SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF1 C-SP3

Little Fuse, 10 Amperes

710000744

$7.24

PF1 C-SP4

Little Fuse, 20 Amperes

710000746

$6.77

PF1 C-SP5

Little Fuse, 25 Ampere

278002389

$4.42

PF1-F1

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F12

Fuse, 25 Amps

710002590

$18.43

PF1-F2

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1-F3

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F4

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F5

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F6

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F7

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F8

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F9

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F10

Little Fuse, 10 Amperes

710000744

$7.24

PF1-RY1

Relay, 30 AMP

515176774

$19.20

PF1-RY2

Relay

715900824

$16.22

PF1-RY3

Relay

715900824

$16.22

PF1-RY4

Relay, 30 AMP

515176774

$19.20

PF1-RY5

Relay, 30 AMP

515176774

$19.20

PF1-RY6

Relay

715900824

$16.22

PF2

Fuse

710001613

$7.24

PF2

Fuse Holder

278001325

$8.57

PF2

Female Terminal

710000113

$6.03

PF3

Clip

710000992

$4.00

PF3

Fuse

710001613

$7.24

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000357

$6.03

PF3 C

Fuse Holder Cap

278001326

$6.03

PF4

Fuse

710001613

$7.24

PF4

Fuse Holder

278001325

$8.57

PF4

Female Terminal

710000357

$6.03

PLL

Female Housing, 2 Circuits

409209500

$13.48

PLL

Wire Seal

515176621

$7.00

PLL

Female Terminal

710001340

$5.11

PLR

Female Housing, 2 Circuits

409209500

$13.48

PLR

Wire Seal

515176621

$7.00

PLR

Female Terminal

710001340

$5.11

PSI

Housing

710005811

$17.66

PSI

Cap

710005946

$3.98

PSI

Seal

710005836

$3.98

PSI

Terminal

710005835

$3.98

R1

Resistor

710005179

$2.75

R3

Resistor

710007300

$2.75

R4

Resistor

710008735

$3.68

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Cap

710000882

$9.19

REG

Seal

710001932

$3.15

REG

Terminal

710001934

$4.51

RFID

Housing

710001161

$9.15

RFID

Lock

710001162

$3.28

RFID

Wire Seal

710001163

$5.10

RFID

Female Terminal

710001164

$5.92

RL F

Wire Seal

710000402

$4.42

RL F

Female Terminal

409012100

$3.73

RR F

Wire Seal

710000402

$4.42

RR F

Female Terminal

409012100

$3.73

RSS

Male Terminal Housing, 6 Circuits

710000835

$16.89

RSS

Wire Seal

710000402

$4.42

RSS

Male Terminal

409011300

$5.78

SS1

Female Terminal

409010300

$4.12

SS2

Female Terminal

409010300

$4.12

SW CL

Wire Seal

710000402

$4.42

SW CL

Male Terminal

409011300

$5.78

SW CL C

Female Terminal Housing, 3 Circ.

710000153

$10.14

SW CL C

Cap

710000080

$6.48

TAS

Housing

710001231

$12.05

TAS

Lock 6 Positions

710005296

$0.77

TAS

Seal

710001233

$2.55

TAS

Terminal

710001224

$3.02

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$8.02

TELL TALE

Female Terminal

515175231

$4.12

TL L

Connector, 3 Positions

710003167

$9.22

TL L

Seal

415128501

$1.51

TL L

Female Terminal

278000998

$3.48

TL R

Connector, 3 Positions

710003167

$9.22

TL R

Seal

415128501

$1.51

TL R

Female Terminal

278000998

$3.48

TRL

Female Housing, 6 Circuits

710000081

$8.29

TRL

Wire Seal

710000402

$4.42

TRL

Seal

409012300

$4.38

TRL

Female Terminal

409012100

$3.73

WSS FL

Connector 2 Pins

710005669

$2.75

WSS FL

Seal

710005689

$1.83

WSS FL

Female Terminal 18-20 AWG

515178348

$1.54

WSS FR

Connector 2 Pins

710005669

$2.75

WSS FR

Seal

710005689

$1.83

WSS FR

Female Terminal 18-20 AWG

515178348

$1.54

WSS RR

Connector 2 Pins

710005669

$2.75

WSS RR

Seal

710005689

$1.83

WSS RR

Female Terminal 18-20 AWG

515178348

$1.54

Can-Am Outlander T MAX 1000 EFI - XTP - T Regulation, 2023 Electric - Main Harness - 710008567 Diagram

Main Wiring Harness

RH Connector Cover

Housing

Plug

Wire Seal

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Terminal

Terminal

Terminal

Sumitomo Female Connector 2 Cavities

Wire Seal

Female Terminal

Terminal

Open Barrel Terminal

Open Barrel Terminal

Open Barrel Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Diode

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Insulated Sheath

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Female Housing

Lock

Lock | PACKARD 15430900

Plug

Wire Seal

Seal

Terminal

Female Terminal

Cover, 48 positions

Molex Housing, 48 Circuits

Plug

Plug

Female Terminal

Terminal

Female Terminal

Little Fuse, 25 Ampere

Housing

Lock

Seal

Female Terminal

Female Housing, 4 Circuits

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Housing

Lock

Seal

Female Terminal

Male Terminal Housing, 2 Circuits

Wire Seal

Male Terminal

Male Terminal Housing, 2 Circuits
