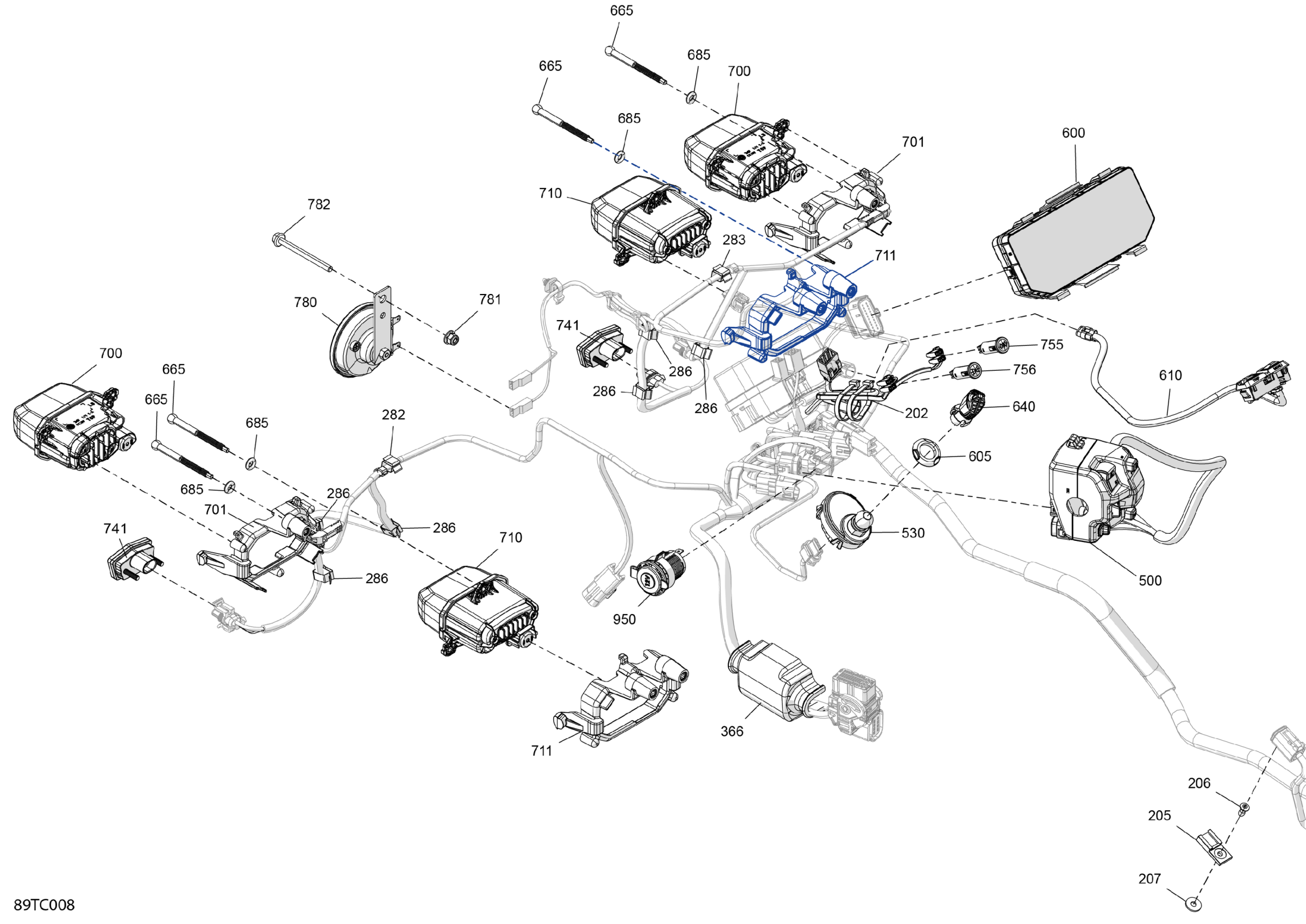

Can-Am Outlander T MAX 1000 EFI - XTP - T Regulation, 2023 Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$23.05

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

286

Clip

414227300

$1.45

366

Soft Protection Sleeve

710007255

$2.98

500

LH Front Multifunction Switch

710007609

$239.97

530

Terminal Dess One-Wire

515179240

$71.51

600

Multifunction Gauge

710005253

$992.28

605

Safety Nut (DESS Switch)

278002963

$2.72

610

Multifunction Switch

710008638

$64.58

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Ajustment Screw

710005837

$6.45

685

O-Ring

293300192

$3.85

700

Low Beam Light

710008088

$156.89

701

Exterior Headlight Support

710008396

$27.66

710

HIgh Beam Light

710006910

$156.89

711

Interior Headlight Support

710008394

$9.22

741

Amber Light Turn Signal

710007217

$17.66

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17
