Description

Price

35

Hex. Flange Elastic Nut M10

233201434

$1.63

40

Cargo Rack Center Support

705006812

$59.97

50

Hex. Flange Screw M8 X 20

207682044

$0.92

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

60

Hex. Flange Elastic Nut M8

233281414

$1.14

180

Rubber Bumper

293830005

$5.33

200

Shift Lever Grille Kit

715008678

$27.66

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

240

Flange Elastic Nut M6

233261434

$3.61

245

Air Inlet Grille

705016613

$24.58

246

Clip

517306478

$1.37

250

Fascia

705016526

$111.51

280

Front Bumper Support

705016893

$324.58

290

Lower Fender Support

705004565

$6.45

320

Sectional Bent Tube

705016640

$35.35

330

Sectional Bent Tube

705016641

$39.20

340

Lugage Rack Moulding

705004523

$23.05

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$18.43

350b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

350b1

Hex. Elastic Nut M8 Brass

232581200

$1.29

350c

Hex. Elastic Stop Nut M6

232561600

$0.92

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$20.74

360b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

360b1

Hex. Elastic Nut M8 Brass

232581200

$1.29

360c

Hex. Elastic Stop Nut M6

232561600

$0.92

370

Black, Torx Screw M6 X 35

250000646

$0.78

372

Flange Elastic Nut M6

233261434

$3.61

390

Insert Half Hex Body M6 x 1.0

250100199

$2.54

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

405

Screw K40 X 10

241140060

$1.25

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

420

Torx Screw M8 X 30

250000886

$1.74

430

Hex. Flange Screw M8 X 35

207683544

$1.39

460

Edge Clip

517302785

$0.70

470

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

600

Front Skid Plate

705016528

$46.12

605

Screw M4 X 16

250000725

$2.87

610

Socket Screw M10 x 30 | XT

205003044

$2.61

640

Ring

705004497

$3.98

675

Phillips Screw K40 X 16

250000723

$0.81

680

Deflector Body Panel Kit

715007294

$51.51

685

Deflector Body Panel

705014061

$39.97

686

Push Nut

732610072

$1.72

690

Engine Cover

705003444

$20.74

700

Gauge Support

705013984

$18.43

703

Extruded Panel Nut M4 X 0.7

250100143

$6.77

705

Front Gauge Trim

705013985

$20.74

708

Torx Head Screw M4 X 16

250000797

$1.63

720

Grommet

705003264

$3.43

730

RH Wheel Arch Protector

705013925

$16.89

740

RH Front Wheel Arch Protector

705017002

$15.22

750

LH Wheel Arch Protector

705013924

$16.89

760

LH Front Wheel Arch Protector

705017001

$15.22

770

Tuflok Plastic Rivet

293150230

$1.21

780

Rubber Cover

293250242

$5.38

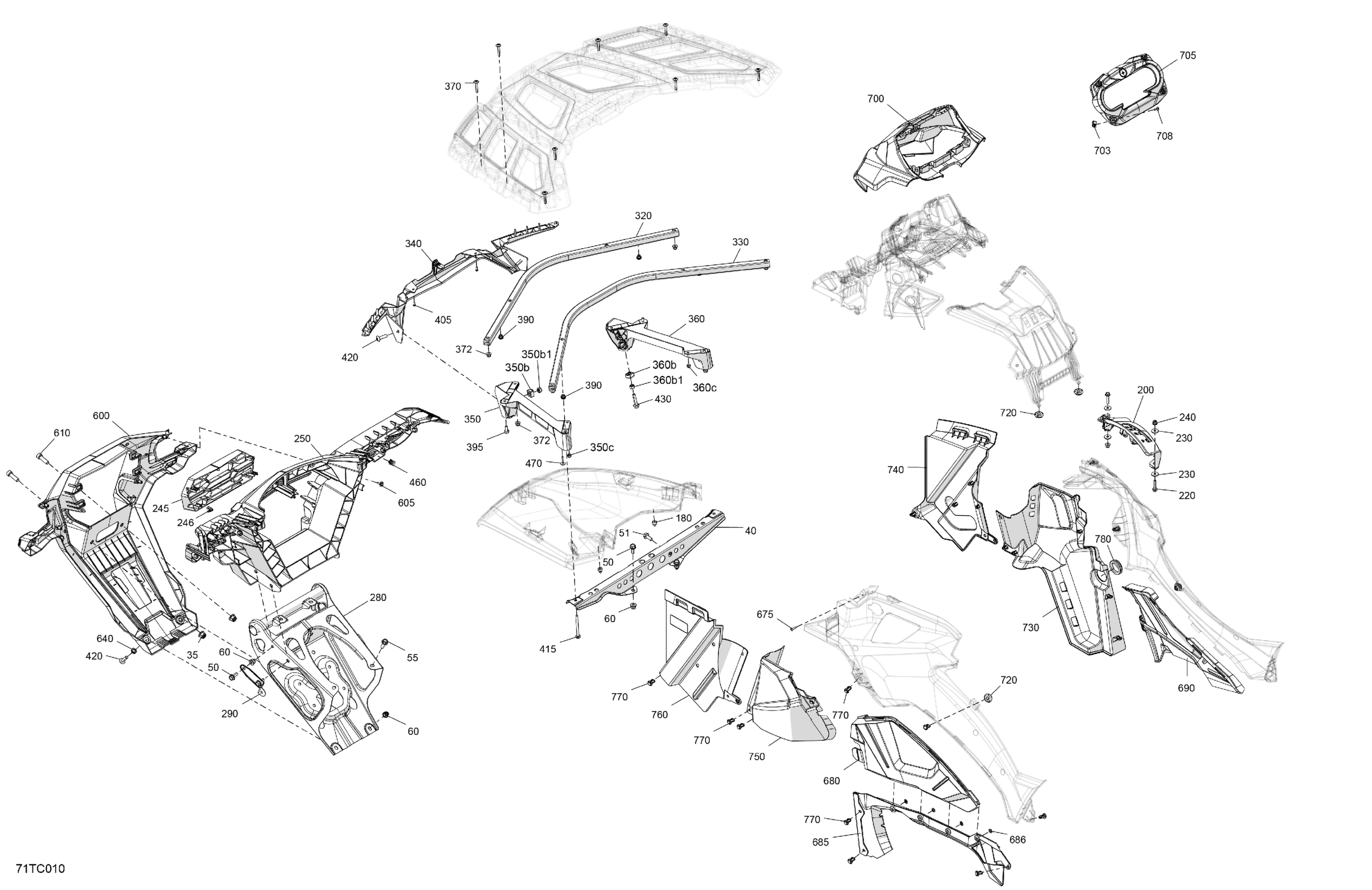

Can-Am Outlander T MAX 1000 EFI - XTP - T Regulation, 2023 Body - Front Section Diagram
