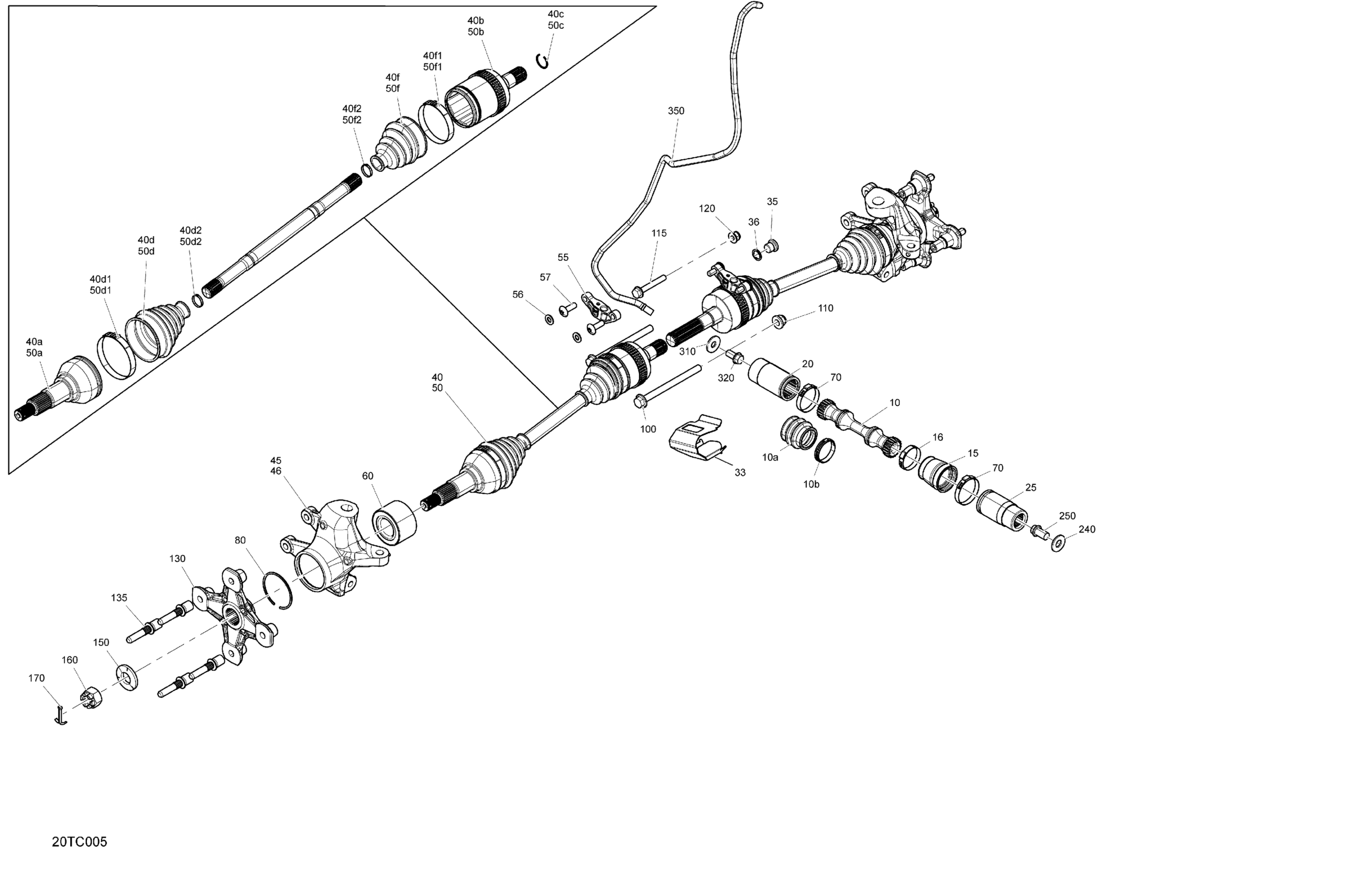

Can-Am Outlander T MAX 1000 EFI - XTP - T Regulation, 2023 Drive - Front - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$203.05

10a

Rubber Boot

715900118

$13.83

10b

Oetiker Gear Clamp 36.1MM

509000045

$3.55

15

Rubber Boot

705401093

$4.60

16

Oetiker Gear Clamp

293650199

$7.16

20

Coupling Sleeve

705401969

$27.66

25

Front Bushing Shaft Kit | 4X4

703500678

$104.58

25a

Front Bushing Shaft Kit | 4X4

703500678

$104.58

25b

Wear Ring | 4X4

705400036

$25.35

33

Deflector | Not shown

705402903

$17.66

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40

RH CV Joint | Includes 40 to 40j

705402242

$233.82

40a

CV Joint

705401344

$253.82

40b

RH Plunging Joint

715900602

$106.12

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401345

$41.51

40d1

Oetiker Clamp

715900282

$4.39

40d2

Oetiker Clamp, Small

715900283

$4.39

40f

Boot Kit, Differential Side

705401346

$41.51

40f1

Oetiker Clamp, Large

715900284

$4.39

40f2

Oetiker Clamp, Small

715900261

$4.39

45

LH Knuckle

705403307

$175.35

46

RH Knuckle

705403308

$175.35

50

LH CV Joint | Includes 50 to 50j

705402241

$233.82

50a

CV Joint

705401344

$253.82

50b

LH Plunging Joint

715900603

$96.89

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50d1

Oetiker Clamp

715900282

$4.39

50d2

Oetiker Clamp, Small

715900283

$4.39

50f

Boot Kit, Differential Side

705401346

$41.51

50f1

Oetiker Clamp, Large

715900284

$4.39

50f2

Oetiker Clamp, Small

715900261

$4.39

55

Sensor Support

705402088

$2.98

56

Flat Washer 8 mm

234081410

$0.69

57

Torx Truss M8 X 25

250000874

$1.74

60

Ball Bearing

293350150

$51.93

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 125

230602546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Hex. Flange Screw M8 X 55

207685544

$4.41

120

Hex. Flange Elastic Nut M8

233281414

$1.14

130

Wheel Hub

705503257

$101.51

135

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400071

$1.74

240

Flat Washer M12

250200102

$1.74

250

Hex Flange Screw M12 X 20

250001042

$1.56

310

Flat Washer M10 | 4X4

250200014

$1.17

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42
