Description

Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$220.74

10a

RH Organic Brake Pad Kit

705601014

$40.74

10b

Pin Set

705601016

$9.98

10c

Bleeding Screw

705601017

$6.45

10d

Retaining Spring

705601018

$7.98

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$220.74

20a

Pin Set

705601016

$9.98

20b

Bleeding Screw

705601017

$6.45

20c

Retaining Spring

705601018

$7.98

20d

LH Organic Brake Pad Kit

705601015

$40.74

30

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$212.28

30a

Lever Set

705601013

$59.97

30b

Clamp And Screw Kit

507032477

$23.05

30ba

Hex. Flange Screw M6 X 25

250000447

$2.06

30c

Cap Set

219800096

$23.05

30ca

Screw M4 X 20

415129356

$2.17

36

Brake Switch

705601669

$50.74

38

RH Brake Line

705601688

$55.35

39

LH Brake Line

705601689

$55.35

45

Brake Hose | Includes 45 to 45a

705601574

$46.12

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Washer

414920600

$1.52

64

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.98

81

Master Cylinder Hose

705602024

$69.20

82

Master Cylinder Hose | Includes 80 to 80a

705602029

$96.89

82a

Clamp

293650256

$4.36

86

RH Rear Hose | Includes 85 to 85a

705602028

$83.05

86a

Clamp

293650256

$4.36

95

Tubing 10 MM 1000MM Long

219704407

$2.20

95a

Tubing 10 mm

415079900

Unavailable

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$216.89

100a

Oil Tank

705601020

$36.89

100b

Oil Housing Hose

705601019

$15.35

105

Grommet

414036300

$2.22

110

Bushing

293900112

$10.14

115

Hex.Flange Screw M5 X 20

207652044

$1.56

120

Flat Washer

224060201

$1.15

125

Flange Elastic Nut M5

233251434

$1.66

130

VCM Module | Includes 130 to 130b

703500984

$1,453.82

130b

Shock Damper

710003279

$10.14

131

Bleeder Screw

705600502

$11.06

132

Bleeder Bolt Cap

705601190

$4.28

135

Shock Damper

710003279

$10.14

139

Hex. Flange Screw M6 X 16

210261640

$1.74

140

Pop Rivet 3/16"

390406500

$0.70

150

Brake Switch

705601669

$50.74

154

Manifold Support

705602015

$12.68

155

Manifold

705602043

$27.66

156

Pressure Sensor

705601578

$73.82

157

Pan Screw Forming, 7500C

250000690

$2.06

160

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

160a

Pin Set

705601016

$9.98

160b

Bleeding Screw

705601017

$6.45

160c

Retaining Spring

705601018

$7.98

160d

RH Organic Brake Pad Kit

705601014

$40.74

180

Hex. Flange Screw M10 X 20

207502046

$1.74

250

Deep Black, Brake Pedal

705602163

$147.66

260

Brake Pedal Spring

705600792

$9.22

265

Hex. Flange Screw M6 X 20

207662044

$1.66

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

O-Ring

293300144

$3.98

350

Shoulder Screw M10

250000513

$5.54

351

Hex. Flange Elastic Nut M10

233201436

$1.74

360

Hex. Flange Screw M8 X 55

207685544

$4.41

370

Hex. Flange Elastic Nut M8

233281414

$1.14

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Disc Brake

705600999

$86.12

440

Hex. Flange Screw M10 X 25

207502546

$1.74

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Brake Pedal Bracket

705202000

$36.89

501

Carriage Bolt, M8 X 20

207782044

$1.56

502

Hex. Flange Elastic Nut M8

233281414

$1.14

510

Front Hose Guard

705602016

$4.60

524

Torx Screw M6 X 16

250000755

$0.72

525

Pop Rivet 3/16"

390402400

$0.25

530

Front Hose Bracket

705600983

$12.68

535

Panel Nut M6 X 1.0

250100198

$1.73

536

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

540

Open Clamp

518321570

$6.03

541

Pop Rivet 3/16"

390402300

$0.64

550

Clamp

293650219

$0.85

560

Clamp

293650220

$0.85

570

Open Clamp

515175507

$1.47

571

Hex. Flange Screw M8 X 20

207682044

$0.92

572

Hex. Elastic Flange Nut M8

233281416

$1.25

575

Hose Clip

705601818

$16.89

580

Tubing 25 MM 1000MM Long

219704402

$12.69

580a

Tubing 25 mm

710009586

Unavailable

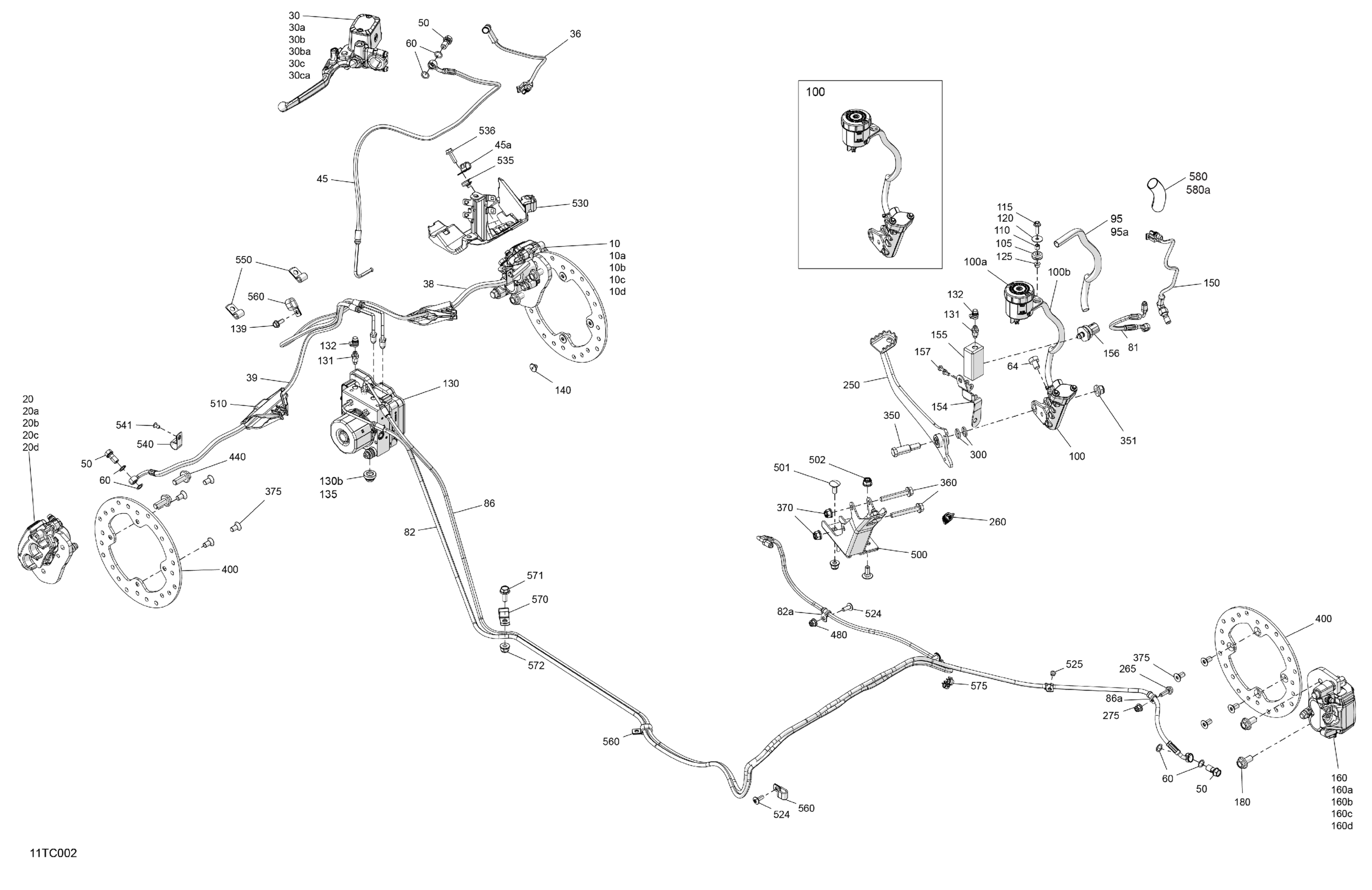

Can-Am Outlander T MAX 1000 EFI - XTP - T Regulation, 2023 Mechanic - Brake System Diagram

Tubing 10 mm

Tubing 25 mm
