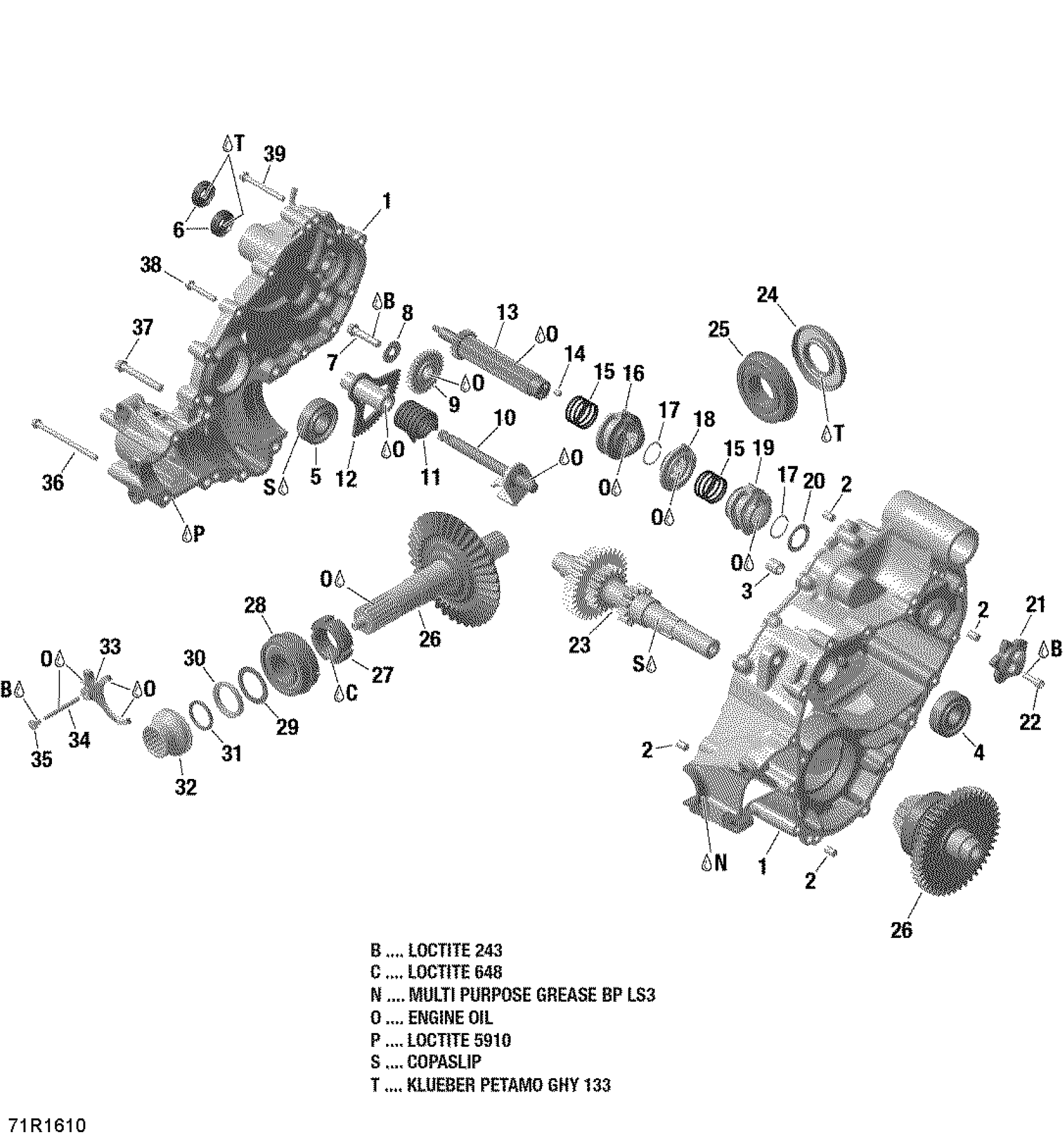

Can-Am Outlander - 1000 - PRO Package 0003UGA00 0003UGB00 Gear Box Output Shaft - GBPS - Package PRO Diagram

#

Description
Price

1>6

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing

420932816

$40.74

5

Ball Bearing 6204

420932433

$22.28

6

Oil Seal

420250452

$17.66

7

Torx Flange Screw M8 X 35

420440861

$3.17

8

Plain Washer

420227937

$2.75

9>12

Shift Shaft Ass'y | Includes 9a to 12

420620922

$91.51

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13>20

Shifting Drum Ass'y | Includes 13-20

420657235

$299.97

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Allen Screw M6 X 20

420241939

$0.68

23

Countershaft

420637707

$364.58

24

Oil Seal

420831955

$22.72

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Shifting Sleeve

420257674

$124.58

33

Shifting Fork

420257606

$46.12

33a

Needle Pin

420832650

$7.37

34

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

$3.57

35

Hex. Screw M6 X 8

420841580

$1.08

36

Torx Flange Screw M6 X 85

420641228

$6.11

37

Torx Flange Screw M8 X 55

420641213

$6.11

38

Torx Flange Screw M6 X 35

420440274

$0.83

39

Torx Flange Screw M6 X 55

420440702

$2.54
