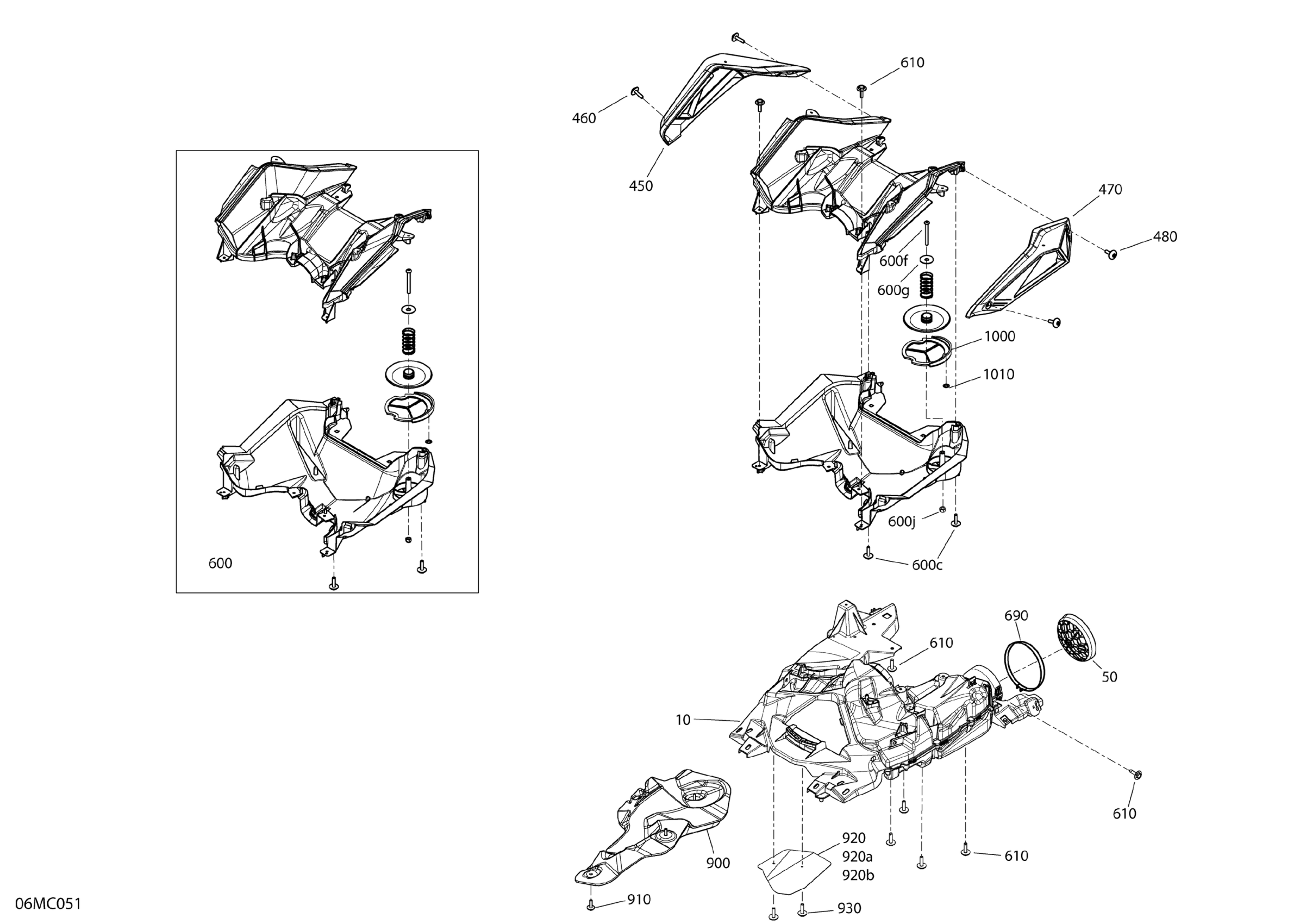

Ski-Doo MXZ 600 EFI - 40 - NEO - 2023 Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y

508001354

$78.43

Filter (Honeycomb)

508000967

$0.83

450

RH Air Filter (Nitex Mesh)

508000906

$36.89

460

Screw M4 X 16

250000889

$2.46

470

LH Air Filter (Nitex Mesh)

508000905

$36.89

480

Screw M4 X 16

250000889

$2.46

600

Air Duct Ass'y | Includes 600 to 600j

508000915

$94.58

600c

Screw M4 X 16

250000725

$2.87

600f

Socket Head Screw M4 X 40

205444056

$1.74

600g

Flat Washer

224060201

$1.15

600j

Elastic Stop Nut M4

232541414

$0.48

610

Screw M4 X 16

250000725

$2.87

610

Screw M4 X 16

250000725

$2.87

690

Gemi Clamp

293650247

$6.26

900

Heat Shield

508001207

$42.28

910

Screw M4 X 16

250000725

$2.87

920

Heat Shield Ass'y | Includes 920 to 920b

508001261

$64.58

920a

Heat Shield

508001240

$42.28

920b

Thermal Insulation

508001264

$1.82

930

Screw M4 X 16

250000725

$2.87

950

Foil

508001260

$4.15

1000

Pop Off Filter

508000815

$6.83

1010

Push Nut

250001189

$1.11
