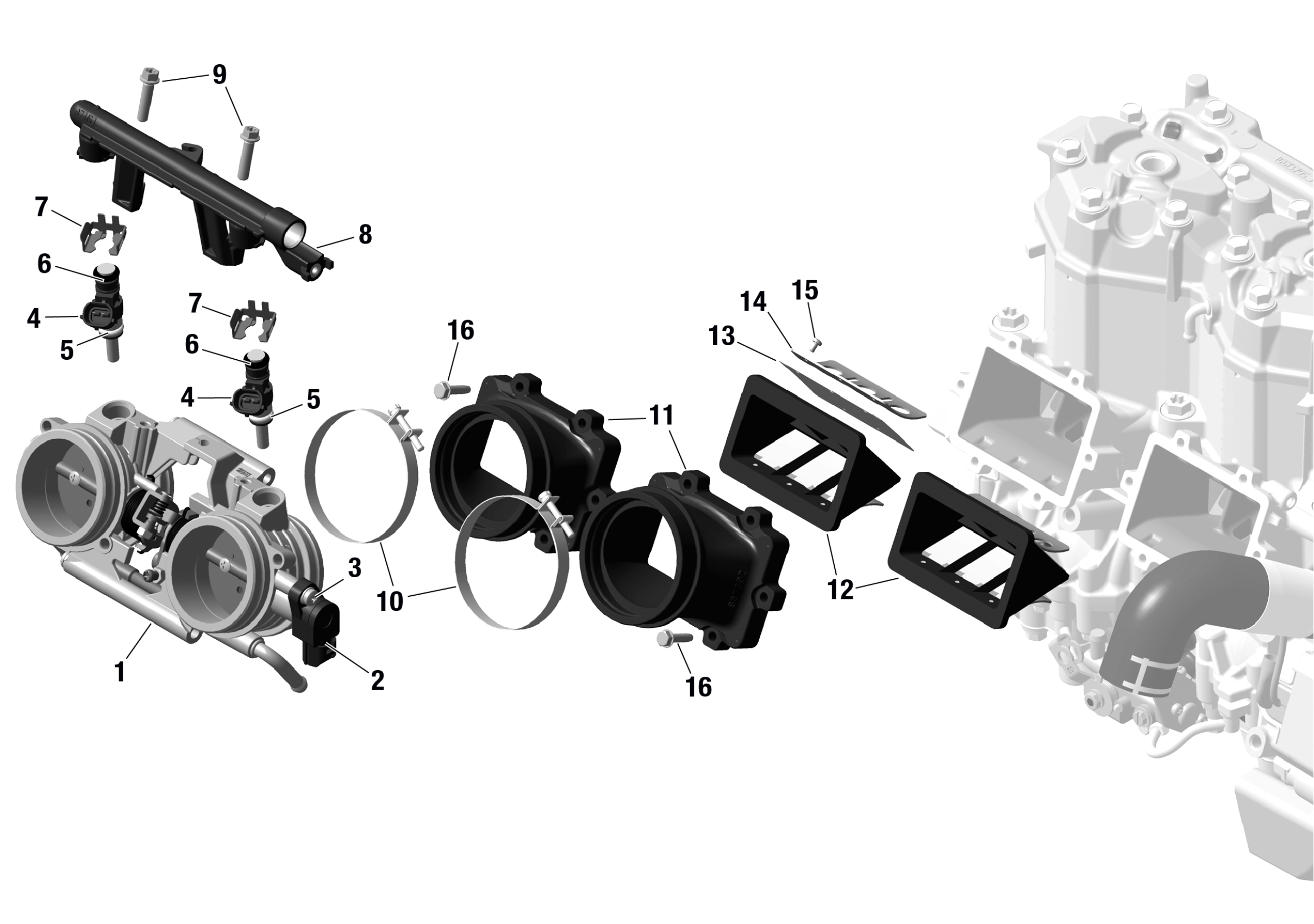

Ski-Doo MXZ 600 EFI - 40 - NEO - 2023 ROTAX - Electronic Fuel Injection Diagram

Description

Price

Throttle Body Socket Ass'y | Includes no. 1-3

420685759

$1,228.43

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$66.89

Not Available As Spare Parts

XXX

Unavailable

Injection Valve

420874855

$135.17

O-Ring

420831050

$4.51

O-Ring

420430775

$3.38

Injector Clip

420853030

$2.46

Fuel Rail

420874154

$23.05

Torx Flange Screw M6 X 25

420440234

$3.00

Clamp

420251208

$13.51

Intake Socket

420867392

$109.20

Reed Valve Ass'y

420924519

$50.74

Reed Pedal

420924532

$43.82

Reed Pedal Stop

420924539

$11.52

Phillips Screw M3 X 5

420941215

$1.42

Tapping Screw M5 X 20

420841556

$1.66
