Description

Price

10a1

Fixed Flange Ass'y

417224340

$175.35

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224874

$332.28

10a2b

Bushing

293250389

$9.22

10a2c

Circlip

293370137

$3.22

10a2d

Interior Pulley Roller

417224875

$16.89

10a2f

Exterior Pulley Roller

417224876

$27.66

10a2g

Pin

417224510

$9.22

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$0.88

10a3

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$179.97

10a3b

Stopper Spring

417224910

$9.88

10a3c

Spring Guide

417224614

$10.14

10a3d

Roller Pulley Ass'y

417224947

$35.35

10a3f

Axle - 10mm

417224204

$9.22

10a3g

Thrust Washer

417224868

$2.23

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

10b

Clutch Spring

417224330

$14.75

10c

Seat Spring

417224003

$10.17

10d

Circlip

293370116

$3.22

10f

Ramp Pulley 882 Ass'y

417224495

$32.28

10g

Pin Ramp

417224694

$9.22

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

10j

Coupling Flange

417224680

$43.05

10k

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

20

Conical Spring Washer M14

250200144

$3.63

30

Pulley Drive Bolt M14 X 144

417300522

$32.28

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127695

$429.20

100a3

Pulley Roller

417127016

$23.05

100a4

Pivot Stud

417127294

$13.58

100a5

Lock Washer 8 mm

250200009

$2.06

100a6

Spring Pin

250400070

$1.97

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100b3

Circlip

293370049

$4.71

100c

Cam Ass'y | Includes 100c to 100c3

417127420

$134.99

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100c3

Circlip

293370049

$4.71

100d

Beige, Spring

417127242

$20.74

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

100g

Calibration Ass'y

415129604

$22.49

100h

Socket Screw M5 X 25

250000981

$1.34

100j

Flat Washer M5

234051410

$0.44

100k

Elastic Stop Nut M5

232551414

$0.72

100m

Washer

417127155

$8.03

100n

Ball Bearing

504152574

Unavailable

200

Drive Belt

417300551

$178.19

300

Belt Guard

417300620

$69.97

330

Front Retaining Hook

417300525

$10.99

340

Avex Rivet

390909200

$0.29

360

CVT Cooling Duct

417300609

$25.35

370

Pop Rivet 3/16"

293150103

$0.54

450

Front Guard Support

417300583

$12.20

480

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

500

Rear Guard Support

417300633

$12.09

520

Hair Pin

114045200

$10.69

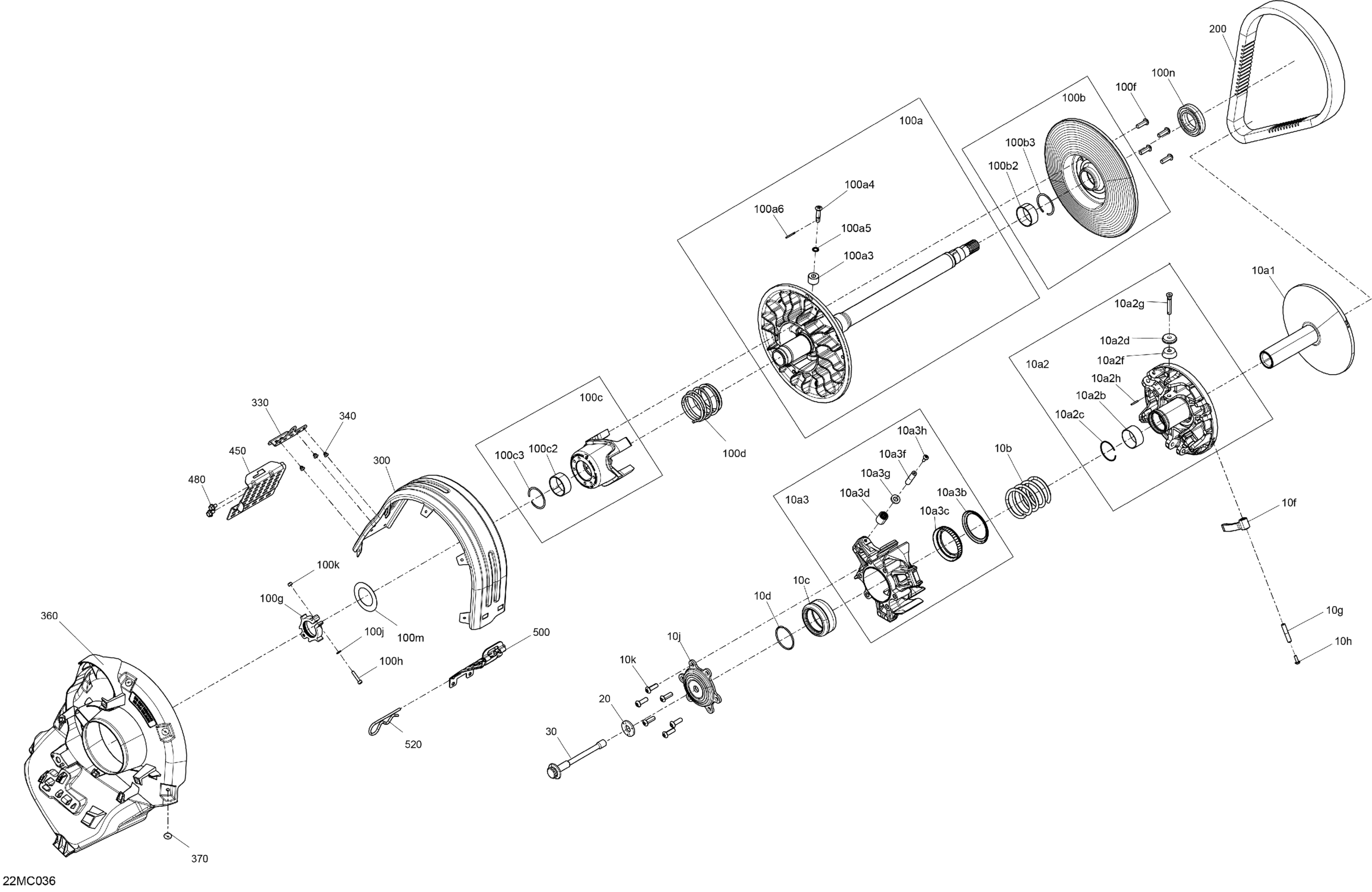

Ski-Doo EXPEDITION LE 900 ACE - 20 INCH - (AAPA-AAPB) - 2023 Drive - Pulley Diagram
