Description

Price

10

Liquid Titan, LH Front Fender

705016420

$189.97

10

Break Up Country, LH Front Fender | Camo Model

705017041

$189.97

15

Panel Nut M6 X 1.0

250100198

$1.73

20

Liquid Titan, RH Front Fender

705016423

$189.97

20

Break Up Country, RH Front Fender | Camo Model

705017040

$189.97

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Tuflok Plastic Rivet

293150230

$1.21

40

Washer

503192494

$3.11

100

Multi Purpose Support

705013766

$40.74

105

Torx Screw M6 X 20

250000722

$1.34

110

Panel Nut M6 X 1.0

250100198

$1.73

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.75

160

Liquid Titan, Front Hood

705016426

$350.74

160

Break Up Country, Front Hood | Model Break Up Country

705017042

$476.89

320

Grille

705013590

$24.58

330

Clip

517306478

$1.37

350

Emblem X

705017646

$10.98

355

Screw M4 X 16

250000725

$2.87

395

Screw M4 X 16

250000725

$2.87

400

Deep Black, Front Fascia

705013591

$213.05

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.11

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$11.15

455

RH Front Reflector

704905073

$11.15

510

Torx Screw M6 X 20

250000722

$1.34

520

Panel Nut M6 X 1.0

250100198

$1.73

525

Torx Screw M6 X 20

250000722

$1.34

530

Stainless Steel Flat Washer

234062670

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

860

LH Front Lateral Panel

705008152

$59.97

870

RH Front Lateral Panel

705008153

$59.97

935

Torx Screw K50 X 16

250000720

$1.39

940

Deep Black, LH Rear Body Panel

705013658

$106.12

945

Tuflok Plastic Rivet

293150230

$1.21

950

Deep Black, RH Rear Body Panel

705013659

$106.12

955

Tuflok Plastic Rivet

293150230

$1.21

960

Torx Screw M6 X 20

250000722

$1.34

970

Panel Nut M6 X 1.0

250100198

$1.73

975

Tuflok Plastic Rivet

293150230

$1.21

1000

Deep Black, LH Central Panel

705019037

$69.20

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1020

Deep Black, RH Central Panel

705019038

$73.82

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.23

1300

LH Rear Cage Cover Kit

715006542

$27.66

1330

Tuflok Plastic Rivet

293150230

$1.21

1335

Washer

503192494

$3.11

1400

RH Rear Cage Cover Kit

715006543

$26.12

1430

Tuflok Plastic Rivet

293150230

$1.21

1435

Washer

503192494

$3.11

1880

Tuflok Plastic Rivet

293150230

$1.21

2100

Tuflok Plastic Rivet

293150230

$1.21

4000

LH Front Fender Flare

705011518

$23.05

4010

RH Front Fender Flare

705011519

$23.05

4020

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4100

LH Central Fender Flare

705011522

$11.98

4110

RH Center Fender Flare

705011523

$14.75

4120

Torx Screw M6 X 25

250000758

$1.74

4125

Stainless Steel Flat Washer

234062670

$1.74

4130

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4140

Hex. Flange Elastic Nut M6

233261494

$1.26

5400

LH Rear Deflector

705016336

$47.66

5450

RH Rear Deflector

705016337

$47.66

710

Torx Truss Screw M6 X 25

250000807

$1.74

720

Stainless Steel Flat Washer

234062670

$1.74

770

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

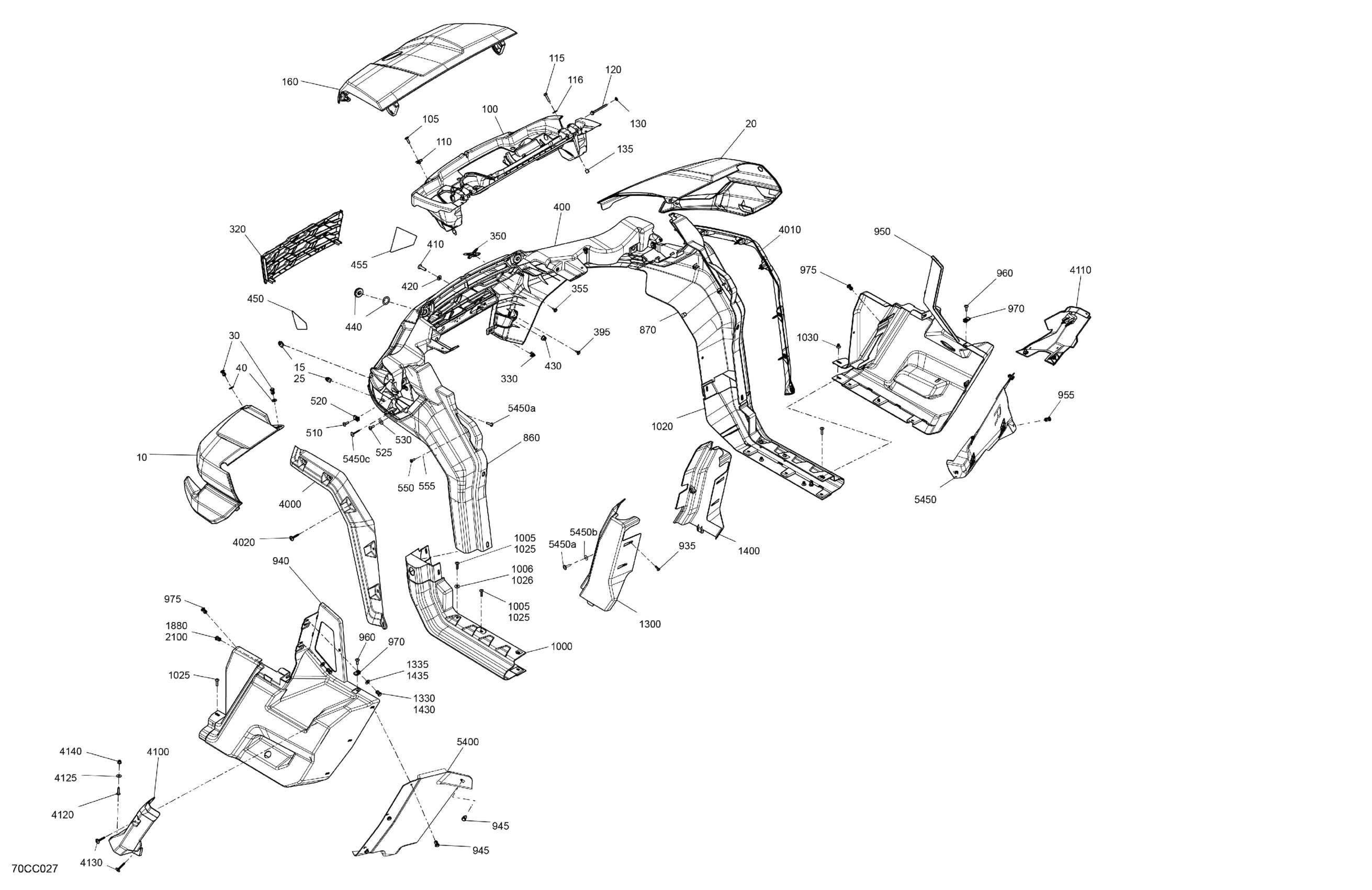

Can-Am Defender HD10 - XMR - International, 2023 Body - System Diagram
