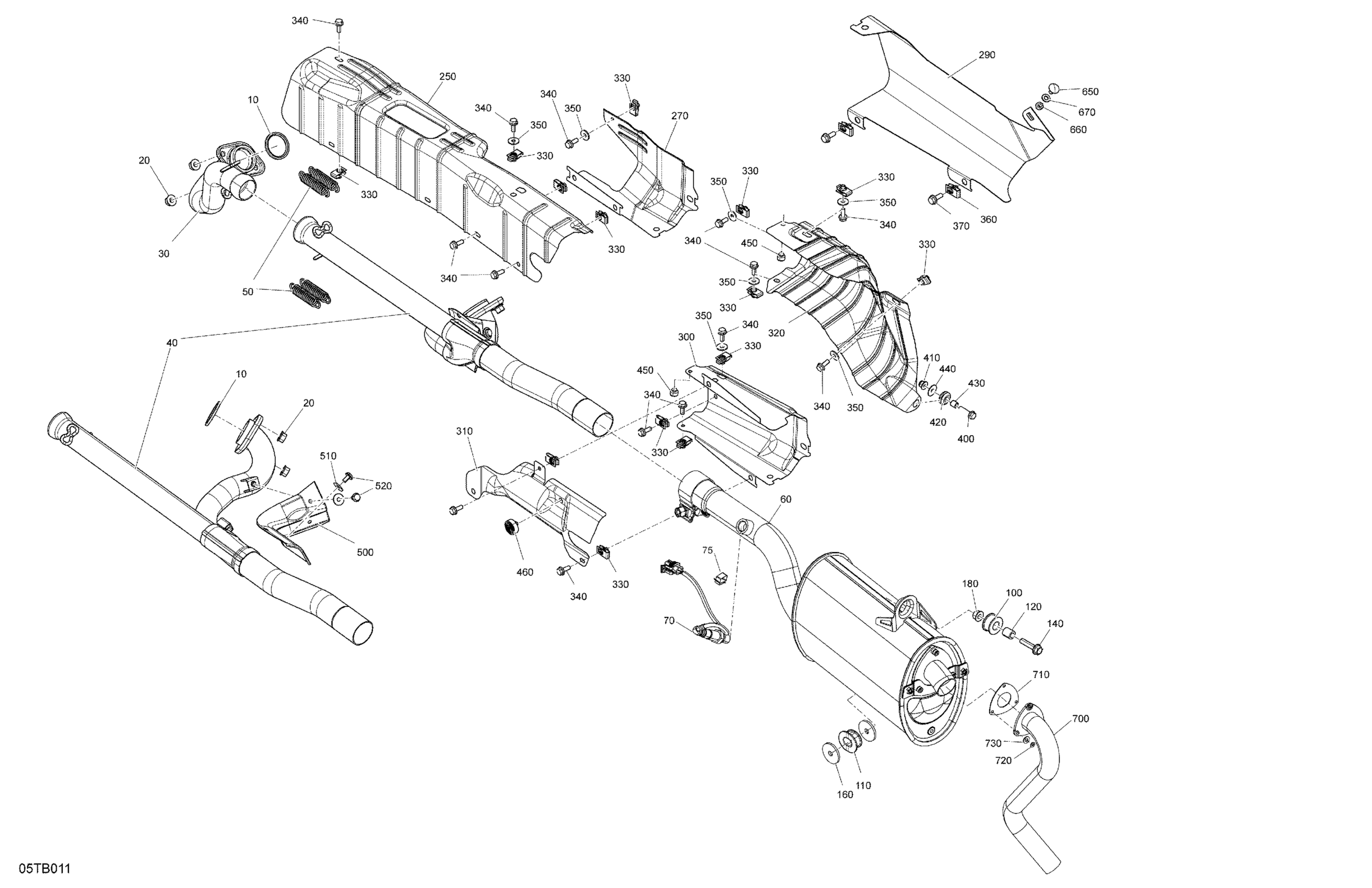

Can-Am Outlander T MAX 6X6 - 1000 EFI - XU+ - T Regulation, 2022 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$11.49

20

Hex. Flange Nut

233081436

$2.09

30

Front Head Pipe

707600627

$142.99

40

Rear Head Pipe

707601456

$206.49

50

Spring

415107100

$6.49

60

Exhaust Muffler | Includes 60 to 60e

707603043

$905.94

60a

Spark Arrestor

707601803

$49.99

60b

Gasket

707601799

$5.99

60c

Socket Head Screw M6 X 20

205062060

$2.39

60d

Muffler End Piece

715900143

$35.99

60e

Support

715900147

$3.29

70

Oxygen Sensor

707600872

$149.99

75

Clip

414227300

$1.69

100

Vibration Damper

707603323

$11.65

110

Rubber

707600448

$7.90

120

Spacer Bushing

293900116

$3.24

140

Hex. Flange Screw M8 X 35

207683544

$1.69

160

Flat Washer M8

250200158

$2.19

180

Hex. Flange Nut

233081436

$2.09

210

Washer

503032900

$3.39

220

Hex. Flange Screw M8 X 35

207683534

$2.19

230

Hex. Flange Nut

233081436

$2.09

250

Heat Shield

707603724

$13.99

270

Protector

707601484

$12.71

290

Heat Shield

707600996

$24.49

300

Protector

707601485

$12.71

310

Heat Shield

707602604

$19.99

320

Protector

707601425

$19.49

330

Panel Nut M6 X 1.0

250100198

$2.19

340

Hex. Flange Screw M6 X 16

207661644

$1.49

350

Flat Washer 6 mm

234062410

$1.49

360

Panel Nut M6 X 1.0

250100198

$2.19

370

Hex. Flange Screw M6 X 16

207661644

$1.49

400

Hex. Flange Screw M6 X 25

207662544

$1.49

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

420

Grommet

709000582

$4.79

430

Bushing

293900105

$7.79

440

Flat Washer

224060201

$1.49

450

Rubber Bumper

293830005

$8.29

460

Rubber Stopper

708000506

$7.55

500

Pipe Protector

707600932

$15.81

510

Flat Washer

250200082

$1.49

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.99

650

Carriage Bolt M6 X 12

207761244

$1.99

660

Elastic Stop Nut M6

232561434

$1.99

670

Flat Washer 6 mm

234061410

$1.49

700

Welded Pipe | Optional

707601604

$269.99

710

Gasket

707601799

$5.99

720

Lock Washer Helical M6

234161601

$1.49

730

Flat Washer 8 mm

234081410

$1.49
