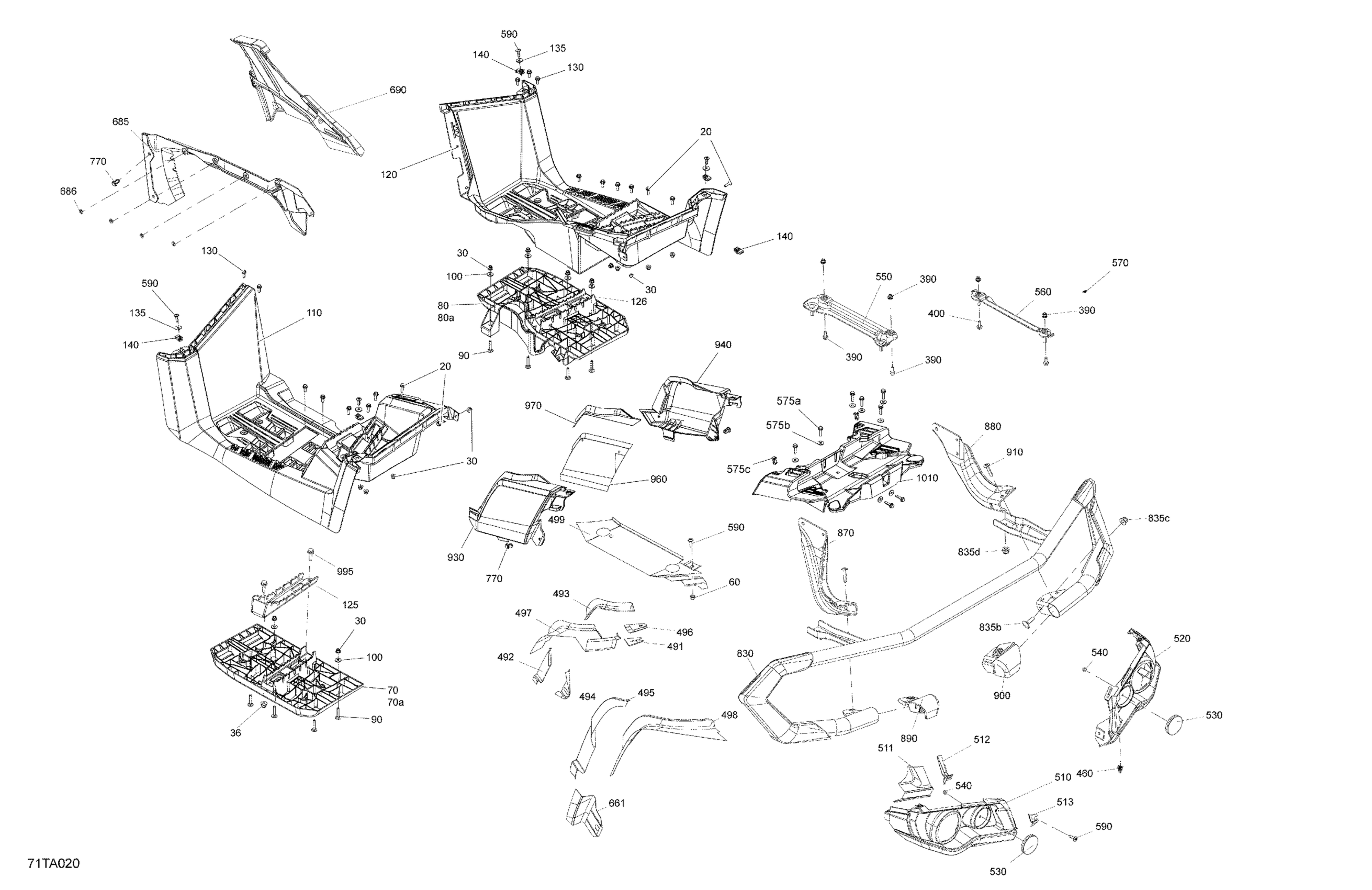

Can-Am Outlander MAX 850 EFI - XT_XTP_North Edition - 2021 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.83

30

Flange Elastic Nut M6

233261434

$3.61

36

Flange Elastic Nut M6

233261434

$3.61

60

Hex. Flange Elastic Nut M8

233281434

$1.74

70

LH Structural Footboard

705011540

$115.35

70a

Square Nut M6

232862412

$1.18

80

RH Structural Footboard

705011542

$98.43

80a

Square Nut M6

232862412

$1.18

90

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Footrest Max

705003525

$124.58

120

RH Footrest Max

705003521

$124.58

125

LH Footrest

705004352

$34.58

126

RH Footrest

705005395

$39.97

130

Hex. Flange Screw M6 X 20

207662054

$0.83

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

390

Insert Half Hex Body M6 x 1.0

250100199

$2.54

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

460

Edge Clip

517302785

$0.70

491

Heat Shield

707002456

$3.98

492

Heat Shield

707002457

$3.98

493

Heat Shield

707002458

$16.89

494

Heat Shield

707002459

$3.98

495

Heat Shield

707002460

$4.60

496

Heat Shield

707002461

$3.98

497

Heat Shield

707002462

$3.98

498

Heat Shield

707002583

$4.60

499

Heat Shield

707002464

$3.98

510

LH Rear Facia | North America, International

705006643

$14.71

511

Heat Shield

707002103

$9.29

512

Heat Shield

707002107

$2.31

513

Heat Shield

707002594

$0.91

520

RH Rear Facia | North America, International

705006650

$14.71

530

Red Reflector

705011221

$12.32

540

Flange Elastic Nut M5

233251434

$1.66

550

LH Support

705007277

$28.43

560

RH Support

705007278

$28.43

575a

Hex Flange Screw M6 X 25

250000841

$6.15

575b

Stainless Steel Flat Washer

234062670

$1.74

575c

Tuflok Plastic Rivet

293150230

$1.21

570

Push Nut

732610072

$1.72

590

Torx Screw M6 X 20

250000722

$1.34

661

Heat Shield

707002467

$4.60

685

Deflector Body Panel

705014061

$39.97

686

Push Nut

732610072

$1.72

690

Engine Cover

705003444

$20.74

770

Tuflok Plastic Rivet

293150230

$1.21

830

Deep Black, Rear Bumper

705017380

$239.97

910

Stainless, Torx Screw M6 X 30

250000842

$1.74

835b

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

835c

Flange Elastic Nut M6

233261434

$3.61

835d

Hex. Flange Elastic Nut M8

233281434

$1.74

890

LH Bracket | XT

705005094

$7.37

900

RH Bracket | XT

705005095

$7.37

870

LH Rear Bracket | XT

705008164

$34.58

880

RH Rear Bracket | XT

705008165

$34.58

930

LH Extension Panel

715001897

$27.66

940

RH Extension Panel

705004348

$27.66

960

Heat Shield

705006870

$5.52

970

Heat Shield

705006871

$5.52

995

Hex. Flange Screw M6 X 20

207662034

$1.74

1010

Seat Holder

705007948

$55.35
