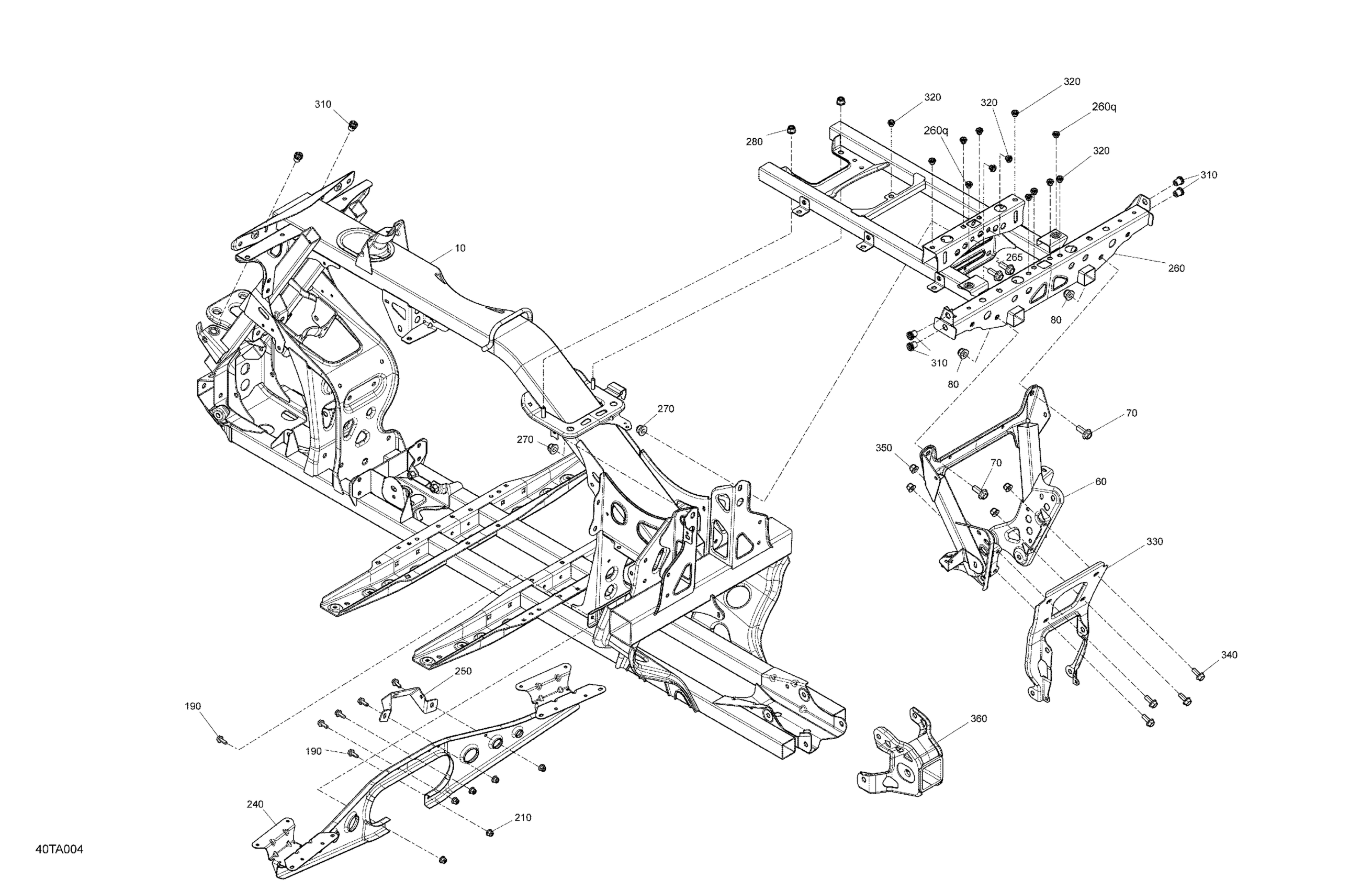

Can-Am Outlander 1000R EFI - XMR - NEO YELLOW - CE, 2021 Frame - System Diagram

Description

Price

Chassis

705209379

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$1.74

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M6 X 16

207661644

$0.61

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

240

Footrest Support

705210817

$79.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210822

$123.74

260q

Insert Half Hex Body M6 x 1.0

250100199

$2.54

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Insert Half Hex Body M6 x 1.0

250100199

$2.54

330

Rear Support

705203301

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25

360

Black Trailer Hitch Kit

715005839

$110.74
