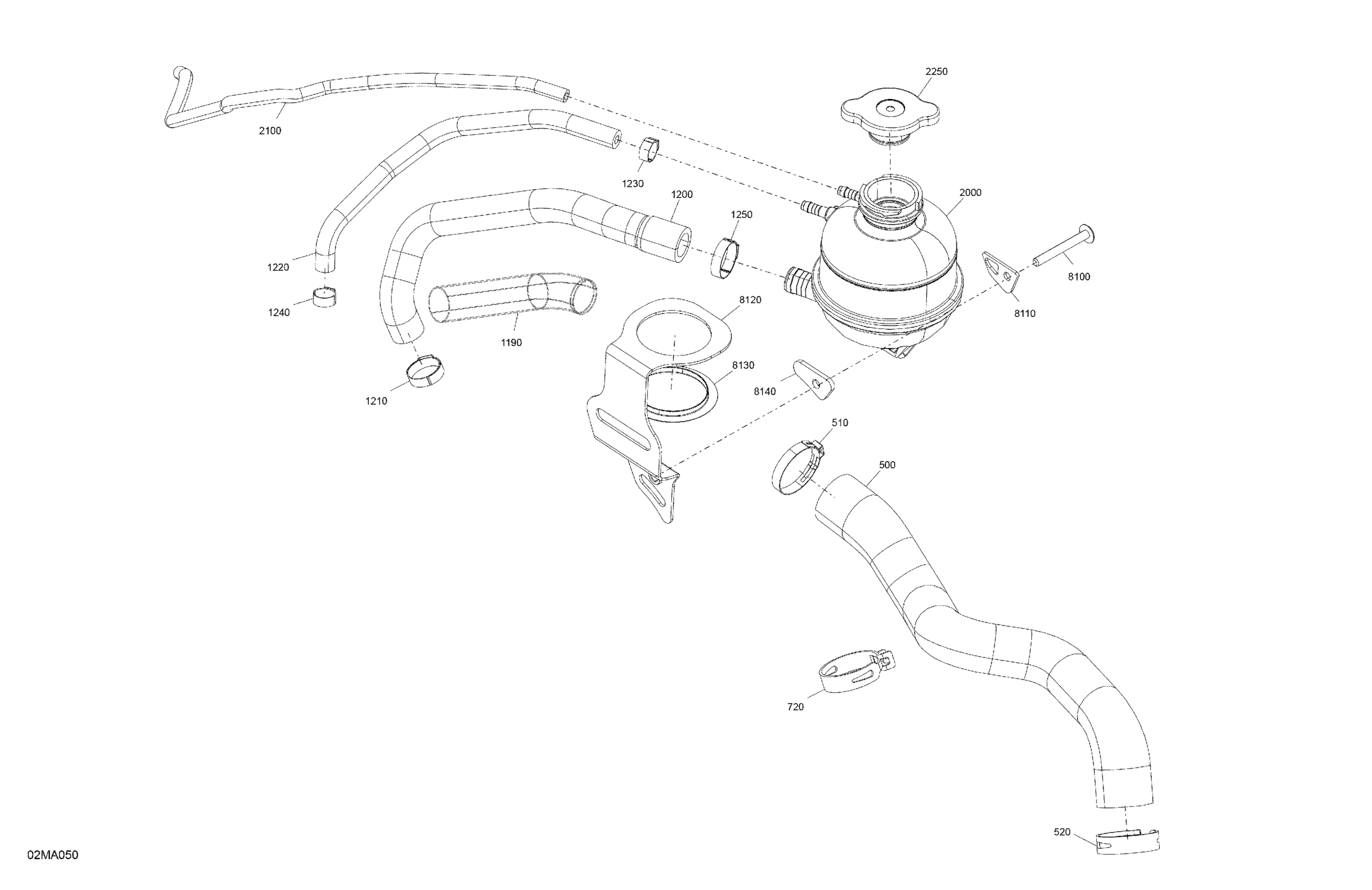

Ski-Doo MXZ 600RS - 2021 Engine - Cooling Diagram

#

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

Unavailable

510

Oetiker Gear Clamp

293650254

Unavailable

520

Norma Spring Clamp

293650264

Unavailable

720

Norma Spring Clamp

293650264

Unavailable

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1200

Hose

509001141

$23.82

1210

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

1220

Cooling Hose

509000968

$9.86

1230

Oetiker Clamp

293650046

Unavailable

1240

Oetiker Clamp

293650046

Unavailable

1250

Oetiker Clamp

509001041

Unavailable

2000

Coolant Tank Kit

861805527

Unavailable

2100

Hose 6 Mm 15000Mm Long

219704360

Unavailable

2250

Radiator Pressure Cap

509000180

Unavailable

8100

Torx Truss M6 X 50

250000868

Unavailable

8110

Coolant Tank Support

518330617

Unavailable

8120

Coolant Tank Support

509001185

Unavailable

8130

Swivel Abutment

417127116

Unavailable

8140

Coolant Tank Spacer

509001184

Unavailable
