Partiron

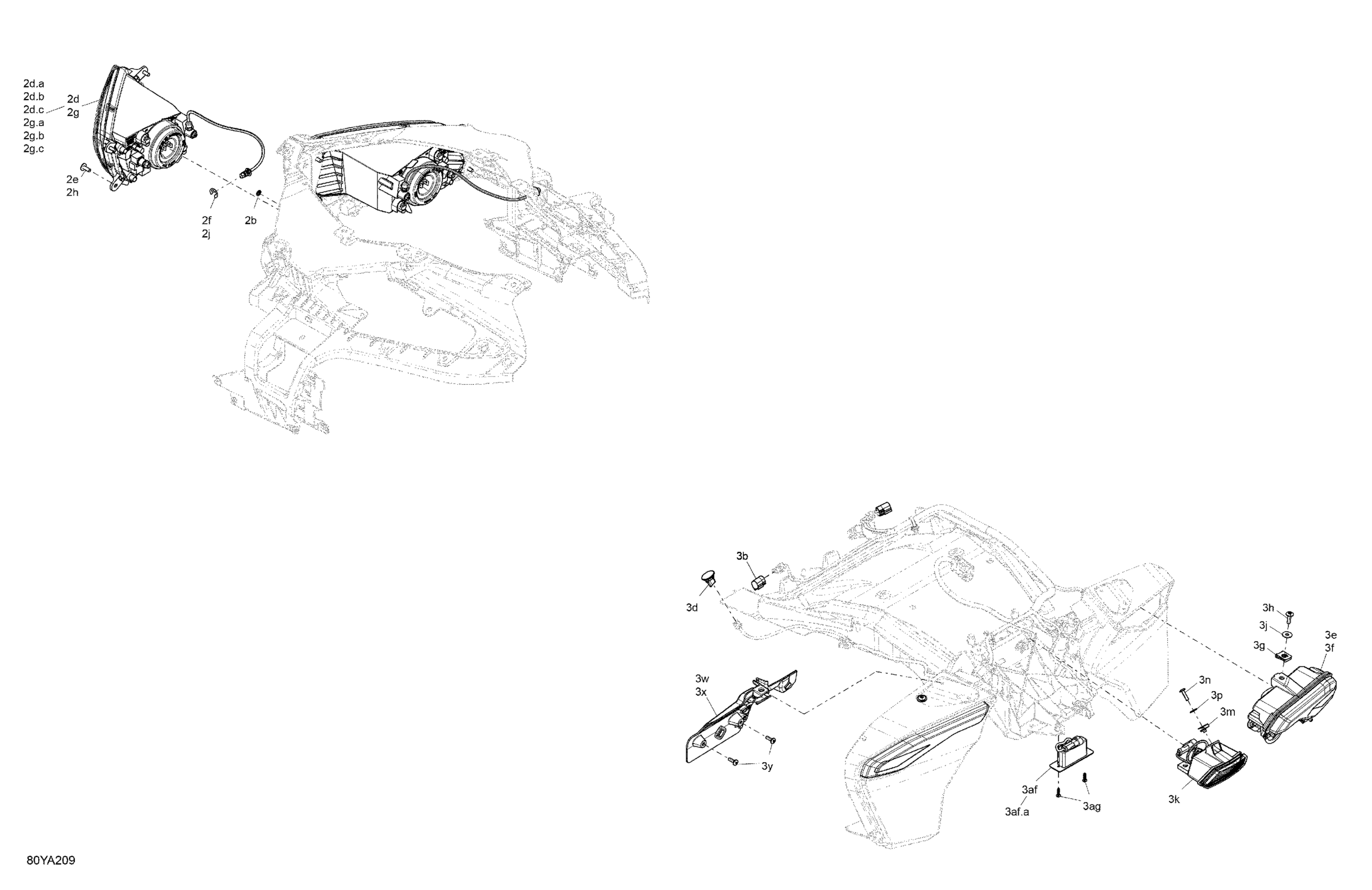

Can-Am F3 T - Barely Blue, 2021 Electric - Vehicle Lighting - North America Diagram

#

Description
Price

2b

Push Nut

250100034

$1.27

2d

LH Headlight | Includes 0b to 0b3

710006997

$239.99

2d.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2d.b

Rubber Cap Protector

219800280

$17.13

2d.c

Spring

219800281

$3.13

2e

Torx Truss Screw M6 X 16

250000721

$1.60

2f

E-Circlip

293370013

$0.60

2g

RH Headlight | Includes 0d to 0d3

710006998

$239.99

2g.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2g.b

Rubber Cap Protector

219800280

$17.13

2g.c

Spring

219800281

$3.13

2h

Torx Truss Screw M6 X 16

250000721

$1.60

2j

E-Circlip

293370013

$0.60

3b

Connector Plug | Includes 10h to 10h1

710004900

$15.87

3d

Cap

708400046

$3.89

3e

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

3f

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

3g

Panel Nut M6 X 1.0

250100208

$1.22

3h

Torx Screw M6 X 20

250000722

$1.54

3j

Flat washer M6

250200164

$0.96

3k

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

3m

Panel Nut M5 X 0.8

250000958

$4.00

3n

Torx Truss Screw M5 X 20

250000715

$2.00

3p

Stainless Steel Flat Washer M5

234052670

$0.96

3w

LH Connector Support

710004643

$12.99

3x

RH Connector Support

710004644

$11.49

3y

Torx Screw K50 X 16

250000720

$1.60

3af

License Light | Includes 0an to 0an1

710001451

$76.49

3af.a

Bulb

219800128

$2.46

3ag

Hex. Flange Screw K40 X 16

250001123

$2.00
