Description

Price

2b

Push Nut

250100034

$1.11

2d

LH Headlight | Includes 0b to 0b3

710006997

$240.00

2d.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

2d.b

Rubber Cap Protector

219800280

$17.66

2d.c

Spring

219800281

$3.23

2e

Torx Truss Screw M6 X 16

250000721

$1.39

2f

E-Circlip

293370013

$0.62

2g

RH Headlight | Includes 0d to 0d3

710006998

$240.00

2g.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

2g.b

Rubber Cap Protector

219800280

$17.66

2g.c

Spring

219800281

$3.23

2h

Torx Truss Screw M6 X 16

250000721

$1.39

2j

E-Circlip

293370013

$0.62

2k.a

Low Beam Ass'y

710006007

$350.00

2k.a.a

Halogen Bulb

415129249

$39.97

2k.b

Headlight Support

710007188

$15.00

2k.c

Adjustment Screw

710007200

$10.00

2k.d

Clip

293730095

$2.00

2k.e

Adapter

710007189

$4.00

2k.f

Torx-Truss Pt K40 X 16

250000759

$1.74

2k.g

Torx-Truss Pt K40 X 16

250000759

$1.74

2m.a

Low Beam Ass'y

710006007

$350.00

2m.a.a

Halogen Bulb

415129249

$39.97

2m.b

Headlight Support

710007188

$15.00

2m.c

Adjustment Screw

710007200

$10.00

2m.d

Clip

293730095

$2.00

2m.e

Adapter

710007189

$4.00

2m.f

Torx-Truss Pt K40 X 16

250000759

$1.74

2m.g

Torx-Truss Pt K40 X 16

250000759

$1.74

3b

Connector Plug | Includes 10h to 10h1

710004900

$16.00

3d

Cap

708400046

$4.00

3e

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

3f

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

3g

Panel Nut M6 X 1.0

250100208

$1.07

3h

Torx Screw M6 X 20

250000722

$1.34

3j

Flat washer M6

250200164

$0.83

3k

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

3m

Panel Nut M5 X 0.8

250000958

$3.48

3n

Torx Truss Screw M5 X 20

250000715

$2.06

3p

Stainless Steel Flat Washer M5

234052670

$0.83

3w

LH Connector Support

710004643

$13.00

3x

RH Connector Support

710004644

$11.00

3y

Torx Screw K50 X 16

250000720

$1.39

3af

License Light | Includes 0an to 0an1

710001451

$76.00

3af.a

Bulb

219800128

$2.99

3ag

Hex. Flange Screw K40 X 16

250001123

$2.06

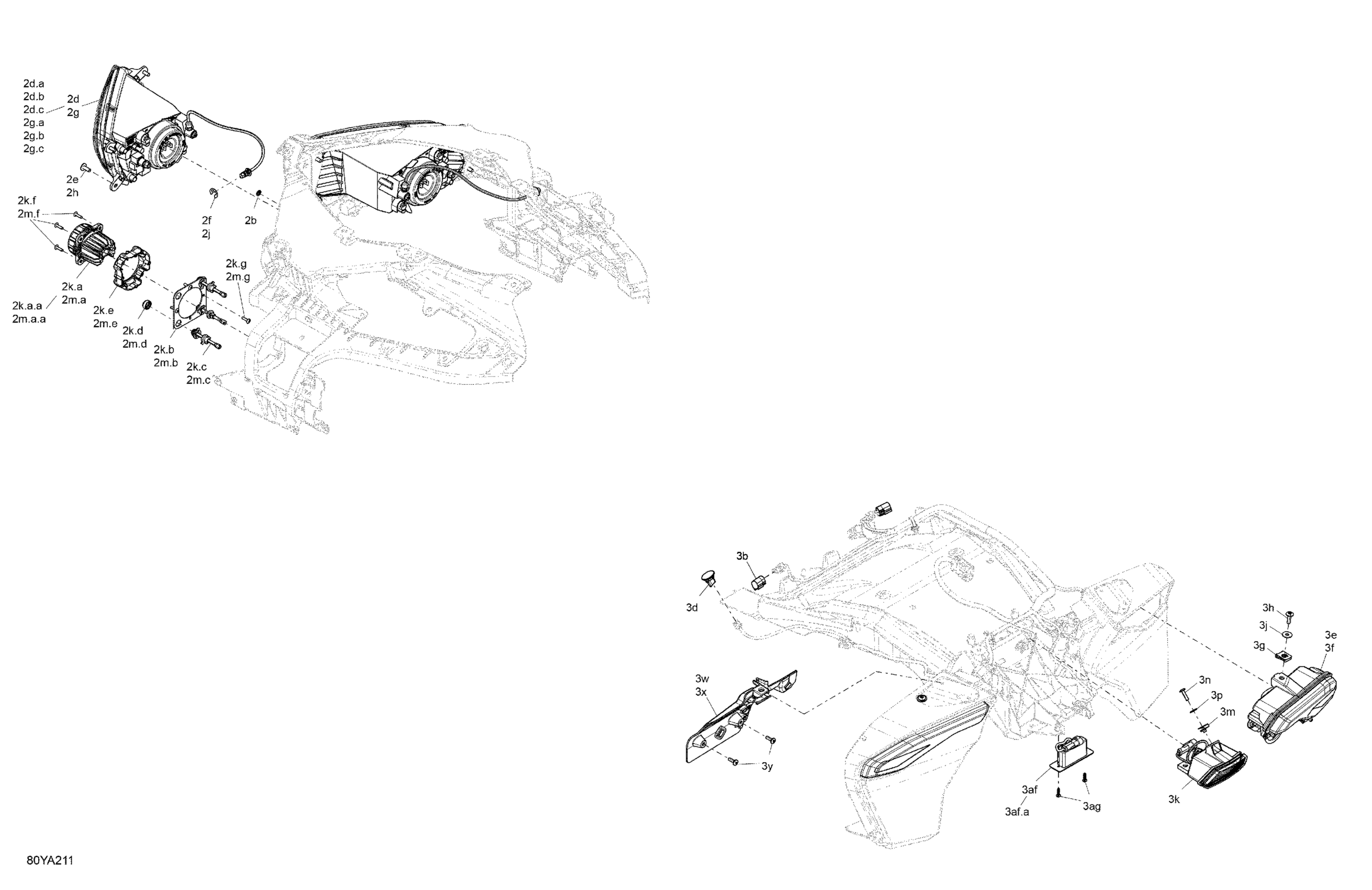

Can-Am F3 T - Barely Blue, 2021 Electric - Vehicle Lighting - Except North America Diagram

LH Tail Light | Includes 0k to 0k1

RH Tail Light | Includes 0m to 0m1

Back-Up Light | Includes 0k to 0k1
