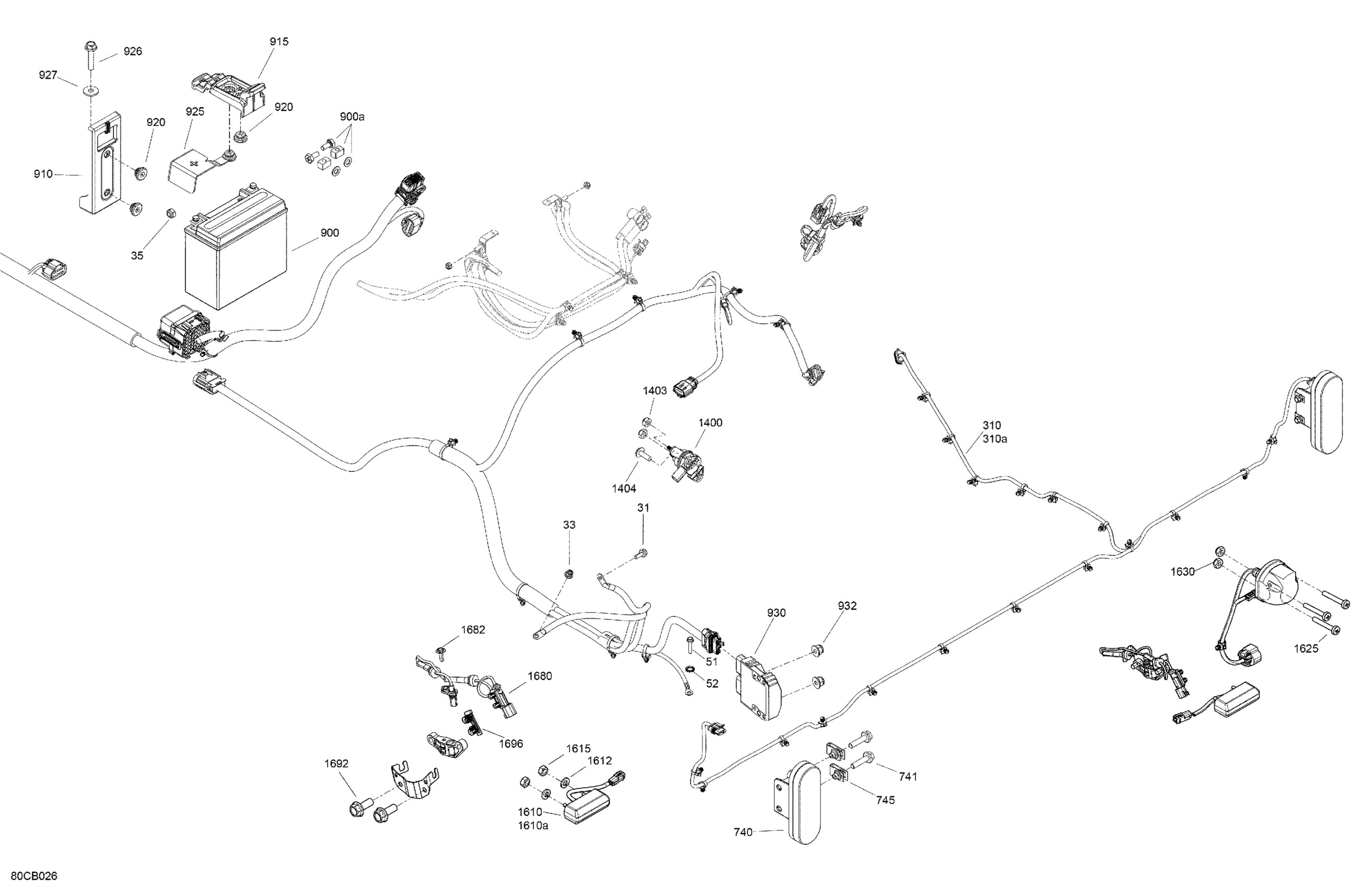

Can-Am Traxter T MAX HD10 - DPS - T Regulation, 2022 Electric - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Elastic Stop Nut M6, Brass

232561200

$3.51

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

External Serrated Lock Washer 6 mm

234461608

$0.92

310

Taillight Wiring Harness

710006499

$96.89

310a

Taillight Wiring Harness

710006748

$115.35

740

Tail Light

710004257

$92.28

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

910

Fixation Plate

710004788

$9.77

915

Fixation Plate

710004789

$6.92

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710006471

$2.75

926

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

927

Flat Washer 6 mm

234062410

$0.64

930

Voltage Regulator

710005842

$159.87

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1400

Starter Relay

278003012

$35.07

1403

Elastic Stop Nut M6, Brass

232561200

$3.51

1404

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

1610

License Light

710002055

$59.99

1610a

Bulb

219800128

$2.99

1612

Lock Washer Helical M6

234161601

$0.92

1615

Hex. Nut M6

232061600

$0.91

1625

Phillips Screw M5 X 35

208653560

$1.85

1630

Flange Elastic Nut M5

233251434

$1.66

1680

Speed Sensor

710006981

$78.43

1682

Screw PT Type K-50 X 16

250000959

$1.74

1692

Hex Screw Washer Head M8 X 20

207582054

$2.61

1696

Clip (double dart)

278002910

$11.06
