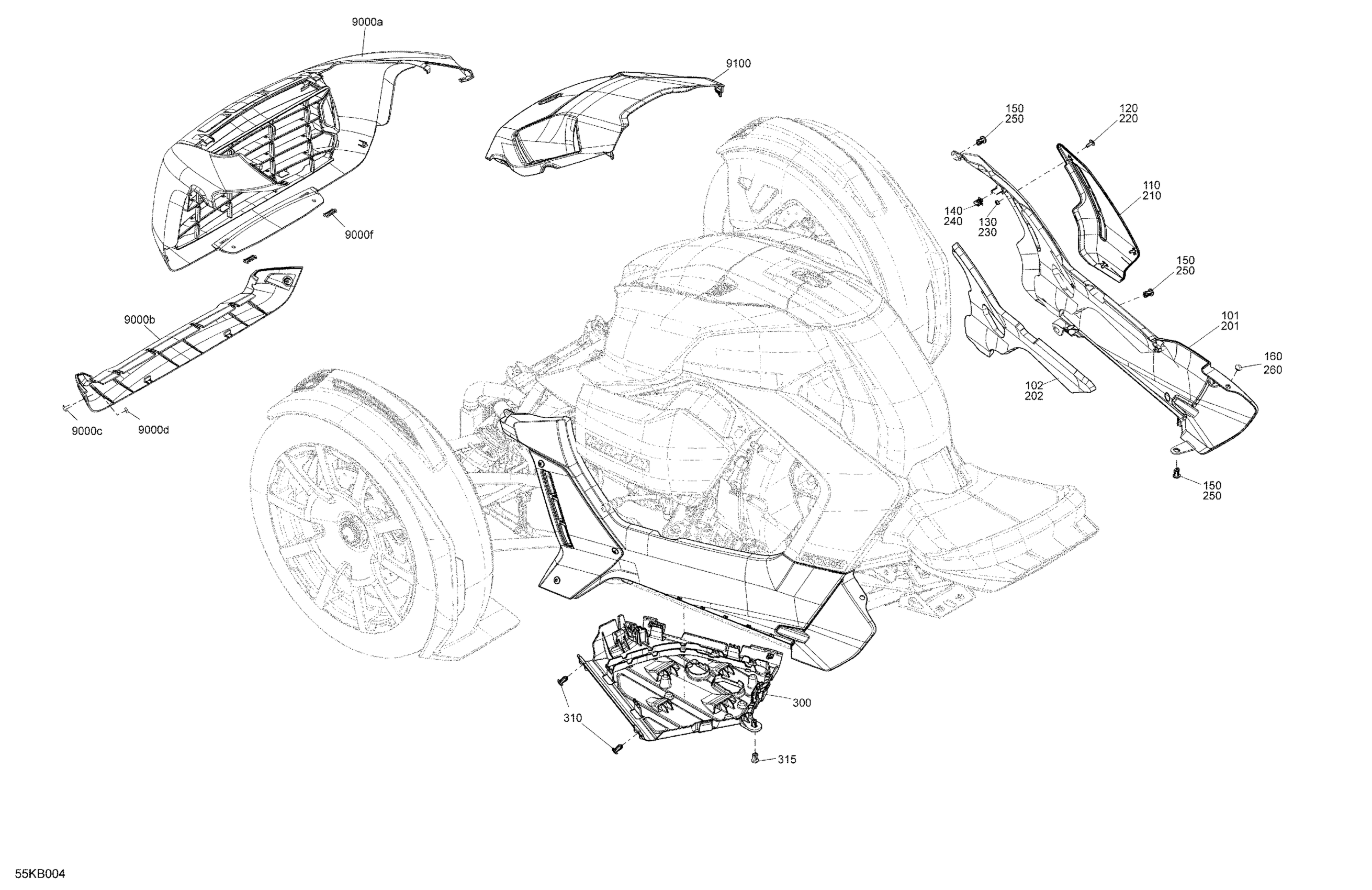

Can-Am RYKER S 900 ACE - 2022 Body - Lower Section Diagram

Description

Price

101

LH Rocker Panel Kit

219800526

$74.00

102

Acoustic Foam, LH rocker

705013940

$19.00

110

Carbon Black, LH Trim

705016520

$200.00

120

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

130

Square Nut M5 X 0.8

232852411

$1.00

140

Edge Clip

517302785

$0.70

150

Tuflok Plastic Rivet

293150230

$1.21

160

Black, Dart 10 mm

293730060

$4.42

201

RH Rocker Panel Kit

219800527

$74.00

202

Acoustic Foam

705013941

$19.00

210

Carbon Black, RH Trim

705016521

$200.00

220

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

230

Square Nut M5 X 0.8

232852411

$1.00

240

Edge Clip

517302785

$0.70

250

Tuflok Plastic Rivet

293150230

$1.21

260

Black, Dart 10 mm

293730060

$4.42

300

Skid Plate

705012364

$52.00

310

Tuflok Plastic Rivet

293150230

$1.21

315

Tuflok Plastic Rivet

293150230

$1.21

9000a

Deep Black, Front Fascia

705013345

$99.00

9000b

Lower Bumper Trim

705016804

$135.00

9000c

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

9000d

Square Nut M5 X 0.8

232852411

$1.00

9000f

Flat Clip

705004838

$8.00

9100

Deep Black, Hood

705011459

$34.00
