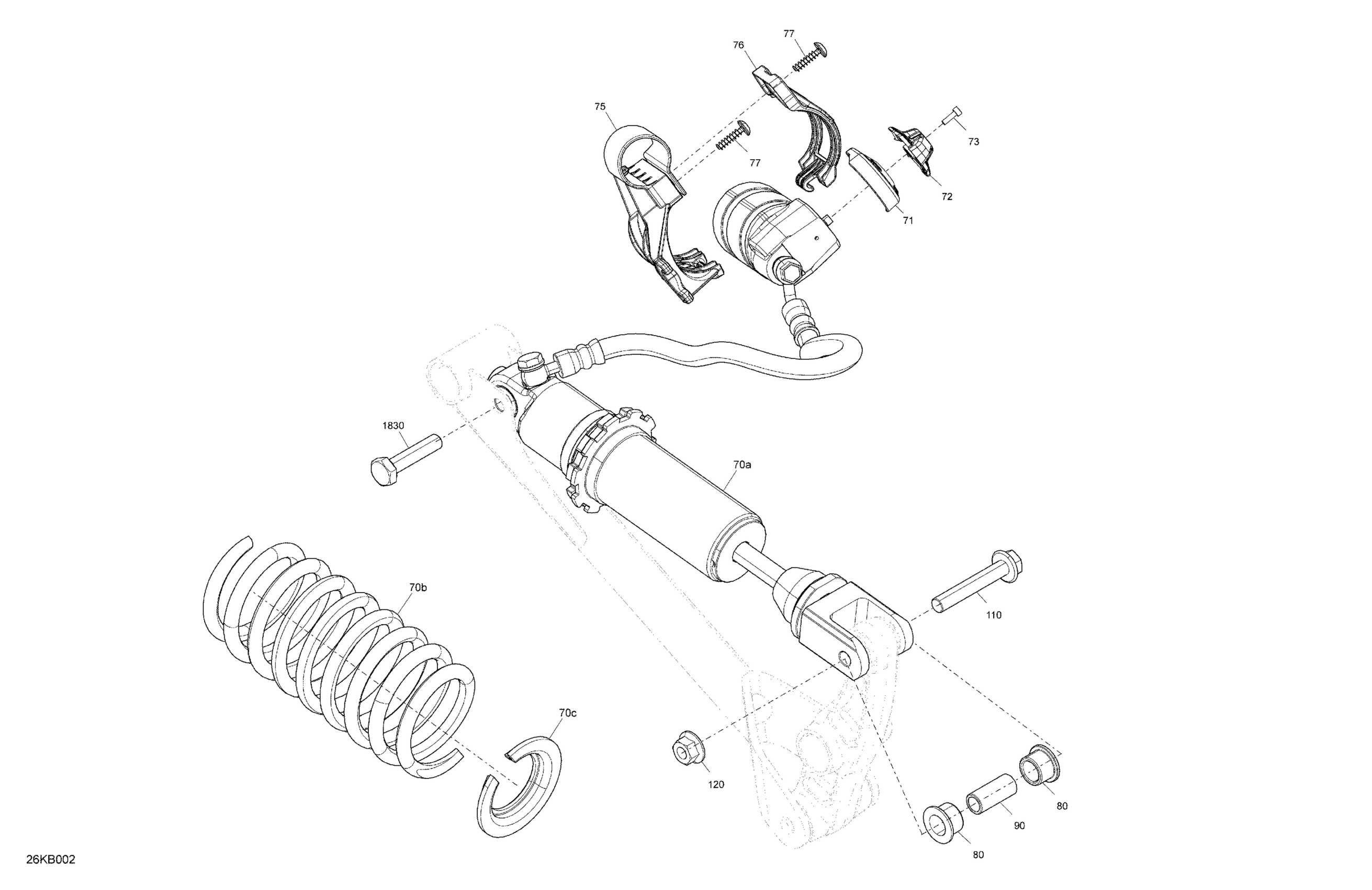

Can-Am RYKER S 900 ACE - 2022 Suspension - Rear Shock Diagram

Description

Price

70a

Rear Adjustable Shock Absorber

706004665

$434.00

70b

Compression Spring

706004535

$50.00

70c

Spring Stopper

706000567

$15.35

Gauge

706004533

$3.00

Adjustment Button

706004415

$3.00

Allen Screw M3 X 0.5 X 10

250000644

$1.74

Support Shock Absorber Tank Interior

706003311

$4.00

Ext Tank Support Shock Absorber

706004531

$4.00

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Urethane Bushing

503189117

$6.88

Spacer

706002678

$4.00

110

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$5.00

120

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

1830

Hexagonal Screw M10 x 45

207204556

$3.00
