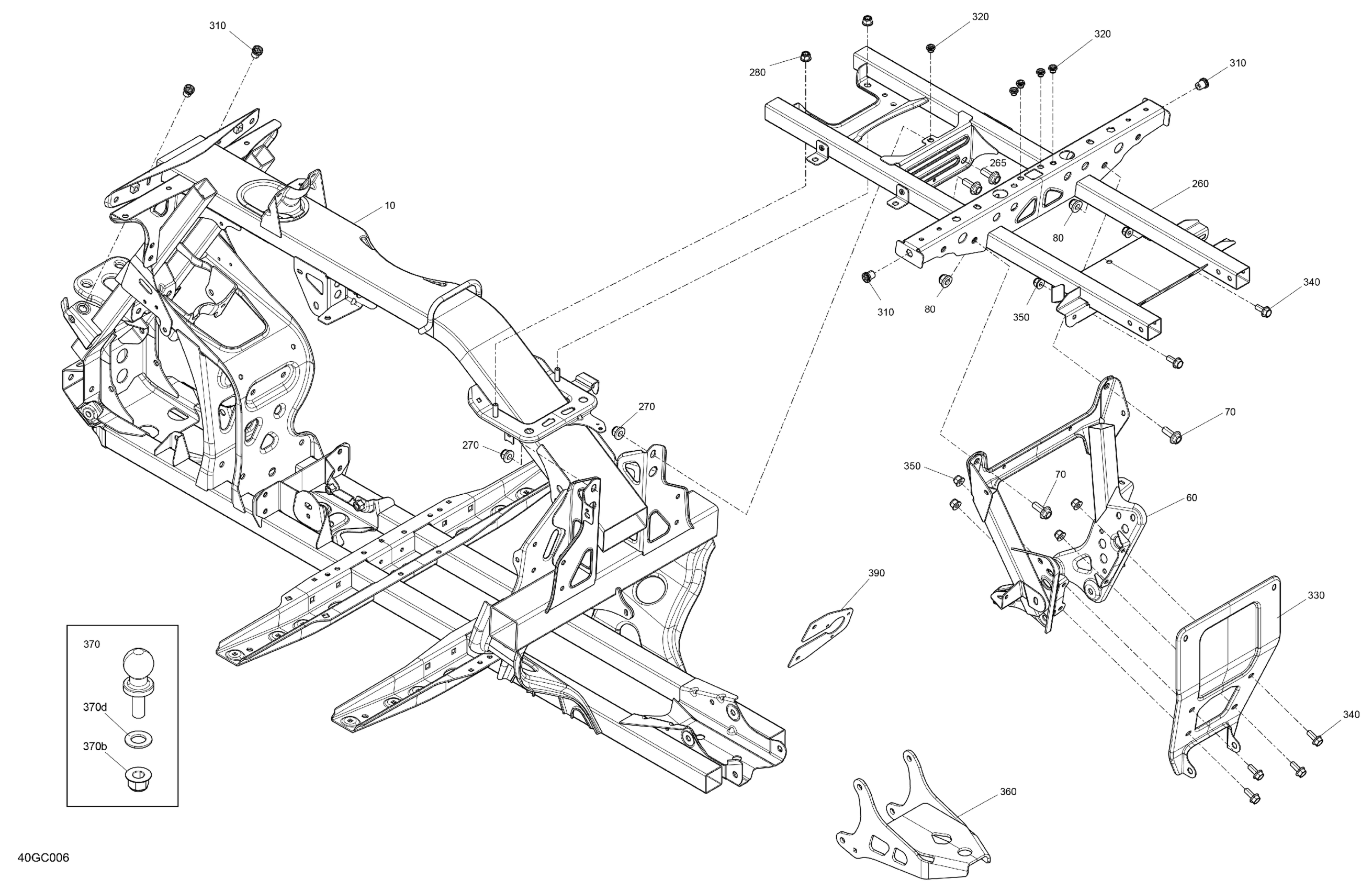

Can-Am Outlander T 570 EFI - XU - T Regulation, 2023 Frame - System Diagram

Description

Price

Chassis

705210815

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$1.74

Hex. Flange Elastic Nut M10

233201436

$1.74

260

Chassis Extension

705210819

$159.99

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Insert Half Hex Body M6 x 1.0

250100199

$2.54

330

Rear Support

705203541

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25

360

Black, Trailer Hitch

705206592

$50.74

370

Ball Coupling 50 MM Ass'y | Includes 370 to 370d

705208129

$106.12

370b

Elastic Flange Nut M20

250100104

$9.71

370d

Flat Washer

250200163

$3.40

390

Trailer connector Support

705206416

$6.99
