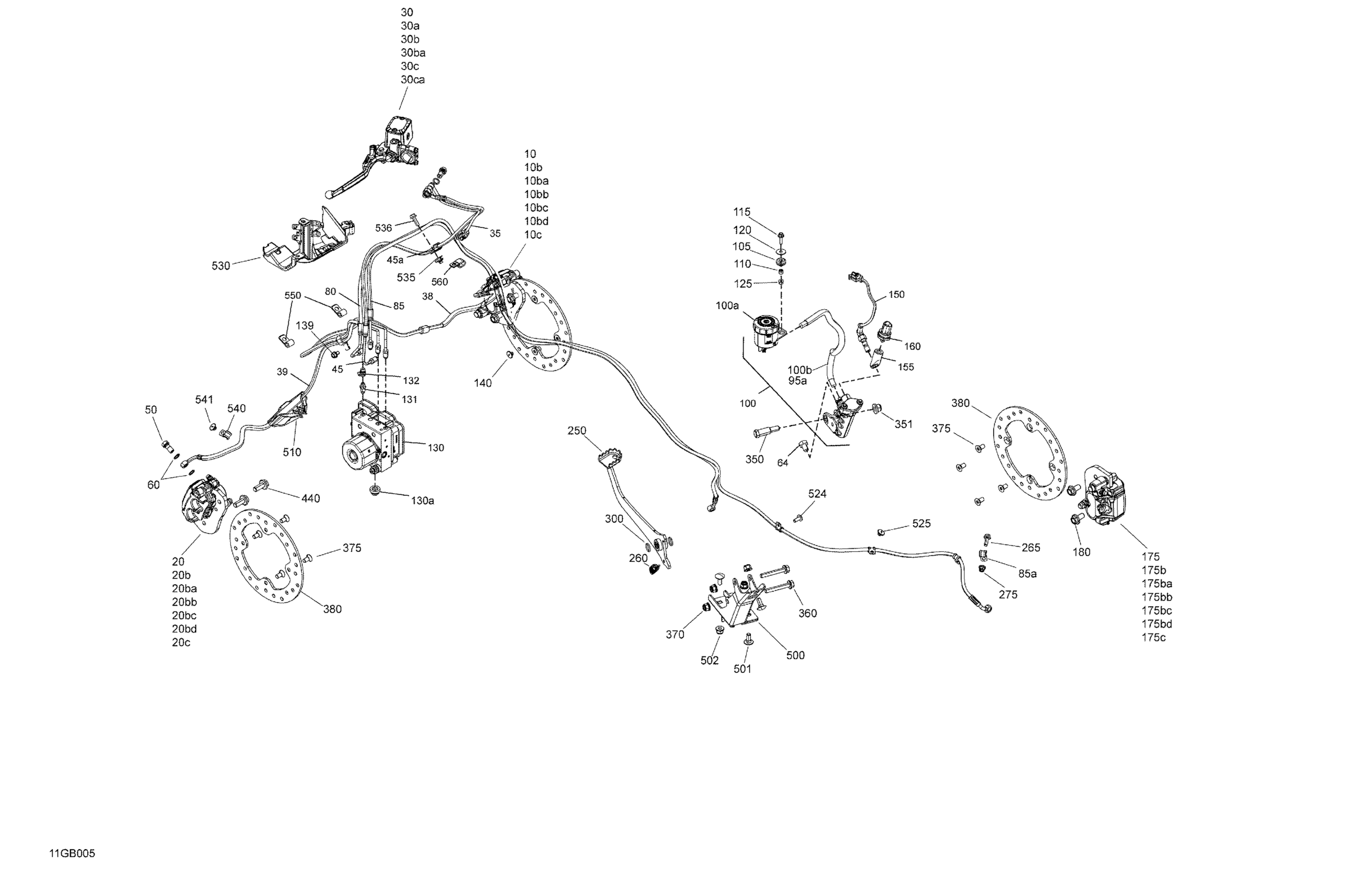

Can-Am Outlander T 570 EFI - XU - T Regulation, 2022 Mechanic - Brake System Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Model XMR

703500967

$279.07

10b

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$214.15

10ba

RH Organic Brake Pad Kit

705601014

$39.52

10bb

Pin Set

705601016

$9.26

10bc

Bleeding Screw

705601017

$5.90

10bd

Retaining Spring

705601018

$7.55

10c

RH Metallic Brake Pad Kit | Model XMR

715900249

Unavailable

20

LH Front Caliper Ass'y | Model XMR

703500968

$279.07

20b

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$214.15

20ba

Pin Set

705601016

$9.26

20bb

Bleeding Screw

705601017

$5.90

20bc

Retaining Spring

705601018

$7.55

20bd

LH Organic Brake Pad Kit

705601015

$39.52

20c

LH Metallic Brake Pad Kit | Model XMR

715900248

$48.48

30

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$202.21

30a

Lever Set

705601013

$57.43

30b

Clamp And Screw Kit

507032477

$22.36

30ba

Hex. Flange Screw M6 X 25

250000447

$2.00

30c

Cap Set

219800096

$20.12

30ca

Screw M4 X 20

415129356

$2.10

35

Brake Switch

705601669

$47.73

38

RH Front Hose

705601572

$52.21

39

LH Front Hose

705601573

$52.21

45

Brake Hose | Includes 45 to 45a

705601574

$44.75

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

60

Copper Washer

705601628

$4.21

64

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

80

Brake Hose

705601575

$64.90

85

RH Rear Hose | Includes 85 to 85a

705601576

$80.57

85a

Clamp

293650256

$4.36

95a

Tubing 10 MM 1000MM Long

219704407

$2.20

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$206.69

100a

Oil Tank

705601020

$35.79

100b

Oil Housing Hose

705601019

$14.43

105

Grommet

414036300

$2.22

110

Bushing

293900112

$9.30

115

Hex.Flange Screw M5 X 20

207652044

$1.56

120

Flat Washer

224060201

$1.12

125

Flange Elastic Nut M5

233251434

$1.66

130

VCM Module | Includes 130 to 130b

703500984

$1,379.07

130a

Shock Damper

710003279

$9.28

131

Bleeder Screw

705600502

$10.12

132

Bleeder Bolt Cap

705601190

$4.15

139

Hex. Flange Screw M6 X 16

210261640

$1.74

140

Pop Rivet 3/16"

390406500

$0.70

150

Dual Brake Switch

705601670

$47.73

155

Banjo Coupling

705601617

$35.04

160

Pressure Sensor

705601578

$70.87

175

RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR

703500969

$279.07

175b

RH Rear Brake Caliper | Includes 41 to 45

705602190

$213.40

175ba

Pin Set

705601016

$9.26

175bb

Bleeding Screw

705601017

$5.90

175bc

Retaining Spring

705601018

$7.55

175bd

RH Organic Brake Pad Kit

705601014

$39.52

175c

RH Metallic Brake Pad Kit | Model XMR

715900249

Unavailable

180

Hex. Flange Screw M10 X 20

207502046

$1.74

250

Deep Black, Brake Pedal

705602163

$138.03

260

Brake Pedal Spring

705600792

$8.42

265

Hex. Flange Screw M6 X 20

207662044

$1.66

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

O-Ring

293300144

$3.79

350

Shoulder Screw M10

250000513

$5.54

351

Hex. Flange Elastic Nut M10

233201436

$1.74

360

Hex. Flange Screw M8 X 55

207685544

$4.41

370

Hex. Flange Elastic Nut M8

233281414

$1.14

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

380

Disc Brake

705600999

$83.55

440

Hex. Flange Screw M10 X 25

207502546

$1.74

500

Brake Pedal Bracket

705202000

$35.04

501

Carriage Bolt, M8 X 20

207782044

$1.56

502

Hex. Flange Elastic Nut M8

233281414

$1.14

510

Front Hose Guard

705602016

$4.19

524

Torx Screw M6 X 16

250000755

$0.72

525

Pop Rivet 3/16"

390402400

$0.25

530

Front Hose Bracket

705600983

$11.81

535

Panel Nut M6 X 1.0

250100198

$1.73

536

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

540

Open Clamp

518321570

$5.85

541

Pop Rivet 3/16"

390402300

$0.73

550

Clamp

293650219

$0.81

560

Clamp

293650220

$0.81
