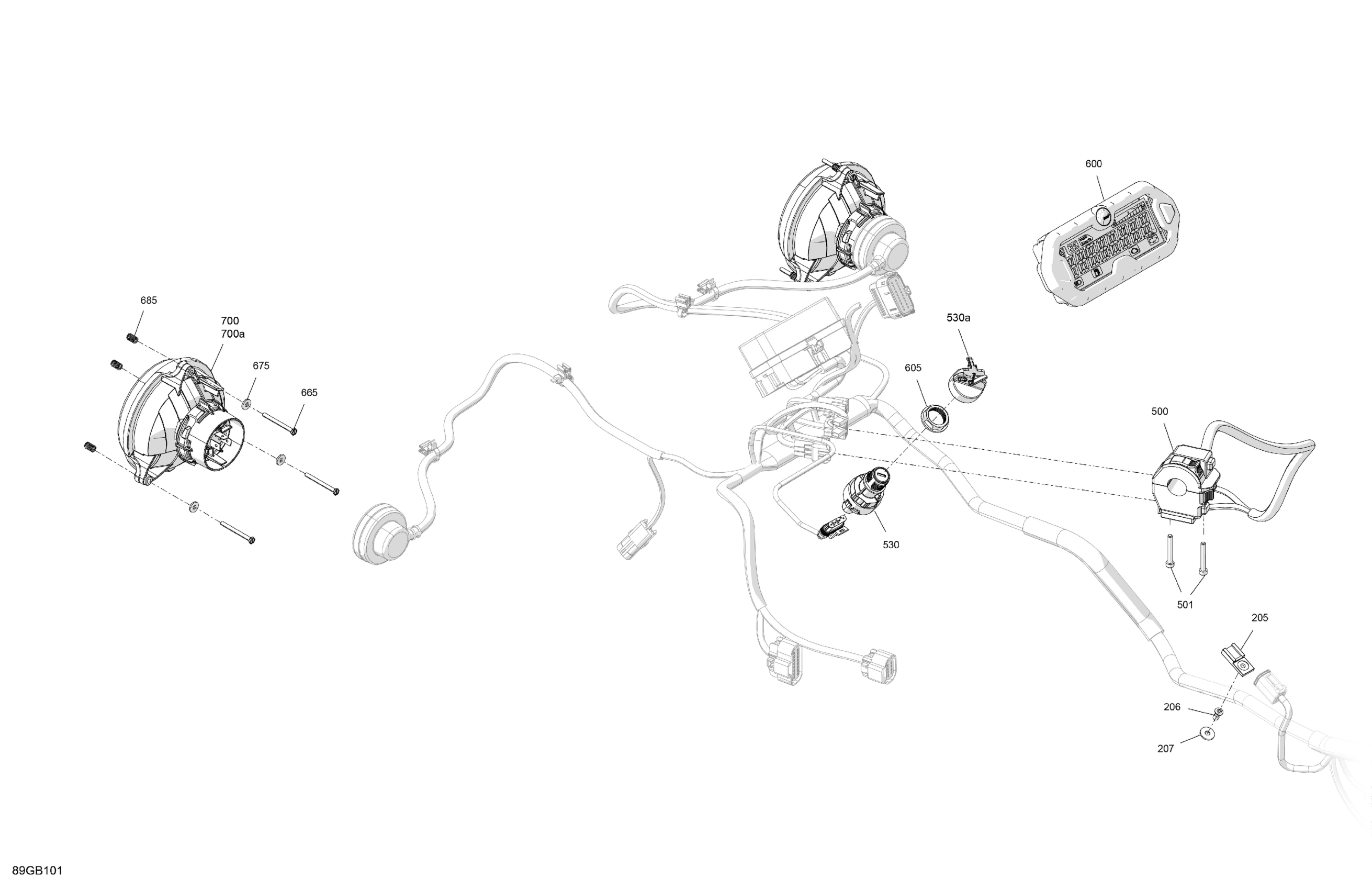

Can-Am Outlander 450 EFI - STD - 2022 Electric - Front Section Diagram

#

Description

Price

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

Unavailable

207

Washer | DS 650 X

391301600

Unavailable

500

Multifunction Switch

710008887

Unavailable

501

Socket Head Screw M5 X 35

205053588

Unavailable

530

Ignition Switch | Includes 530 to 530a

710008938

Unavailable

530a

Blank Ignition Key

715900934

Unavailable

590

VIP / Flex Wiring Harness Adaptor | Not Shown

710006072

Unavailable

600

Multifunction Gauge

710008704

Unavailable

605

Specialized Nut

710007923

$2.05

665

Hex. Screw K40 X 45

250000718

Unavailable

675

Flat Washer

517225900

$0.17

685

Spring

517168600

Unavailable

700

Low Beam

710003900

Unavailable

700a

Bulb, 12V 35/35W

710000871

Unavailable
