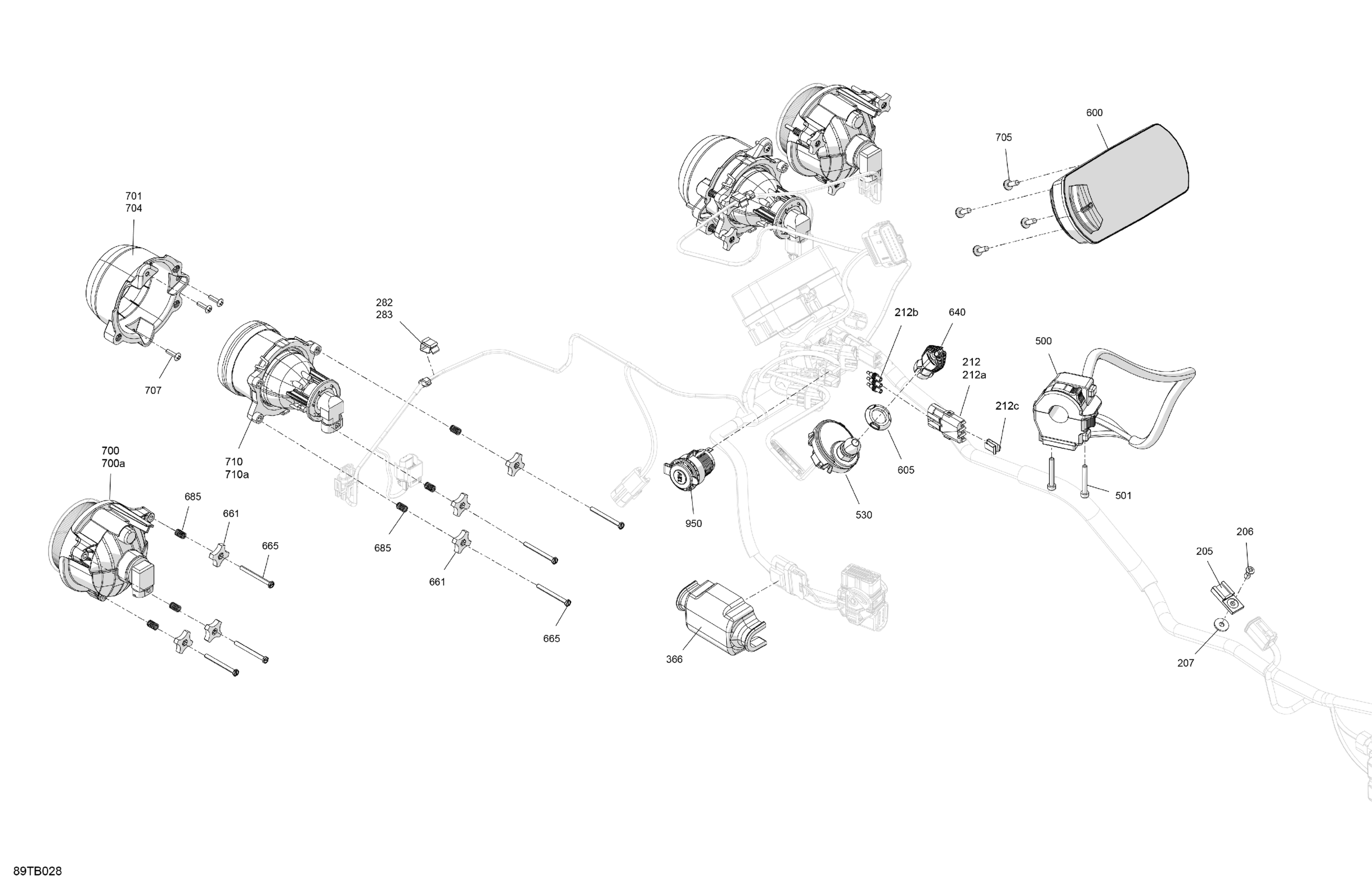

Can-Am Outlander MAX 1000R EFI - DPS - CE, 2022 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

Unavailable

207

Washer | DS 650 X

391301600

Unavailable

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

212b

Wire Seal

278000216

Unavailable

212c

Clip

710000992

$4.00

282

Clip

710010204

Unavailable

283

Clip

710010204

Unavailable

366

Soft Protection Sleeve

710007255

Unavailable

500

Switch Handle

710006134

Unavailable

501

Socket Head Screw M5 X 35

205053588

Unavailable

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Gauge Compact Mono

710008108

Unavailable

605

Specialized Nut

278004274

Unavailable

640

Grey Key RFID | Except Model Europe, Except T3

710004964

Unavailable

661

Handle

572106600

Unavailable

665

Hex. Screw K40 X 45

250000718

Unavailable

685

Spring

517168600

Unavailable

700

Low Beam | Includes 54 to 55

710006177

Unavailable

700a

Bulb 12V 55W

715900141

Unavailable

701

RH High Front Housing

710002291

Unavailable

704

LH High Front Housing

710002292

Unavailable

705

Torx Screw K50 X 16

250000720

$1.39

707

Phillips Screw K40 X 16

250000723

Unavailable

710

High Beam Ass'y | Includes 11 to 12

710002525

Unavailable

710a

Halogen Bulb

415129249

Unavailable

950

DC Outlet

710001248

$31.17
