Description

Price

1

Throttle Cable

0687-253

$43.82

2

Circlip

0123-231

$1.53

3

Screw 5/8 #8

2623-233

$3.18

4

Throtthe Handle Ass'y

0609-055

$99.97

5

Decal RH Control

7621-024

$3.09

6

Throttle Housing

1609-002

$84.58

7

Decal Engine Stop Switch

0611-022

$3.58

8

Kill Switch

0609-007

$19.20

9

12 Watt Heated Film

0609-993

$40.74

10

Brake Caliper Ass'y

3602-070

$124.58

11

Brake Pad Kit

3602-071

$81.95

12

Brake Light Switch

3602-073

$128.95

13

Lever With Parking Lock

3602-075

$72.95

14

Master Cylinder Ass'y

3602-076

$159.95

15

Screw M6 X 1.0 X 16

8476-616

$0.50

16

Hex Flange Elastic Nut M6X1.0

8427-602

$0.20

17

Choke Cable (200)

0687-254

$28.95

18

Choke Cable Nut

0687-181

$1.78

19

Ignition Switch

0609-029

$35.95

20

Safety Nut

0609-111

$2.58

21

Ignition Key

0116-065

$9.89

22

Decal Ignition Choke

5621-091

$33.82

23

Strater Rope Grommet

0608-791

Unavailable

24

Snap Ring 7/8 EXT. X .086

1423-111

$2.18

25

Brake Fluid Dot 4

3602-074

$62.99

26

Lock Washer 5/16 EXT. Tooth

8053-242

Unavailable

27

Brake Hoses Kit (Upper / Lower)

3602-072

$47.66

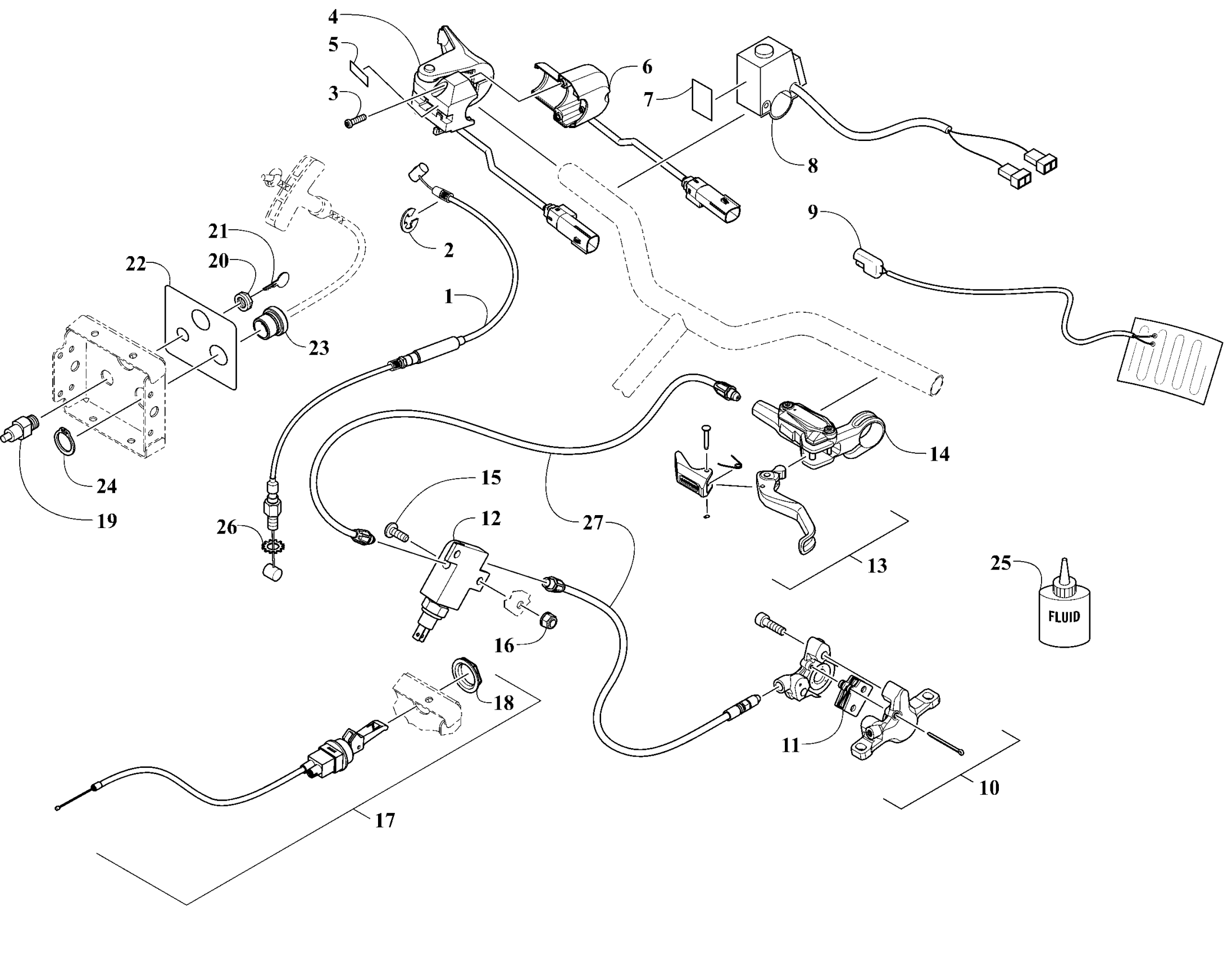

Ski-Doo MXZ 200 - Europe, 2023 Controls Diagram
