Description

Price

29

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

32

External Serrated Lock Washer 6 mm

234461608

$0.92

33

Elastic Stop Nut M6

232561414

$1.55

40

Hex. Flange Elastic Nut M6

233261494

$1.26

50

Starter Wiring Harness

710006022

$69.20

60

Junction Wiring Harness

710007036

$92.28

70

Screw PT Type K-50 X 16

250000959

$1.74

250

Screw M4 X 16

250000725

$2.87

300

Main Wiring Harness Long | Includes 300 to 300c

710006660

$876.89

300d

3-Positions Pole

710004825

$16.89

300e

Junction Block Cover

710006610

$23.05

301

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

302

Panel Nut M6 X 1.0

250100198

$1.73

310

Rear Wiring Harness

710006424

$27.66

310

Rear Wiring Harness

710006424

$27.66

315

LH Rear Wiring Harness

710006808

$110.74

740

LH Tail Light

710004743

$129.20

742

RH Tail Light

710004744

$129.20

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Rubber Pad

293830126

$11.01

910

Fixation Plate

710004788

$9.77

915

Fixation Plate

710004789

$6.92

920

Stopper Rubber

705014429

$6.09

925

Insert Half Hex Body M6 x 1.0

250100199

$2.54

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

927

Flat Washer 6 mm

234062410

$0.64

930

Voltage Regulator

710005842

$159.87

931

Bracket

710005782

$11.00

932

Elastic Stop Nut M6

232561414

$1.55

935

Battery Cable Cap

710006471

$2.75

1400

Starter Relay

278003012

$35.07

1403

Elastic Stop Nut M6, Brass

232561200

$3.51

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1405

Panel Nut M6 X 1.0

250100198

$1.73

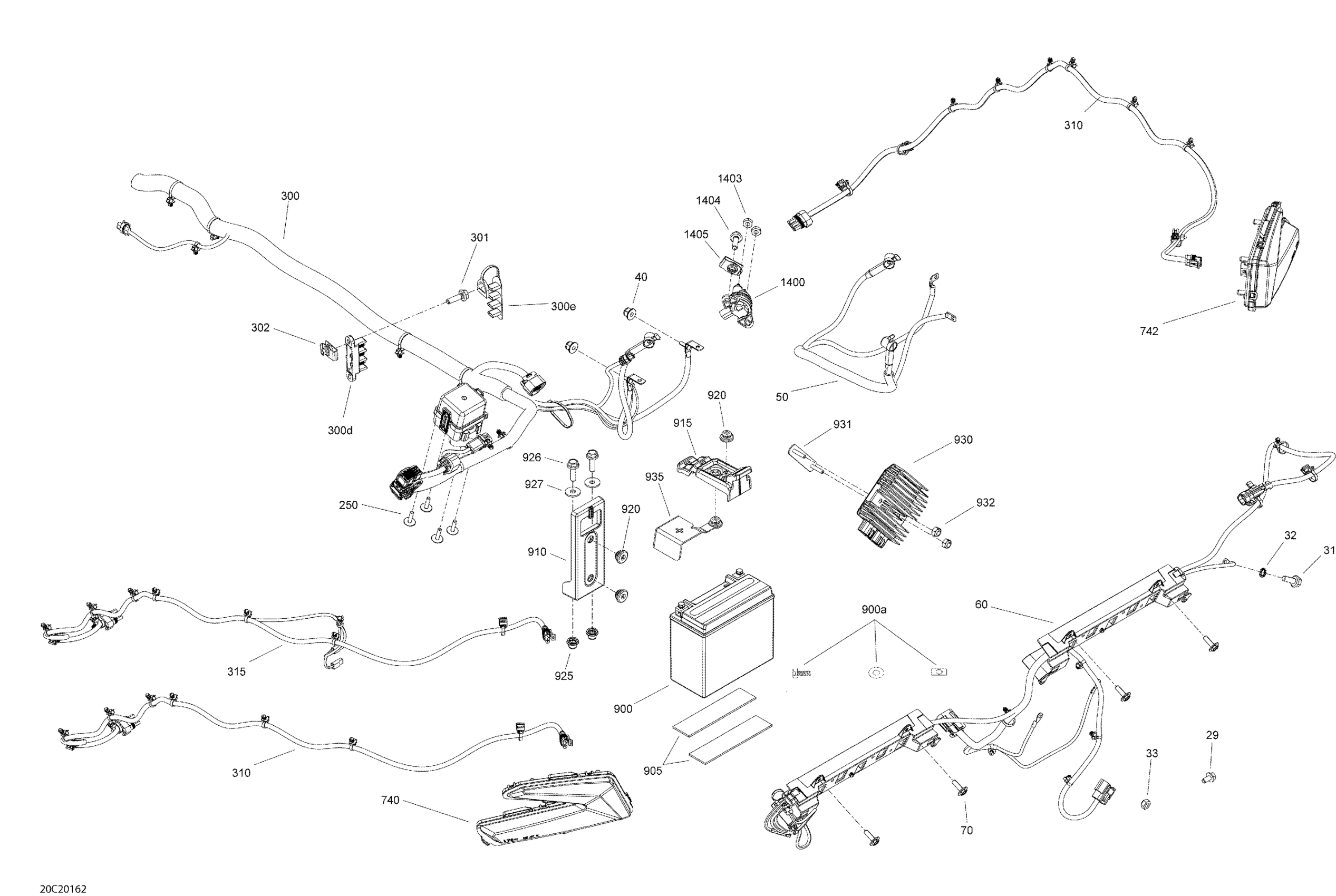

Can-Am Maverick MAX Turbo - 2020 Electric - System - Rear Section Diagram
