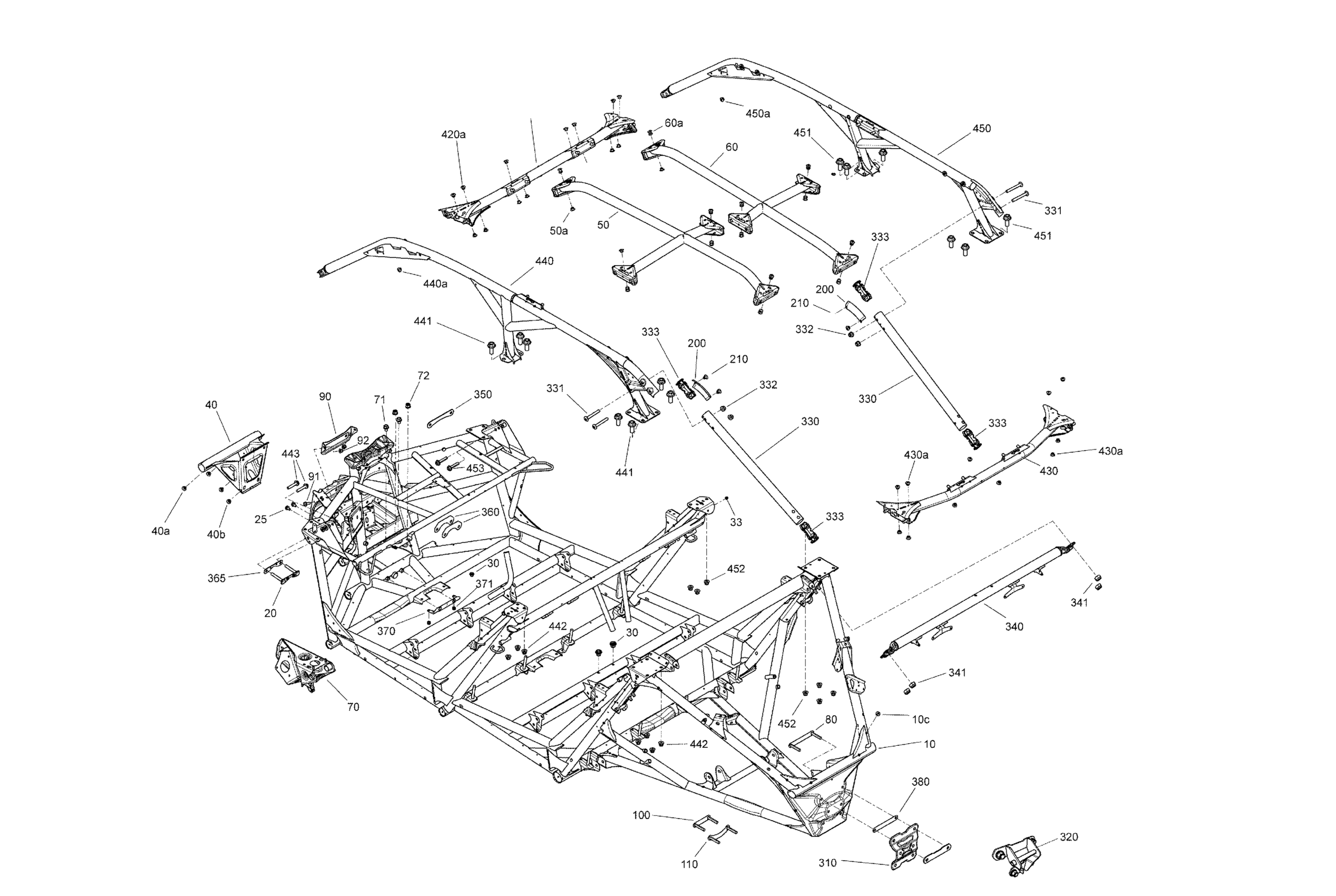

Can-Am Maverick MAX Turbo - 2020 Frame Diagram

#

Description
Price

10

Black, Frame Kit

715009106

$3,359.99

10c

Pop Rivet 3/16"

390402200

$0.26

20

Front Plate

705207424

$18.43

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

33

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40

Deep Black, Front Bumper | Except Model Gold

705210400

$101.51

40a

Pop Rivet 3/16"

390402200

$0.26

40b

Pop Rivet 3/16"

390402200

$0.26

50

LH Added Cage | Except XRSDPS Package, Liquid Gold

705206251

$91.99

50a

Pop Rivet 3/16"

390402200

$0.26

60

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

60a

Pop Rivet 3/16"

390402200

$0.26

70

DPS Support

705206924

$66.12

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

80

Rear Upper Plate

705206852

$19.20

90

Stifner Plate

705206877

$28.43

91

Hex. Flange Screw M6 X 16

207661654

$1.74

92

Hex. Flange Elastic Nut M6

233261494

$1.26

100

Rear Central Plate

705211558

$17.66

110

Rear Plate

705206854

$19.20

200

Black, LH Link Plate | Except Model Gold

705205926

$23.82

210

Rivet 3/16"

293150102

$0.71

310

Rear Plate

705205750

$23.82

320

Black, Rear Attachement Hook

715004450

$89.97

330

Deep Black, Rear Pillar

705210066

$24.99

331

Torx Truss M8 X 65

250000901

$1.56

332

Elastic Flange Nut M8

250100025

$1.25

333

Sleeve

705210648

$9.29

340

Safety Belt Anchorage

705210001

$119.97

341

Elastic Stop Nut M12

232521416

$1.40

350

Connecting Plate

705211552

$4.95

360

Retaining Plate

705210249

$4.86

365

Front Plate | Package STD

705207438

$2.69

370

Support

706203122

$11.00

371

Pop Rivet 3/16"

390402200

$0.26

380

Front Upper Plate

705206069

$13.49

420

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

420a

Pop Rivet 3/16"

390402200

$0.26

430

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

430a

Pop Rivet 3/16"

390402200

$0.26

440

Black, LH Cage Kit

715008450

$629.99

440a

Pop Rivet 3/16"

390402200

$0.26

441

Hex Flange Nut m12

233121466

$0.68

442

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

443

Flange Screw M12 X 60

250000857

$6.08

450

Black, RH Cage Kit

715008464

$629.99

450a

Pop Rivet 3/16"

390402200

$0.26

451

Hex Flange Nut m12

233121466

$0.68

452

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

453

Flange Screw M12 X 60

250000857

$6.08
