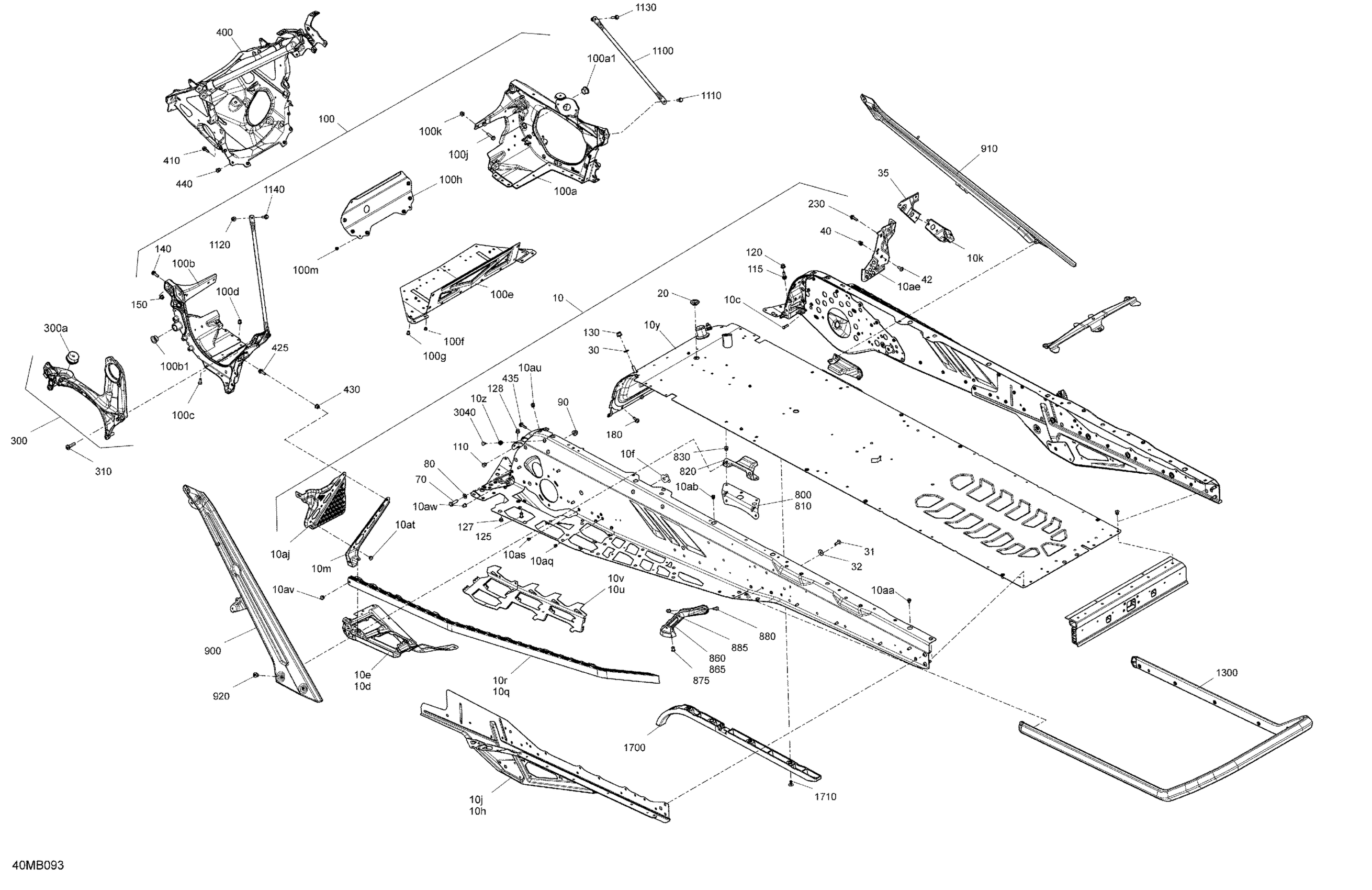

Ski-Doo EXPEDITION XTREME 850 E-TEC, Europe, 2022 Frame - System Diagram

#

Description
Price

10

Northern Lichen, Chassis Tunnel Module 154" | Includes 10 to 10aw

518333197

Unavailable

10c

Clinch Stud M6 X 20

250300027

$1.92

10d

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10e

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10f

Front Suspension Arm Reinforcement

518335959

Unavailable

10h

RH Rear Suspension Support

518332254

$102.28

10j

LH Rear Suspension Support

518332253

$102.28

10k

RH Footrest Reinforcement

518329789

$18.43

10m

Deep Black, LH Chassis Reinforcement

518332924

Unavailable

10q

RH Roller

518329648

$180.74

10r

LH Roller

518328452

Unavailable

10u

RH Tunnel Liner

518329646

$33.05

10v

LH Tunnel Liner

518329647

$33.05

10y

Radiator Tunnel Ass'y 154

518332622

$693.05

10z

Clinch Nut M6 Hexsert

605636003

$4.12

10aa

Insert

293450275

Unavailable

10ab

Clinch Nut M6 Hexsert

605636003

$4.12

10ae

RH Footrest

518331822

$23.05

10aj

LH Footrest

518332978

Unavailable

10aq

Avex Rivet

390909100

$0.29

10as

Avex Rivet

390909200

Unavailable

10at

Hemlock Rivet, 6.5 mm

293150096

$3.17

10au

Hemlock Rivet, 6.5 mm

293150119

$4.00

10av

Hemlock Rivet, 6.4 mm

293150174

$6.43

10aw

Collar Huck Magna-Grip 6.4

293150149

Unavailable

20

Black, Plug

293730052

Unavailable

30

Flat Washer M8

234081430

Unavailable

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

32

Flat Washer

224061201

Unavailable

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

Unavailable

42

Torx Head Screw M6 X 16

250000717

Unavailable

70

Hex Screw M8 X 30

250000942

Unavailable

80

Flat Washer 8 mm

234081410

Unavailable

90

Hex. Flange Elastic Nut M8

233281414

Unavailable

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

Unavailable

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

100a1

Leg Bushing

505072690

Unavailable

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

Unavailable

100b1

Leg Bushing

505072690

Unavailable

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

100d

Collar Huck Magna-Grip 6.4

293150149

Unavailable

100e

Bottom Plate

518332716

Unavailable

100f

Avex Rivet

390909100

$0.29

100g

Insert M5 X 0.8

293450268

Unavailable

100h

Front Member

518330100

$56.12

100j

Hex. Flange Screw M6 X 20

207662046

Unavailable

100k

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

100m

Avex Rivet

390909100

$0.29

110

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

115

Hex. Flange Screw M6 X 20

207662046

Unavailable

120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

125

Hemlock Rivet 6.5 mm

293150120

$7.23

127

Rivet 6,4 mm

293150173

$3.38

128

Hemlock Rivet, 6.5 mm

293150119

$4.00

130

Hex. Flange Elastic Nut M8

233281414

Unavailable

140

Hex. Flange Screw M6 X 20

207662046

Unavailable

150

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

180

Hex. Flange Screw M6 X 16

207661646

Unavailable

230

Hex. Flange Screw M6 X 20

207562056

Unavailable

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

Unavailable

400

Chassis Suspension Module

518334459

Unavailable

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

Unavailable

425

Hex. Flange Screw M6 X 20

207562056

Unavailable

430

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

435

Hex. Flange Screw M6 X 20

207562056

Unavailable

440

Hex. Flange Screw M6 X 16

207661646

Unavailable

800

LH Under Chassis Reinforcement

518331729

$11.12

810

RH Under Chassis Reinforcement

518331731

$18.43

820

Cross Member Support

518331733

$30.74

830

Hemlock Rivet, 6.5 mm

293150119

$4.00

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

Unavailable

875

Rivet

293150183

$2.06

880

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

885

Collar Huck Magna-Grip 6.4

293150149

Unavailable

900

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$108.43

910

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329974

Unavailable

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

Unavailable

1120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1130

Hex. Flange Screw M6 X 25

207662556

Unavailable

1140

Hex. Flange Screw M6 X 20

207662046

Unavailable

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$109.20

1700

Front Protector

518329982

Unavailable

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
