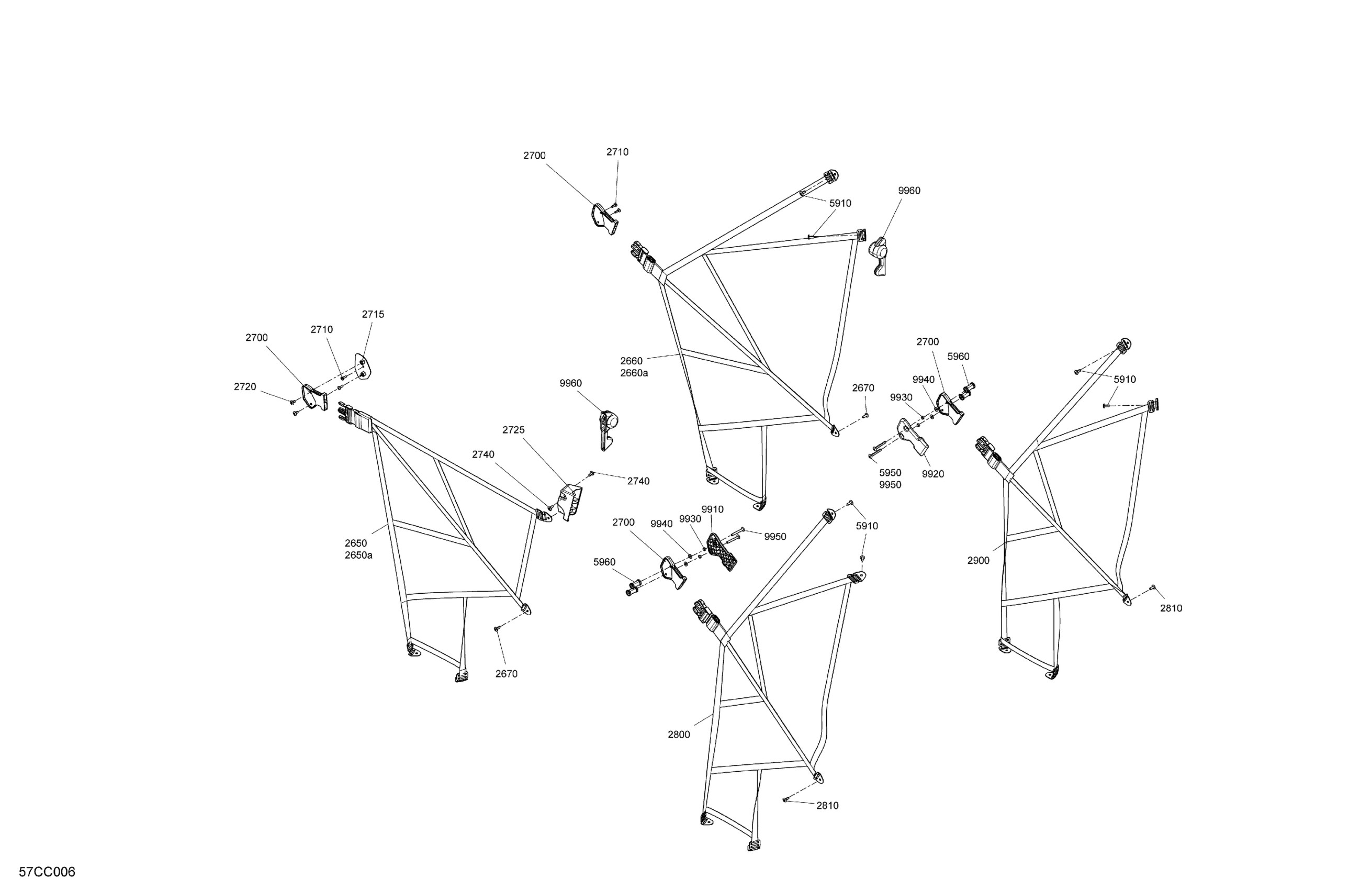

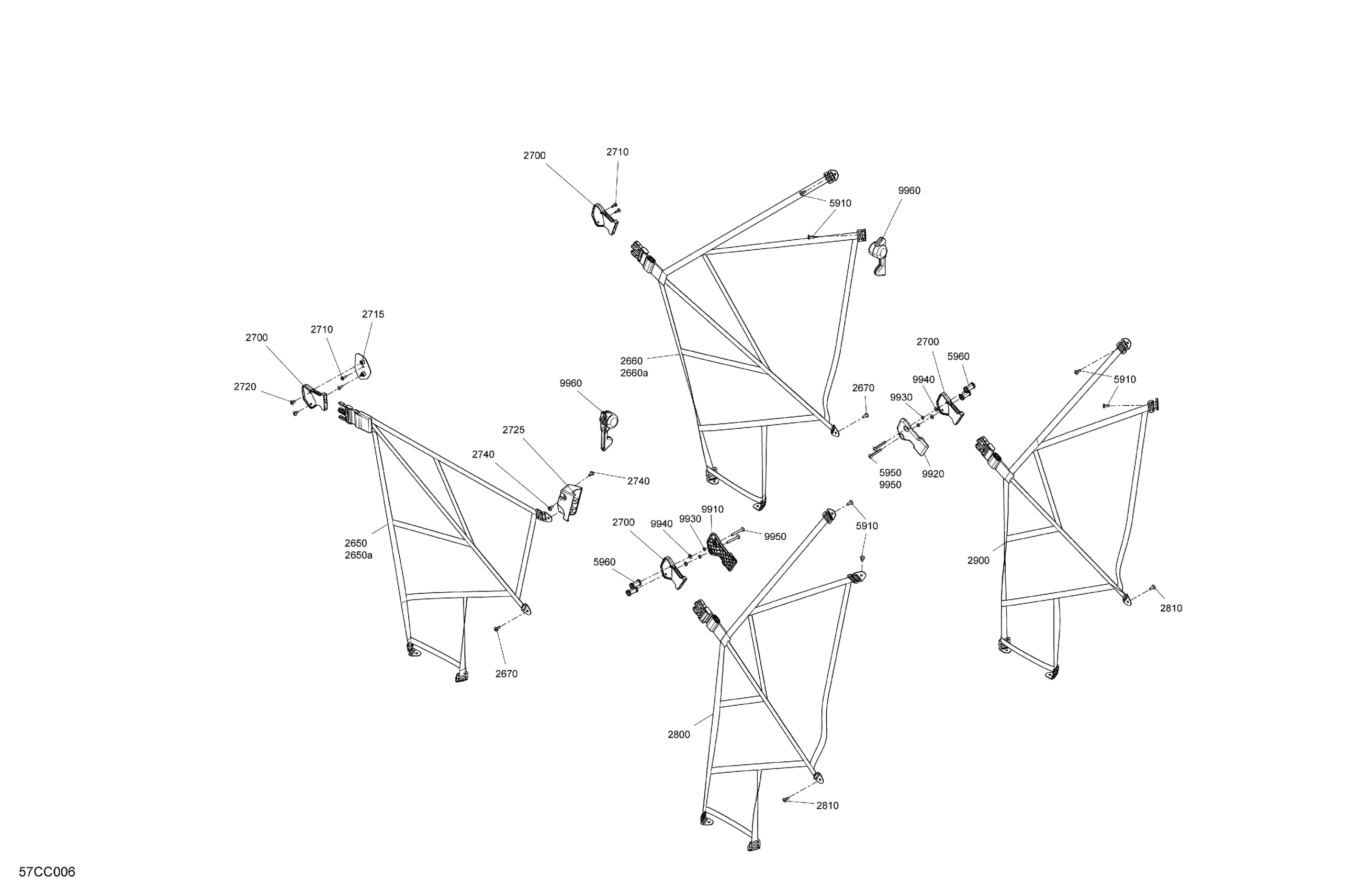

Can-Am Traxter MAX HD10 - XU - T Regulation, 2023 Cab Interior - Safety Net Diagram

Description

Price

2650

LH Front Protection Net

707900671

$207.66

2650a

Upper Link

707900049

$41.51

2660

RH Front Protection Net | Includes 2660 to 2660a

707900673

$175.35

2660a

Upper Link

707900049

$41.51

2670

Torx Screw M6 X 20

250000722

$1.34

2700

Safety Net Link

707900592

$4.98

2710

Torx Screw K50 X 16

250000720

$1.39

2715

Support

707900610

$11.54

2720

Torx Truss Screw M6 X 12

250000767

$1.66

2725

Net Anchor

707900609

$20.74

2740

Torx Truss M6X14

250000789

$4.41

2800

LH Rear Net Protection | Includes 2800 to 2800a

707900674

$207.66

2810

Torx Screw M6 X 20

250000722

$1.34

2900

RH Rear Net Protection | Includes 2900 to 2900a

707900675

$207.66

5910

Torx Head Screw M6 X 16

250000717

$1.74

5950

Torx Truss M6 X 50

250000868

$1.74

5960

Spacer

707900470

$2.31

9910

LH Rear Guard

707900815

$16.12

9920

RH Rear Guard

707900816

$16.12

9930

Bushing

708300737

$4.62

9940

Flat Washer

224061121

$0.44

9950

Torx Truss Screw M6 X 50

250000749

$3.11

9960

Guard CTRL

707900856

$15.22
