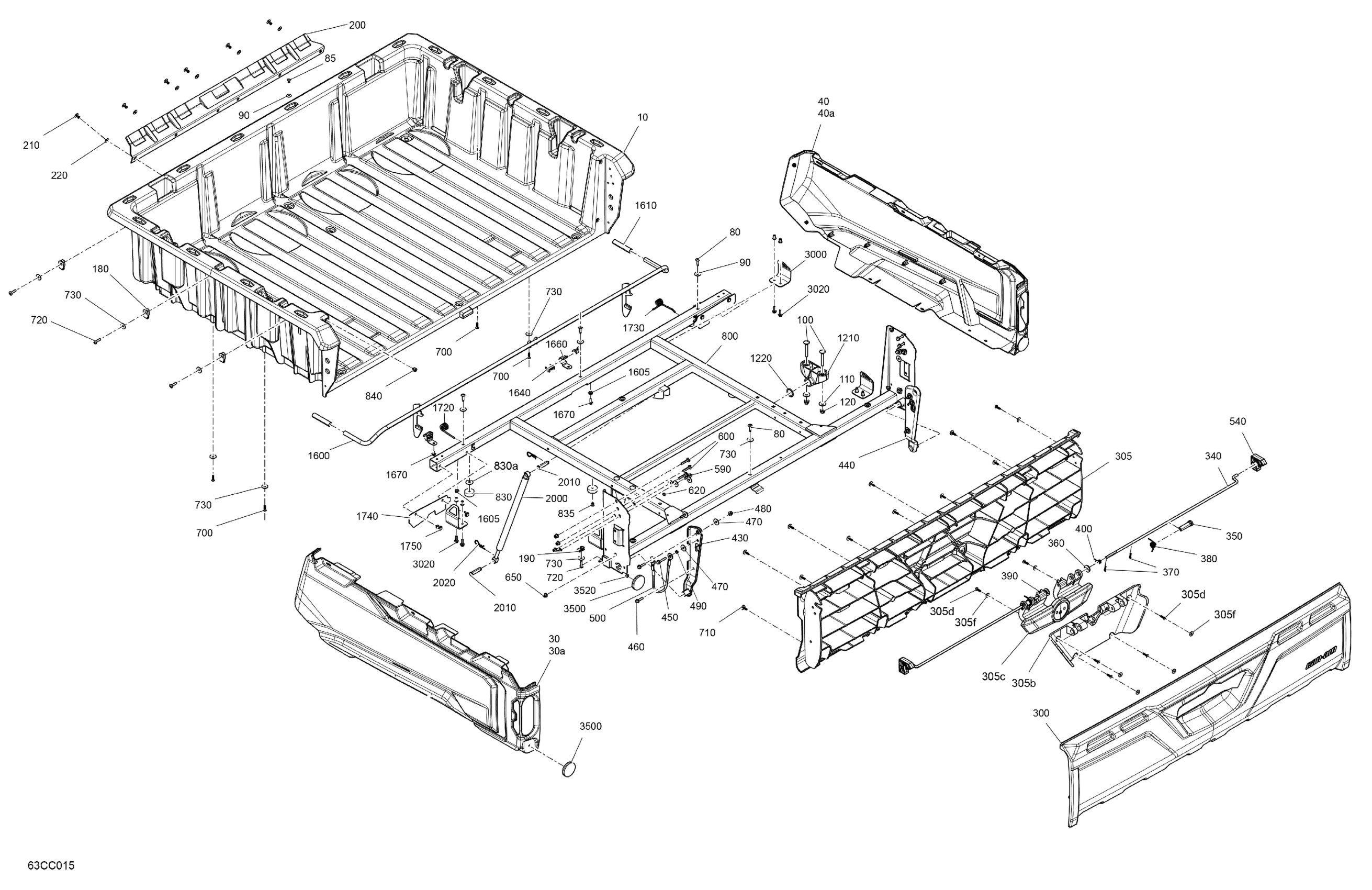

Can-Am Traxter MAX HD10 - XU - T Regulation, 2023 Body - Cargo Diagram

#

Description
Price

10

Interior Open Carrier Ass'y

715009086

$491.01

30

LH Exterior Panel | Includes 30 to 30a

708304330

$159.67

30a

LH Panel Exterior

708304328

$167.13

40

RH Exterior Panel | Includes 40 to 40a

708304331

$159.67

40a

RH Panel Exterior

708304329

$167.13

80

Torx Screw M6 X 25 | XT Models

250000728

$3.61

85

Pop Rivet 3/16”

293150108

$1.19

90

Flat Washer M6.6 X 22

250200162

$1.91

100

Carriage Bolt M8 X 60

207786044

$10.54

110

Flat Washer 8 mm

234082410

$1.11

120

Hex. Flange Elastic Nut M8

233281414

$1.14

180

Panel Nut M6 X 1.0

250100224

$1.70

190

Panel Nut M6 X 1.0

250100198

$1.73

200

Deflector

708302584

$13.99

210

Pop Rivet 3/16”

293150108

$1.19

220

Washer

517124300

$0.16

300

Outside Tailgate

708301227

$108.93

305

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

$325.34

305b

Handle Support

708302913

$24.60

305c

Handle

708302911

$23.10

305d

Torx Screw Truss Head K50X20 T20

250000760

$1.74

305f

Washer M5

250200025

$0.61

340

Handle Rod

708301500

$5.93

350

Bushing Hinge

708304564

$2.52

360

Washer

708301653

$2.03

370

Hairpin Cotter

269800431

$0.97

380

Spring

705009468

$4.43

390

Spring

705009470

$11.81

400

Spring

705009471

$11.81

430

LH Tailgate Support

708304219

$21.61

440

RH Tailgate Support

708304221

$26.09

450

Hex. Flange Screw M6 X 35

207663554

$1.74

460

Hex. Flange Screw M6 X 25

207662554

$1.43

470

Flat Washer M6.6 X 22

250200162

$1.91

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

490

Bushing

708300737

$4.43

500

Cable

708301491

$28.33

540

Latch Stopper

708304062

$8.93

590

Hex. Flange Screw M6 X 25

207662554

$1.43

600

Hex. Flange Screw M6 X 35

207663554

$1.74

620

Bushing

708300737

$4.43

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

700

Torx Screw Truss Head K50X20 T20

250000760

$1.74

710

Washer M5

250200025

$0.61

720

Torx Truss Screw M6 X 25

250000807

$1.74

730

Flat Washer M6.6 X 22

250200162

$1.91

800

Open Carrier Frame Kit

703501215

$314.15

830

Rubber Stopper

708304601

$1.69

830a

Washer

224060251

$0.55

835

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

840

Rubber Bumper

293830005

$5.33

1210

Support Pivot

708303735

$15.64

1220

O-Ring

293300131

$4.94

1600

Latch Lever

708303712

$76.84

1605

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1610

Cap Latch Lever

708300358

$4.91

1640

Half Ring

705503570

$4.76

1660

Clamp Retainer

708301479

$3.07

1670

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

1720

LH Torsion Spring

708303190

$3.54

1730

RH Torsion Spring

708303191

$3.54

1740

Deflector

708303097

$9.03

1750

Tuflok Plastic Rivet

293150230

$1.21

2000

Gas Shock Absorber

715007129

$49.22

2010

Pin Clevis

250400098

$5.33

2020

Hair Pin

414575600

$1.51

3000

Retaining Plate

708301480

$7.93

3020

Hex. Flange Screw M6 X 20

207662054

$0.83

3500

Red, Reflector

705016982

$11.96

3520

Elastic Stop Nut M5

232551414

$0.72
