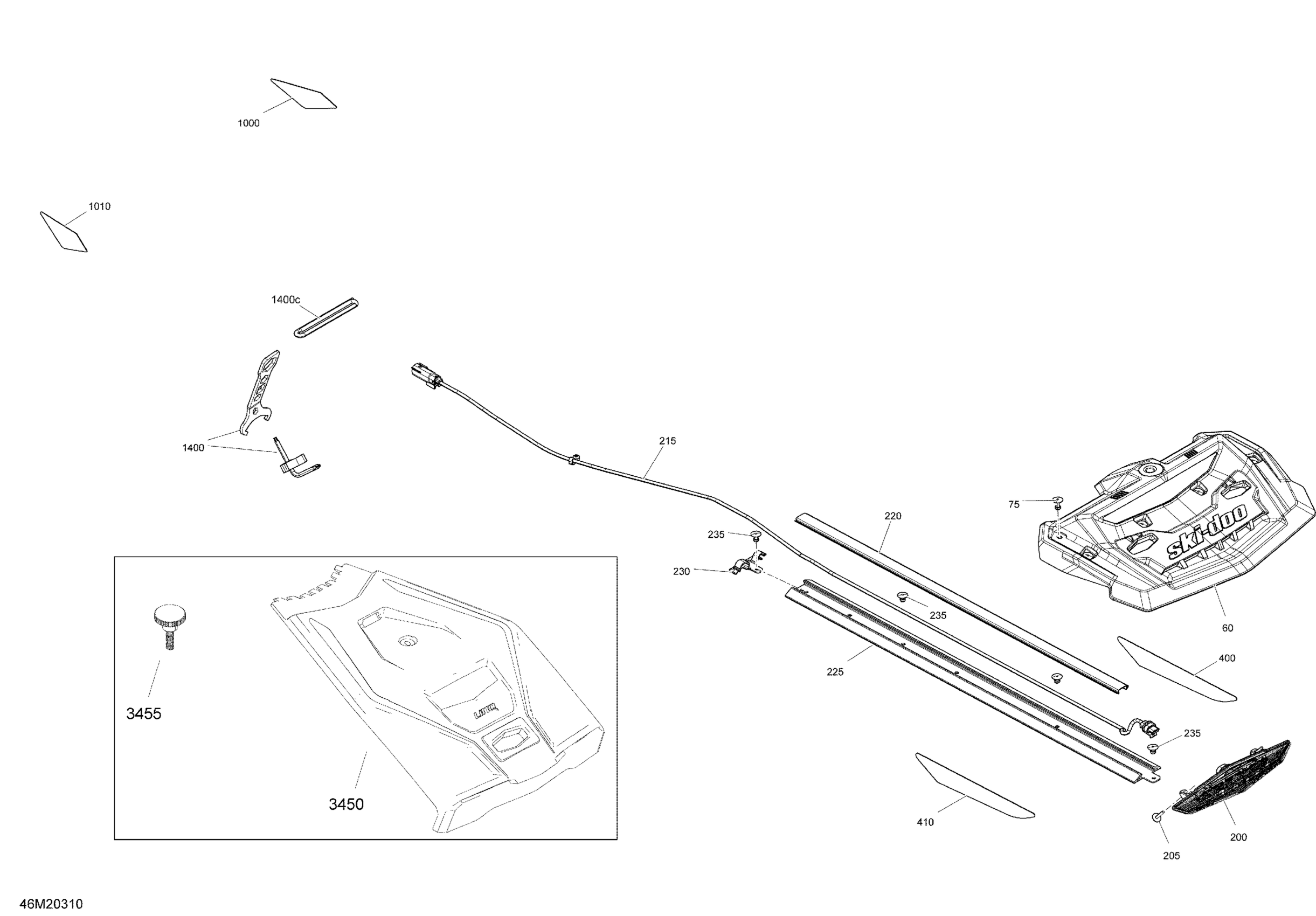

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Utilities Diagram

Description

Price

Snow Guard

520002051

$52.96

Pop Rivet 3/16"

293150100

$1.04

200

Rear Light

520001143

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

215

Rear Light Harness

515178267

$24.60

220

Extruded Trim

520002921

$20.12

225

Wire Protector

520001703

$17.88

230

Cap

520001722

$8.64

235

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400c

Rope Starter

529017500

$1.19

3450

Linq Plate

511001133

$14.55

3455

Knurl Screw M5 x 16

520002142

$32.81
